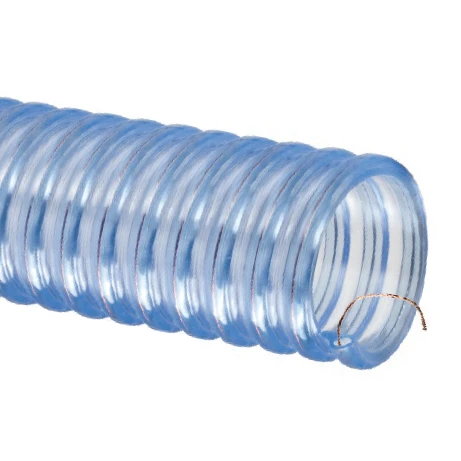

WE200X100 Tigerflex By Kuriyama | WE Series | Food Grade Material Handling Hose With Grounding Wire | 2″ ID | PVC | 100ft Length

Original price was: $310.00.Current price is: $95.99.

SKU: AG9ZZ 1487379398692 Category: Bulk Hose & Covers Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Material Handling Hose, Filter-All-Brand_Tigerflex, Filter-All-Series_WE Series, Filter-All-SpecialProperties_Ground Wire in Hose, Filter-All-SpecialProperties_Outer Helix Protection, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-All-Specifications and Approvals_Applicable USDA Requirements, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Clear/Semi-Clear, Filter-AllHose-CoverConstruction_PVC, Filter-AllHose-ID_2", Filter-AllHose-TubingConstruction_PVC, Filter-IndustrialHoseTubingJoints-OD_2.48", Food Grade, Industrial Hose Fittings, Industrial-hose, JD050523, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Tigerflex Thermoplastic Industrial Hoses, WE Series Food Grade PVC Material Handling Hose With Grounding Wire

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Pneumatic Conveying Equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC Tube
Reinforcement:	Rigid PVC Helix and Grounding Wire	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Superior Product Design – Tigerflex™ WE™ Series hoses are an industry standard for pneumatic material handling due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability. Food Grade Materials – Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. Convoluted Outer Cover – Provides increased hose flexibility Grounding Wire – Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It’s embedded within the rigid helix to prevent contamination of transferred materials.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
WE125X100	1-1/4″	32.0mm	1.65″	42.0mm	50 PSI	25 PSI	28in. Hg	28in. Hg	2″	100ft	0.33 lbs
WE125X50	1-1/4″	32.0mm	1.65″	42.0mm	50 PSI	25 PSI	28in. Hg	28in. Hg	2″	50ft	0.33 lbs
WE150X100	1-1/2″	38.1mm	1.93″	49.0mm	50 PSI	25 PSI	28in. Hg	28in. Hg	3″	100ft	0.43 lbs
WE150X50	1-1/2″	38.1mm	1.93″	49.0mm	50 PSI	25 PSI	28in. Hg	28in. Hg	3″	50ft	0.43 lbs
WE200X100	2″	50.8mm	2.48″	63.0mm	40 PSI	20 PSI	28in. Hg	24in. Hg	4″	100ft	0.58 lbs
WE200X50	2″	50.8mm	2.48″	63.0mm	40 PSI	20 PSI	28in. Hg	24in. Hg	4″	50ft	0.58 lbs
WE225X100	2-1/4″	57.2mm	2.80″	71.0mm	40 PSI	20 PSI	28in. Hg	24in. Hg	4.5″	100ft	0.65 lbs
WE225X50	2-1/4″	57.2mm	2.80″	71.0mm	40 PSI	20 PSI	28in. Hg	24in. Hg	4.5″	50ft	0.65 lbs
WE250X100	2-1/2″	63.5mm	3.07″	76.5mm	40 PSI	20 PSI	28in. Hg	24in. Hg	5″	100ft	0.89 lbs
WE250X50	2-1/2″	63.5mm	3.07″	76.5mm	40 PSI	20 PSI	28in. Hg	24in. Hg	5″	50ft	0.89 lbs
WE300X100	3″	76.2mm	3.64″	91.5mm	40 PSI	20 PSI	28in. Hg	24in. Hg	6″	100ft	1.25 lbs
WE300X50	3″	76.2mm	3.64″	91.5mm	40 PSI	20 PSI	28in. Hg	24in. Hg	6″	50ft	1.25 lbs
WE350X100	3-1/2″	88.9mm	4.27″	108.5mm	35 PSI	18 PSI	28in. Hg	24in. Hg	8″	100ft	1.55 lbs
WE350X50	3-1/2″	88.9mm	4.27″	108.5mm	35 PSI	18 PSI	28in. Hg	24in. Hg	8″	50ft	1.55 lbs
WE400X100	4″	101.6mm	4.72″	120.0mm	35 PSI	18 PSI	24in. Hg	20in. Hg	10″	100ft	1.93 lbs
WE400X50	4″	101.6mm	4.72″	120.0mm	35 PSI	18 PSI	24in. Hg	20in. Hg	10″	50ft	1.93 lbs
WE500X60	5″	127.0mm	5.74″	146.0mm	30 PSI	15 PSI	24in. Hg	20in. Hg	16″	60ft	2.40 lbs
WE500X50	5″	127.0mm	5.74″	146.0mm	30 PSI	15 PSI	24in. Hg	20in. Hg	16″	50ft	2.40 lbs
WE600X60	6″	152.4mm	6.81″	175.5mm	30 PSI	15 PSI	24in. Hg	20in. Hg	18″	60ft	3.70 lbs
WE600X50	6″	152.4mm	6.81″	175.5mm	30 PSI	15 PSI	24in. Hg	20in. Hg	18″	50ft	3.70 lbs
WE45MX60	1.77″	45.0mm	2.20″	55.8mm	45 PSI	25 PSI	28in. Hg	24in. Hg	4″	60ft	0.46 lbs
WE57MX60	2.24″	57.0mm	2.76″	70.0mm	40 PSI	20 PSI	28in. Hg	24in. Hg	4.5″	60ft	0.64 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground,
through the fitting or by other means.
