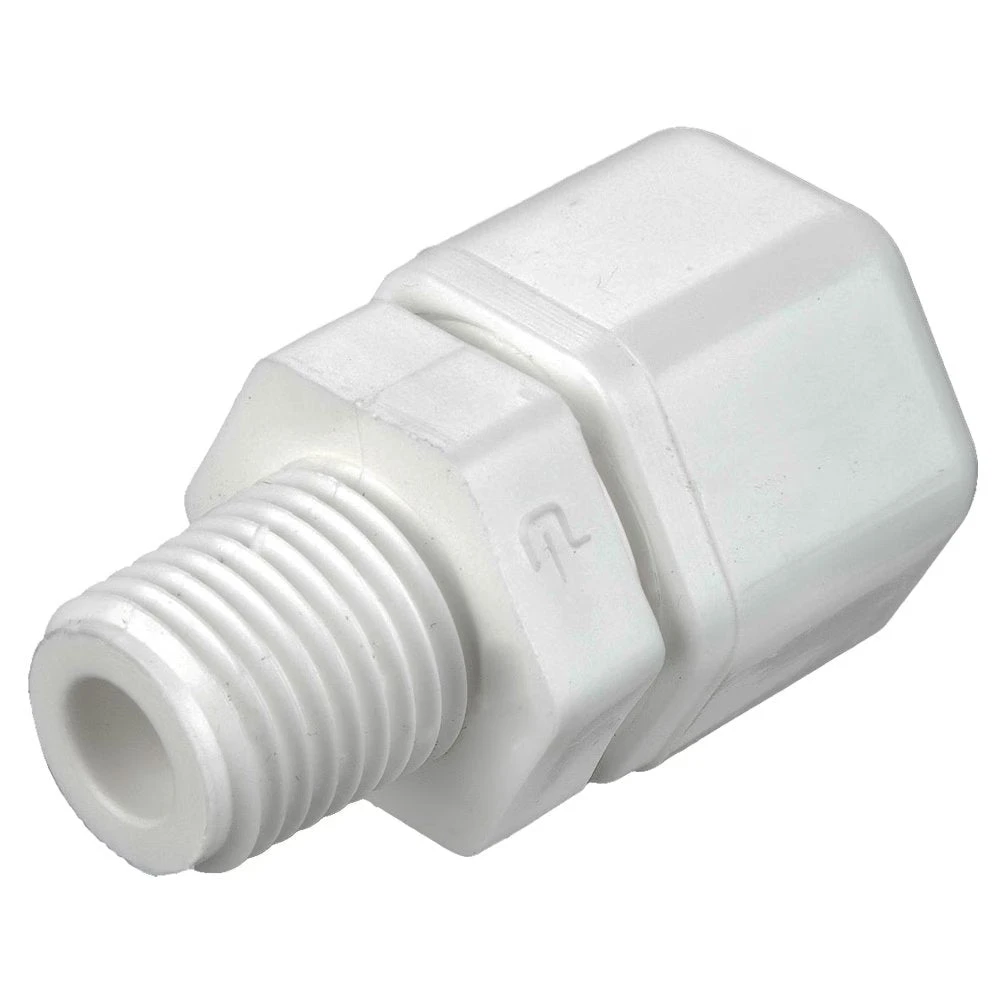

W8MC4 By Parker | Threaded Fitting | 1/2″ Tube Connector X 1/4″ Male NPTF Thread | 1″ Hex | 1.74″ Length | Straight | White | Polypropylene

Sale!

Product Features:

Available in black polypropylene and white nylon

White polypropylene available as a non-standard part

302 stainless steel grab ring

Nitrile O-ring

FDA compliant material

NSF/ANSI-51

Water Filtration

Beverage Dispensing

Life Science

Bottling

Semi-Conductor

Applications:

Water

End-of-Arm Tooling

Beverages

Food

Cooling Systems

Vacuum

Temperature Range:

0° to +200° F (-17.8° to +93.3° C)

Compatible Tubing:

Thermoplastic

Soft Metal

Glass

Original price was: $12.00.Current price is: $8.40.


Black Polypropylene Part Number	White Polypropylene Part Number	Natural Nylon Part Number	Nom. Tube O.D.	NPTF Thread Size	Hex (C)	Overall Length (L)	Flow Diameter (D)
P4MC2	–	N4MC2	1/4″	1/8″	11/16″	1.28″	.170″
P4MC4	–	N4MC4	1/4″	1/4″	11/16″	1.51″	.170″
P4MC6	W4MC6	N4MC6	1/4″	3/8″	11/16″	1.48″	.170″
P5MC2	–	N5MC2	5/16″	1/8″	11/16″	1.38″	.170″
P5MC4	–	N5MC4	5/16″	1/4″	11/16″	1.50″	.250″
P6MC2	–	N6MC2	3/8″	1/8″	13/16″	1.50″	.170″
P6MC4	W6MC4	N6MC4	3/8″	1/4″	13/16″	1.67″	.250″
P6MC6	W6MC6	N6MC6	3/8″	3/8″	13/16″	1.67″	.250″
P6MC8	W6MC8	N6MC8	3/8″	1/2″	1″	1.78″	.250″
P6MC12	–	N6MC12	3/8″	3/4″	1″	1.84″	.250″
P8MC2	–	–	1/2″	1/8″	1″	1.61″	.170″
P8MC4	W8MC4	N8MC4	1/2″	1/4″	1″	1.74″	.250″
P8MC6	W8MC6	N8MC6	1/2″	3/8″	1″	1.74″	.375″
P8MC8	W8MC8	N8MC8	1/2″	1/2″	1″	1.87″	.375″
P8MC12	W8MC12	N8MC12	1/2″	3/4″	1″	1.89″	.375″
P10MC2	–	–	5/8″	1/8″	1-1/8″	1.75″	.170″
P10MC4	–	N10MC4	5/8″	1/4″	1-1/8″	1.90″	.250″
P10MC6	–	N10MC6	5/8″	3/8″	1-1/8″	1.90″	.375″
P10MC8	W10MC8	N10MC8	5/8″	1/2″	1-1/8″	2.01″	.500″
P10MC12	W10MC12	N10MC12	5/8″	3/4″	1-1/8″	2.04″	.500″
