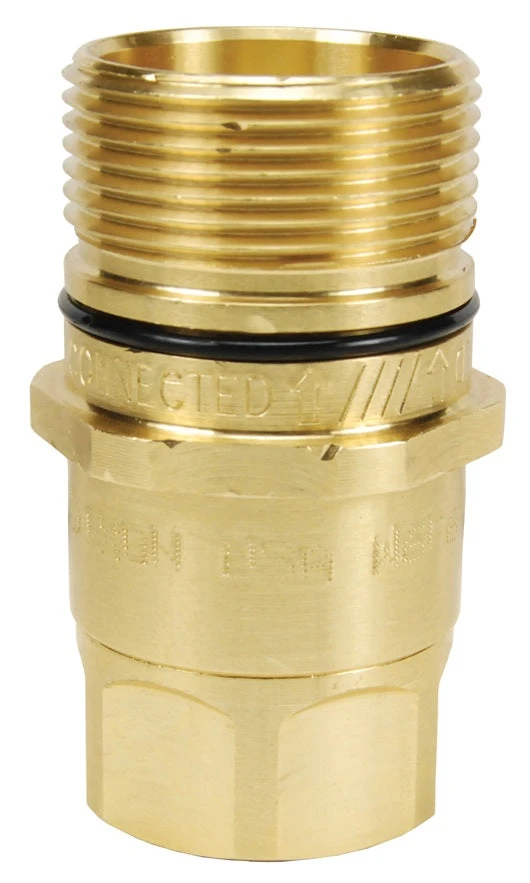

W12F12-B By Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | 1-1/2″ Female NPTF X 1-1/2″ Wingstyle Interchange | Plug | Nitrile Seal | Brass

Original price was: $105.13.Current price is: $73.59.

SKU: AG9ZZ 1478694338596 Categories: Adapters & More, Quick Disconnects w/o Barb Tags: 7800 Series Hydraulic Thread-to-Connect Fittings, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Collection-lvl3_Hydraulic Quick Disconnects, Dixon Hydraulic Fittings and Adapters, Dixon Valve and Coupling Products, Hydraulic Fittings, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Material_brass, Matrixify2nd50kProducts, Pl_hydraulic-quick-disconnects, Plugs, Quick-disconnects, TempQDFilter_Wing Nut, Thread-to-Connect Fittings

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Compatibility & Interchange:	Danfoss Eaton Aeroquip 5100-Series, Parker 6100-Series Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series
Features:	Full Hex – Ease of Installation. Vane Valve Guide – Improved Flow Performance. Compact Body Profile – Reduction of Side-Load Stress. O-Ring ‘Full-Connection’ Indicator – Improved Connection Efficiency. Swaged Valve Seal – Resistance to Flow Damage.
Construction:	Machined components are manufactured using solid steel and brass bar stock. Stainless steel retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome. Rugged steel wing nut for threaded connect and disconnect operation. For steel models, coupler valve sleeve and plug valve are constructed of brass.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). Couplings have a TPC-ET back-up ring on the main coupler valve sleeve to extend service life. Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection. Plug valve seal is crimped to improve seal integrity and prolong service life; 1-1/2″ has bonded plug valve. External O-ring on plug indicates full connection and acts as a contamination shield in connected mode. Redundant O-ring on the coupler body will engage plug for secondary sealing support.
Safety Notes:	Although wingstyle couplings are able to connect and disconnect while under pressure, it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety. If it is not possible to de-energize the circuit, operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk, once hydraulic power is applied during the connection process. W-series couplings are not recommended for continuous hydraulic impulse applications at rated pressures.
Additional Information:	For W-Series socket and plug diagrams, please see: Dixon Valve Quick Disconnect W-Series.PDF For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

W-Series \| Wingstyle Interchange (Connected) Rated Pressure Chart
Body Size	Coupler/Plug
Body Size	Max. Working		Burst
1/4″	3,000 PSI	207 Bar	14,000 PSI	965 Bar
3/8″	3,000 PSI	207 Bar	13,000 PSI	897 Bar
3/4″	3,000 PSI	207 Bar	13,000 PSI	897 Bar
1″	4,000 PSI	276 Bar	16,000 PSI	1,103 Bar
1-1/4″	3,000 PSI	207 Bar	12,000 PSI	828 Bar
1-1/2″	2,500 PSI	172 Bar	10,000 PSI	690 Bar

W-Series \| Wingstyle Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
W2F1-B	Plug/Male	1/4″	1/8″-27 Female NPTF	Brass	1.88″ (47.8mm)	1.04″ (26.3mm)	15/16″
W3F2-B	Plug/Male	3/8″	1/4″-18 Female NPTF	Brass	2.30″ (58.4mm)	1.25″ (31.8mm)	1-1/4″
W3F3-B	Plug/Male	3/8″	3/8″-18 Female BSPP	Brass	2.40″ (61.0mm)	1.25″ (31.8mm)	1-1/4″
W6F4-B	Plug/Male	3/4″	1/2″ – 14 Female NPTF	Brass	2.85″ (72.4mm)	1.75″ (44.5mm)	1-5/16″
W6BF4-B	Plug/Male	3/4″	1/2″ – 14 Female BSPP	Brass	2.85″ (72.4mm)	1.75″ (44.5mm)	1-5/16″
W6F6-B	Plug/Male	3/4″	3/4″ – 14 Female NPTF	Brass	2.85″ (72.4mm)	1.75″ (44.5mm)	1-5/16″
W6BF6-B	Plug/Male	3/4″	3/4″ – 14 Female BSPP	Brass	2.85″ (72.4mm)	1.75″ (44.5mm)	1-5/16″
W8F8-B	Plug/Male	1″	1″ – 11-1/2 Female NPTF	Brass	3.15″ (80.0mm)	2.00″ (50.8mm)	1-9/16″
W8F8	Plug/Male	1″	1″ – 11-1/2 Female NPTF	Steel	3.15″ (80.0mm)	2.00″ (50.8mm)	1-9/16″
W8BF8-B	Plug/Male	1″	1″ – 11 Female BSPP	Brass	3.15″ (80.0mm)	2.00″ (50.8mm)	1-9/16″
W10F10-B	Plug/Male	1-1/4″	1-1/4″ – 11-1/2 Female NPTF	Brass	3.39″ (86.1mm)	2.37″ (60.2mm)	1-15/16″
W10BF10-B	Plug/Male	1-1/4″	1-1/4″ – 11 Female BSPP	Brass	3.39″ (86.1mm)	2.37″ (60.2mm)	1-15/16″
W12F12-B	Plug/Male	1-1/2″	1-1/2″ – 11-1/2 Female NPTF	Brass	3.74″ (95.0mm)	2.73″ (69.3mm)	2-1/4″
W12BF12-B	Plug/Male	1-1/2″	1-1/2″ – 11 Female BSPP	Brass	3.74″ (95.0mm)	2.73″ (69.3mm)	2-1/4″

W-Series \| Wingstyle Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
2WF1-B	Socket/Female	1/4″	1/8″ – 27 Female NPTF	Brass	2.00″ (50.8mm)	3.02″ (76.7mm)	5/8″
3WF2-B	Socket/Female	3/8″	1/4″ – 18 Female NPTF	Brass	2.33″ (59.1mm)	3.46″ (87.8mm)	13/16″
3WF3-B	Socket/Female	3/8″	3/8″ – 18 Female NPTF	Brass	2.33″ (59.1mm)	3.46″ (87.8mm)	13/16″
6WF4-B	Socket/Female	3/4″	1/2″ – 14 Female NPTF	Brass	2.73″ (69.3mm)	4.09″ (103.9mm)	1-5/32″
6WBF4-B	Socket/Female	3/4″	1/2″ – 14 Female BSSP	Brass	2.73″ (69.3mm)	4.09″ (103.9mm)	1-5/32″
6WF6-B	Socket/Female	3/4″	3/4″ – 14 Female NPTF	Brass	2.73″ (69.3mm)	4.09″ (103.9mm)	1-5/32″
6WBF6-B	Socket/Female	3/4″	3/4″ – 14 Female BSPP	Brass	2.73″ (69.3mm)	4.09″ (103.9mm)	1-5/32″
8WF8-B	Socket/Female	1″	1″ – 11-1/2 Female NPTF	Brass	3.33″ (84.6mm)	4.49″ (114.0mm)	1-15/32″
8WF8	Socket/Female	1″	1″ – 11-1/2 Female NPTF	Steel	3.33″ (84.6mm)	4.49″ (114.0mm)	1-15/32″
8WBF8-B	Socket/Female	1″	1″ – 11 Female BSPP	Brass	3.33″ (84.6mm)	4.49″ (114.0mm)	1-15/32″
10WF10-B	Socket/Female	1-1/4″	1-1/4″ – 11-1/2 Female NPTF	Brass	3.64″ (92.5mm)	5.27″ (133.9mm)	1-25/32″
10WBF10-B	Socket/Female	1-1/4″	1-1/4″ – 11 Female BSSP	Brass	3.64″ (92.5mm)	5.27″ (133.9mm)	1-25/32″
12WF12-B	Socket/Female	1-1/2″	1-1/2″ – 11-1/2 Female NPTF	Brass	3.67″ (93.2mm)	5.35″ (135.9mm)	2-7/64″
12WBF12-B	Socket/Female	1-1/2″	1-1/2″ – 11 Female BSPP	Brass	4.08″ (103.6mm)	5.35″ (135.9mm)	2-7/64″

W-Series \| Wingstyle Interchange Hex-Nut Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
3WF2-B-HN	Socket/Female	3/8″	1/4″ – 18 Female NPTF	Brass	2.33″ (59.2mm)	3.45″ (87.6mm)	0.81″
3WF3-B-HN	Socket/Female	3/8″	3/8″ – 18 Female NPTF	Brass	2.33″ (59.2mm)	3.45″ (87.6mm)	0.81″
6WBF4-B-HN	Socket/Female	3/4″	1/2″ – 14 Female BSPP	Brass	2.73″ (69.3mm)	1.92″ (48.8mm)	1-5/32″
6WF4-B-HN	Socket/Female	3/4″	1/2″ – 14 Female NPTF	Brass	2.73″ (69.3mm)	1.92″ (48.8mm)	1-5/32″
6WF6-B-HN	Socket/Female	3/4″	3/4″ – 14 Female NPTF	Brass	2.73″ (69.3mm)	1.92″ (48.8mm)	1-5/32″
8WF8-B-HN	Socket/Female	1″	1″ – 11-1/2 Female NPTF	Brass	3.33″ (84.6mm)	2.33″ (59.2mm)	1-15/32″
8WF8-HN	Socket/Female	1″	1″ – 11-1/2 Female NPTF	Steel	3.33″ (84.6mm)	2.33″ (59.2mm)	1-15/32″
10WF10-B-HN	Socket/Female	1-1/4″	1-1/4″ – 11-1/2 Female NPTF	Brass	3.64″ (92.5mm)	2.75″ (69.9mm)	1-25/32″
10WBF10-B-HN	Socket/Female	1-1/4″	1-1/4″ – 11 Female NPTF	Brass	3.64″ (92.5mm)	2.75″ (69.9mm)	1-25/32″
12WF12-B-HN	Socket/Female	1-1/2″	1-1/2″ – 11-1/2 Female NPTF	Brass	3.67″ (93.2mm)	3.01″ (76.5mm)	2-7/64″
