| Applications: | |||
|---|---|---|---|
| |||
| Features: | |||
|
![]() | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Port Type | End Type | Opening Thru Ball | Max PSI | Dimensions | |||||
| A | B | C | D | E | ||||||

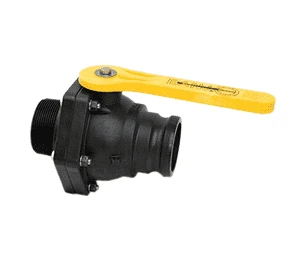

| VSFMT300FP | Full Port Valve | 3″ FP Male Adapter x 3″ Male NPT | 3″ | 100 PSI | 9.25″ | 8.19″ | 7.31″ | 0.91″ | 7.34″ | |
| VSFMT300HSFP | Full Port Valve | 3″ FP Male Adapter x 3″ Male NPT with Stainless Steel Ball, Stem & Handle | 3″ | 100 PSI | 9.88″ | 8.19″ | 7.31″ | 0.88″ | 7.31″ | |
![]() | |||
|---|---|---|---|
| Replacement Parts for VSFMT300HSFP | |||
| Item | Part Number | Description | Quantity Required |
| 1 | V20018 | 3/8″ SS Lock Washer | 6 |
| 2 | V20019 | 3/8″ 16 SS Hex Nut | 6 |
| 3 | V25163 | FKM (viton type) Stem O-Ring | 1 |
| 4 | V25160 | Upper Stem Bushing | 1 |
| 5 | VS35258 | 3″ FP Stubby Seat | 2 |
| 6 | V35265 | FKM (viton type) Valve Body O-Ring | 1 |
| 7 | VSF35254 | 3″ FP Stubby “F” Body | 1 |
| 9 | V20010SS | 3/8″ – 16 x 2″ SS Bolt | 6 |
| 10 | V35255ASS | 3″ FP SS Ball | 1 |
| 11 | VS30151SS | SS Stem | 1 |
| 12 | VS30153SS | SS Handle | 1 |
| 13 | VS30101SS | SS Handle Stop | 1 |
| 15 | VSS30020 | 3/4″-16 SS Jam Nut | 1 |
| 16 | V25060 | Thrust Washer | 1 |
| 17 | VS30021 | Washer | 1 |
* Short handles: Dimension C = 5.25″
