| Applications: | |||
|---|---|---|---|
| |||
| Features: | |||
| |||
| Other Components: | |||
|
| Part Number | Port Type | End Type | Opening Thru Ball | Max PSI | Package Quantity | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||||
| VSMT300 | Standard Port Valve | 3″ Female NPT x 3″ Male NPT | 2-1/2″ | 100 PSI | 1 | 3.63″ | 2.84″ | 5.25/9.25″ | 4.60″ | 5.09″ |
| VSF300 | Standard Port Valve | 3″ Female NPT x 3″ Male Adapter | 2-1/2″ | 100 PSI | 1 | 3.63″ | 2.84″ | 5.25/9.25″ | 4.60″ | 5.65″ |

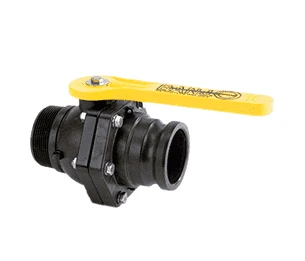

| VSFMT300 | Standard Port Valve | 3″ Male NPT x 3″ Male Adapter | 2-1/2″ | 225 PSI | 1 | 3.63″ | 2.84″ | 5.25/9.25″ | 4.60″ | 7.84″ |
| Replacement Parts for VSMT300, VSF300, VSFMT300 | |||
|---|---|---|---|
| Item | Part Number | Description | Quantity Required |
| 3 | VS25151B | Short Stem | 1 |
| 4 | VS30258 | 3″ Stubby Seat | 2 |
| 5 | V20010SS | 3/8″ – 16 x 2″ SS Bolt | 6 |
| 6 | V20018 | 3/8″ SS Lock Washer | 6 |
| 7 | V20019 | 3/8″ 16 SS Hex Nut | 6 |
| 10 | V25153 | Handle-Straight | 1 |
| 11 | V25160 | Upper Stem Bushing | 1 |
| 12 | V25163 | FKM (viton type) Stem O-Ring | 1 |
| 13 | VS30255 | 3″ Ball | 1 |
| Replacement Parts for VSF300 | |||
|---|---|---|---|
| Item | Part Number | Description | Quantity Required |
| 1 | VS30254 | 3″ Stubby Body | 1 |
| 2 | VSF30264 | 3″ Stubby “F” End Plate | 1 |
* Short handles: Dimension C = 5.25″ NOTE: End plates and body style may vary from picture.
