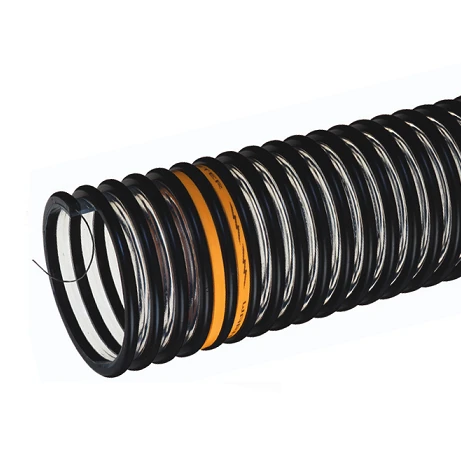

VOLT600X60 Tigerflex By Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 6" ID | Polyurethane | 60ft Length

VOLT600X60 Tigerflex By Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 6" ID | Polyurethane | 60ft Length - Image 2

VOLT600X60 Tigerflex By Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 6″ ID | Polyurethane | 60ft Length

Original price was: $328.00.Current price is: $95.99.

SKU: AG9ZZ 1487382511652 Category: Bulk Hose & Covers Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Material Handling Hose, Filter-All-Brand_Tigerflex, Filter-All-Series_VOLT Series, Filter-All-SpecialProperties_Conductive Tube, Filter-All-SpecialProperties_Ground Wire in Hose, Filter-All-SpecialProperties_Outer Helix Protection, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Black & Clear/Semi-Clear & Orange, Filter-AllHose-ID_6", Filter-AllHose-TubingConstruction_Static Dissipating Polyurethane, Filter-IndustrialHoseTubingJoints-OD_6.81", Food Grade, Industrial Hose Fittings, Industrial-hose, JD050523, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Tigerflex Thermoplastic Industrial Hoses, Unit-ft-60, Volt Series Heavy Duty Food Grade Static Dissipative Polyurethane Material Handling Hose

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:

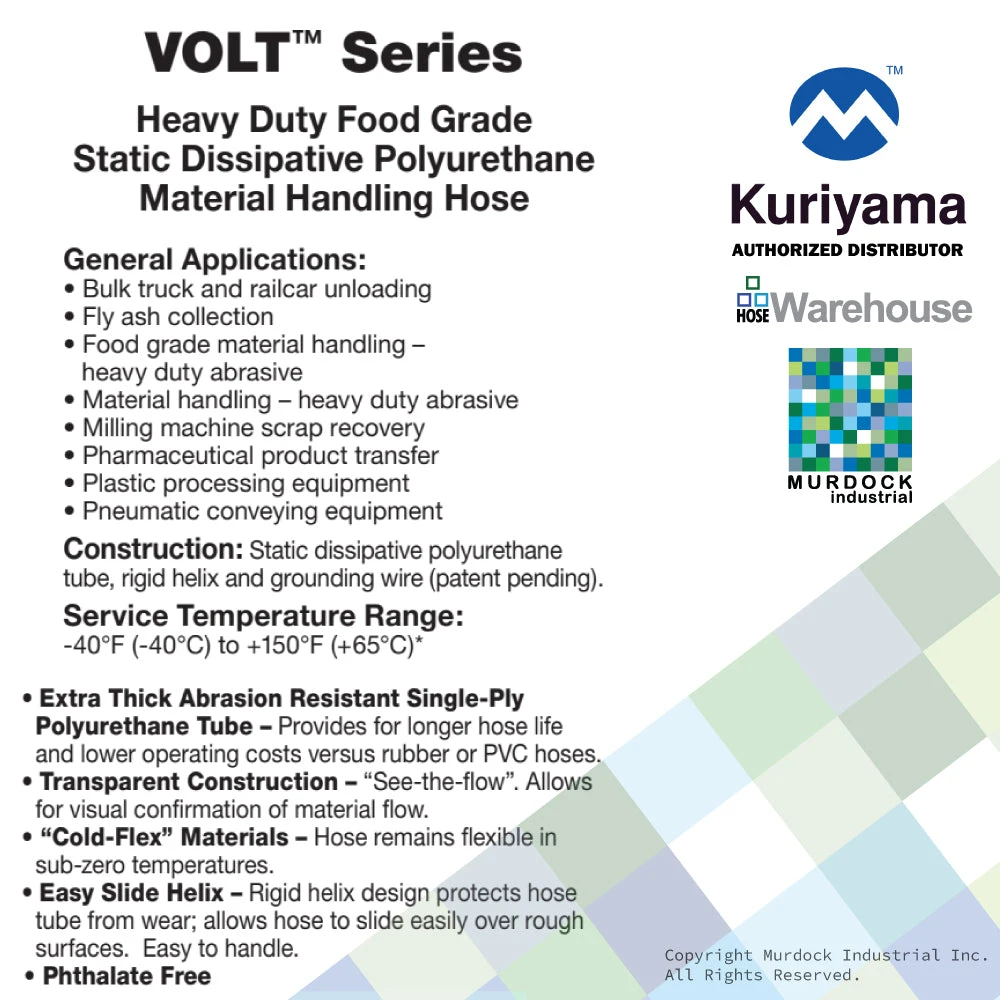

Application:	Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Bulk Truck and Railcar Unloading, Fly Ash Collection, Pneumatic Conveying Equipment, Milling Machine Scrap Recovery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Static Dissipative Polyurethane
Reinforcement:	Rigid Helix and Grounding Wire	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	BSE/TSE(02), FDA(05), RoHS(10)

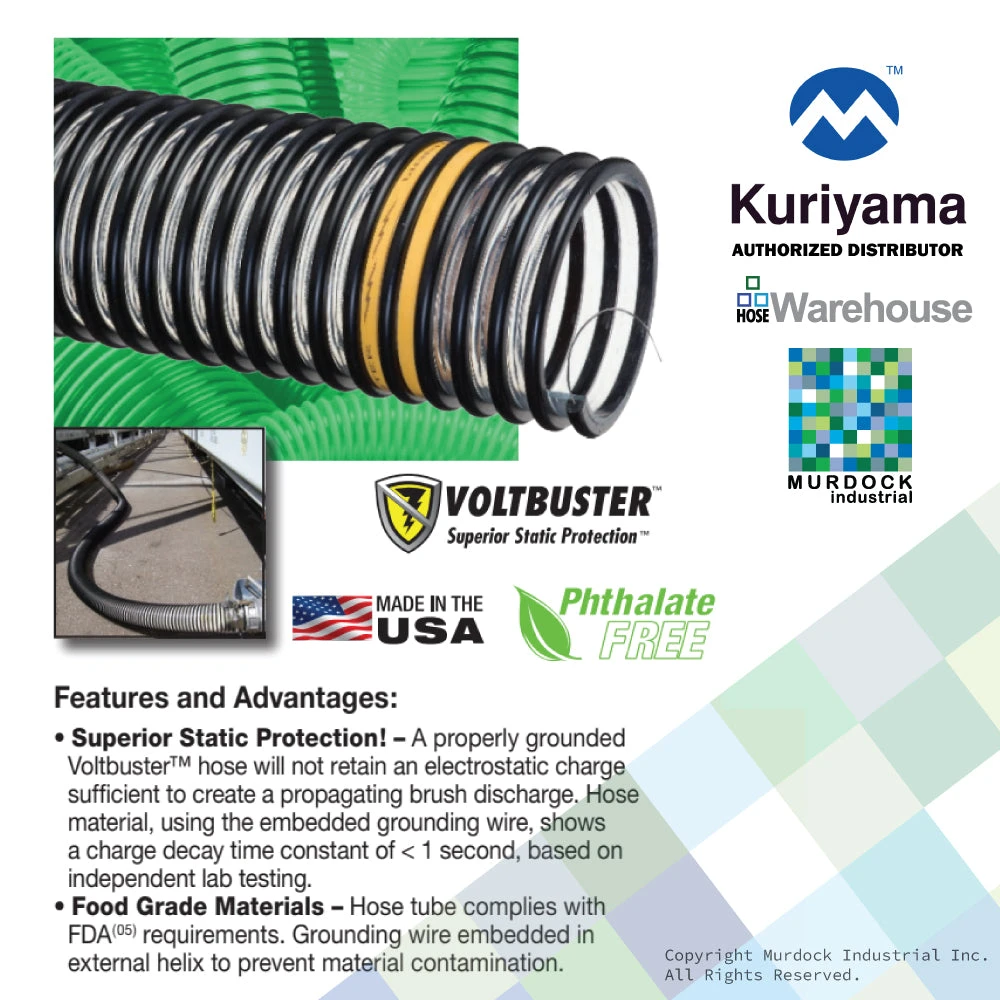

Superior Static Protection! – A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing. Food Grade Materials – Hose cover complies with applicable FDA(03) requirements. Hose liner complies with applicable FDA(05) requirements. Grounding wire embedded in external helix to prevent material contamination. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. Extra Thick Abrasion Resistant Single-Ply Polyurethane Tube – Provides for longer hose life and lower operating costs versus rubber or PVC hoses. “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures. Easy Slide Helix – Rigid helix design protects hose tube from wear; allows hose to slide easily over rough surfaces. Easy to handle. Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.

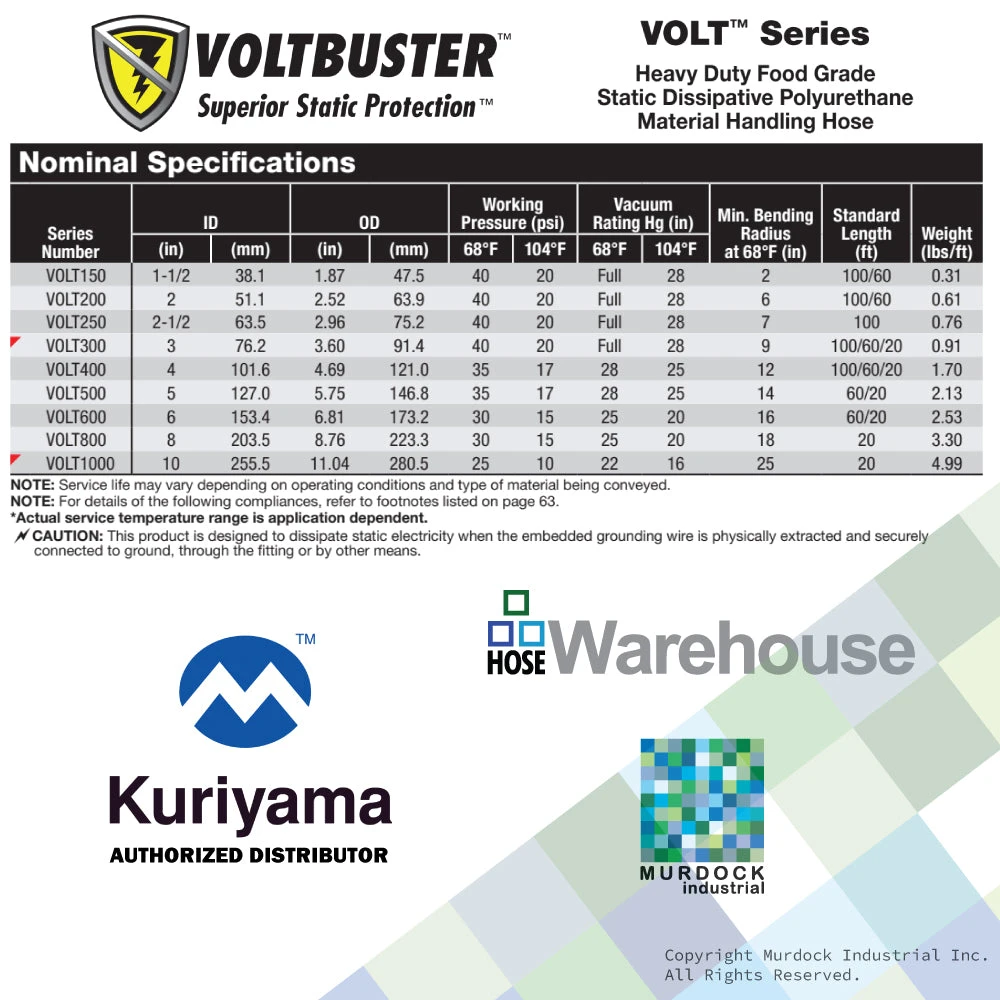

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
VOLT150X100	1-1/2″	38.35mm	1.87″	47.5mm	40 PSI	20 PSI	Full	28in. Hg	2″	100ft	0.31 lbs
VOLT150X60	1-1/2″	38.35mm	1.87″	47.5mm	40 PSI	20 PSI	Full	28in. Hg	2″	100ft	0.31 lbs
VOLT200X100	2″	51.1mm	2.52″	63.9mm	40 PSI	20 PSI	Full	28in. Hg	6″	100ft	0.61 lbs
VOLT200X60	2″	51.1mm	2.52″	63.9mm	40 PSI	20 PSI	Full	28in. Hg	6″	60ft	0.61 lbs
VOLT250X100	2-1/2″	63.75mm	2.96″	75.2mm	40 PSI	20 PSI	Full	28in. Hg	7″	100ft	0.76 lbs
VOLT300X100	3″	76.2mm	3.60″	91.4mm	40 PSI	20 PSI	Full	28in. Hg	9″	100ft	0.91 lbs
VOLT300X60	3″	76.2mm	3.60″	91.4mm	40 PSI	20 PSI	Full	28in. Hg	9″	60ft	0.91 lbs
VOLT400X100	4″	101.6mm	4.69″	121.0mm	35 PSI	17 PSI	28in. Hg	25in. Hg	12″	100ft	1.70 lbs
VOLT400X60	4″	101.6mm	4.69″	121.0mm	35 PSI	17 PSI	28in. Hg	25in. Hg	12″	60ft	1.70 lbs
VOLT400X20	4″	101.6mm	4.69″	121.0mm	35 PSI	17 PSI	28in. Hg	25in. Hg	12″	20ft	1.70 lbs
VOLT500X60	5″	127.0mm	5.75″	146.8mm	35 PSI	17 PSI	28in. Hg	25in. Hg	14″	60ft	2.13 lbs
VOLT500X20	5″	127.0mm	5.75″	146.8mm	35 PSI	17 PSI	28in. Hg	25in. Hg	14″	20ft	2.13 lbs
VOLT600X60	6″	153.4mm	6.81″	173.2mm	30 PSI	15 PSI	25in. Hg	20in. Hg	16″	60ft	2.53 lbs
VOLT600X20	6″	153.4mm	6.81″	173.2mm	30 PSI	15 PSI	25in. Hg	20in. Hg	16″	20ft	2.53 lbs
VOLT800X60	8″	203.5mm	8.76″	223.3mm	30 PSI	15 PSI	25in. Hg	20in. Hg	18″	60ft	3.30 lbs
VOLT800X20	8″	203.5mm	8.76″	223.3mm	30 PSI	15 PSI	25in. Hg	20in. Hg	18″	20ft	3.30 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground,
through the fitting or by other means.
