| Applications: | |||
|---|---|---|---|
| |||
| Features: | |||
| |||
| Other Components: | |||
|
| Part Number | Nozzle Size | End Type | Opening Thru Ball | Max PSI | Package Quantity |
|---|---|---|---|---|---|
| VA150 | 1-1/2″ Male NPT x 8″ Nozzle End | 1-1/2″ Female NPT | 1-1/2″ | 225 PSI | 1 |
| VA200/150 | 1-1/2″ Male NPT x 8″ Nozzle End | 2″ x 1-1/2″ Female NPT | 1-1/2″ | N/A | 1 |
| VA200 | 2″ Male NPT x 8″ Nozzle End | 2″ Female NPT | 1-1/2″ | 200 PSI | 1 |

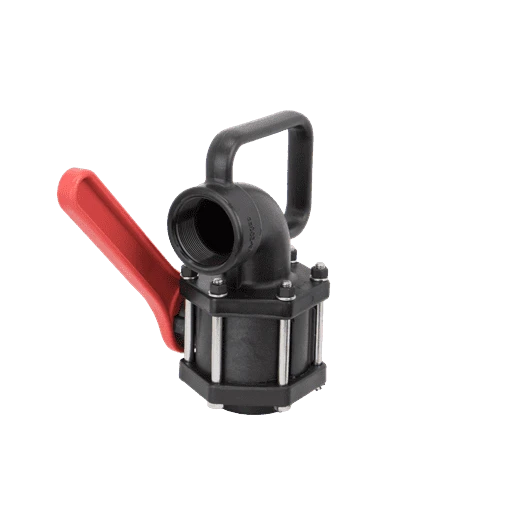

| VA200FP | 2″ Male NPT x 8″ Nozzle End | 2″ Female NPT | 2″ | 225 PSI | 1 |
| Replacement Parts for VA150, VA200/150, VA200 | ||
|---|---|---|
| Part Number | Description | Quantity Required |
| V20151M | Stem | 1 |
| V20152 | Red Angle Handle | 1 |
| V20254 | Body | 1 |
| V20255A* | Ball | 1 |
| V20256 | 2″ FPT End Plate | 2 |
| V20257 | 1-1/2″ End Plate | 2 |
| V20258A* | Ball Seat | 2 |
| V20264* | FKM (viton type) Body O-RIng | 2 |
| V20159* | Upper Stem Bushing | 1 |
| V20060* | Thrust Washer | 1 |
| V20262 | 1-1/2″ FP Angle End Flange | 1 |
| V20163* | FKM (viton type) Stem O-Ring | 1 |
| V20166 | 1-1/2″ x 8″ Nozzle Pipe | 1 |
| V25165 | 2″ x 8″ Nozzle Pipe | 1 |
| V20017 | 3/8″ x 4-1/2″ SS Bolt | 4 |
| V20018 | 3/8″ SS Lock Washer | 4 |
| V20019 | 3/8″ 16 SS Hex Nut | 4 |
| V20020 | 3/8″ x 1/2″ Handle Bolt | 1 |
| V20021 | S.S. Handle Washer | 1 |
* Is included in Repair Kit
