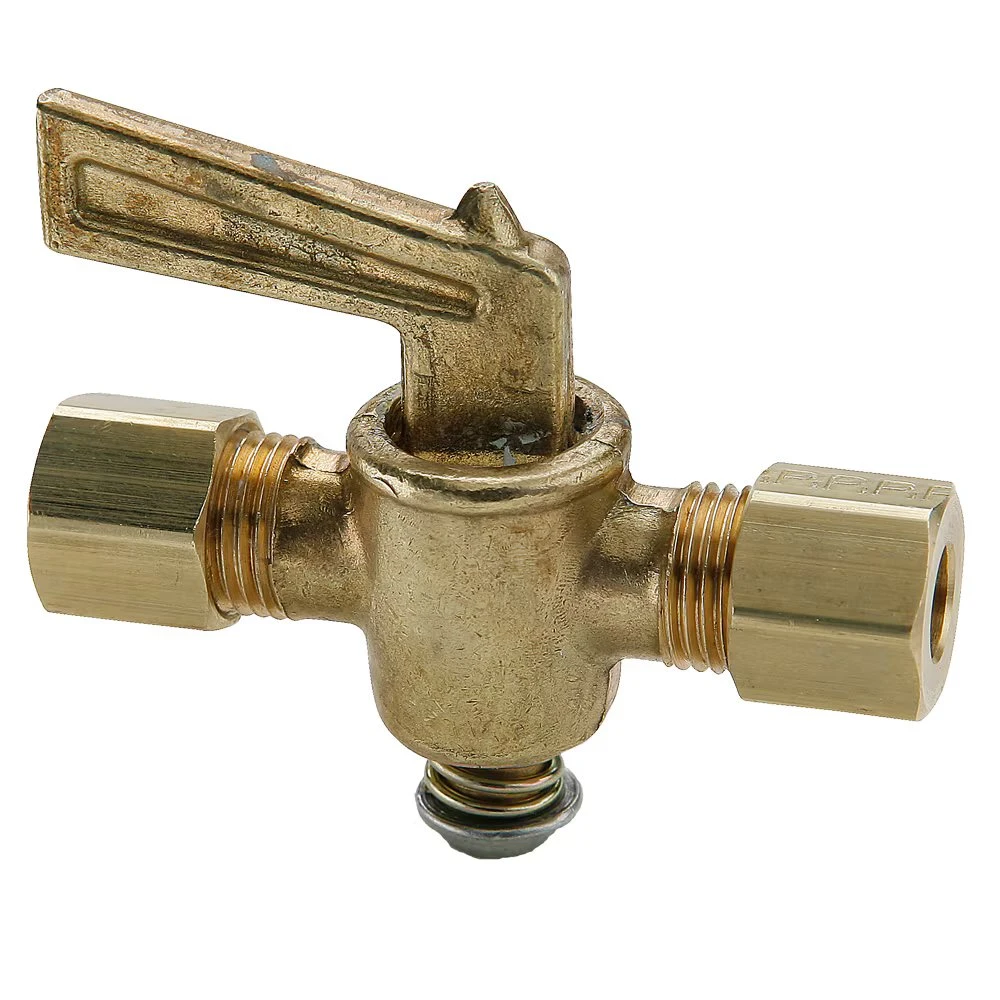

V303CA-4-4 By Parker | Ground Plug Shutoff | 1/4″ Tube Size Compression X 1/4″ Tube Size Compression | Straight | Brass | Pack Of 10

• Pre-applied Vibra-Seal thread sealant available

Compatible Fluids:

• Compressed air, water, industrial fluids
• Other fluids: please contact division.

Specification:

Temperature Range:

• Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C)
• V406P/V407P: -40° to +180° F ( -40° to +82.2° C)
• Drain Cocks: -65° to +250° F (-53.8° to +121.1° C)
• DCR601: -30° to +250° F (-34.4° to +121.1° C)

Pressure Range:

• Ground Plug Shutoff: 30 PSI (2.0 bar)
• Drain Cocks: Up to 150 PSI (10.3 bar)

Part Number	Tube Size	L	M	Flow Diameter (D)
V303C-4-4	1/4″	1.88″	2.33″	.188″
V303CA-4-4	1/4″	1.90″	1.75″	.188″
V303C-6-6	3/8″	2.26″	2.45″	.218″
