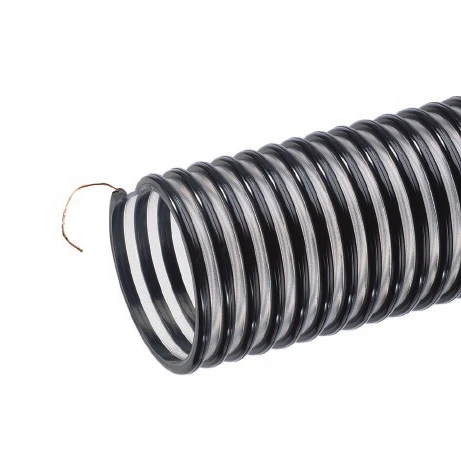

UV3-300X100 Tigerflex By Kuriyama | UV3 Series | Urevac Heavy Duty Material Handling Hose With Grounding Wire | 3″ ID | Polyurethane | 100ft Length

Original price was: $302.00.Current price is: $99.99.

SKU: AG9ZZ 1487396569124 Categories: Bulk Hose & Covers, Industrial Hose Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Material Handling Hose, Filter-All-Brand_Tigerflex, Filter-All-Series_UV3 Series, Filter-All-SpecialProperties_Ground Wire in Hose, Filter-All-SpecialProperties_Outer Helix Protection, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Black & Clear/Semi-Clear, Filter-AllHose-ID_3", Filter-AllHose-TubingConstruction_Polyurethane, Filter-IndustrialHoseTubingJoints-OD_3.60", Industrial Hose Fittings, Industrial-hose, JD050523, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Material Handling, Matrixify1st50kProducts, Tigerflex Thermoplastic Industrial Hoses, Unit-ft-100, UV3 Series Heavy Duty Polyurethane Material Handling Hose With Grounding Wire

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Dust collection, Trench suction, Material handling – heavy duty abrasive, Milling machine scrap recovery, Plastic processing equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-Ply Polyurethane
Reinforcement:	Rigid PVC Helix and Grounding Wire.	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Thick Abrasion Resistant Single-Ply Polyurethane Tube – designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Grounding Wire – Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It’s embedded within the rigid helix to prevent contamination of transferred materials. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures. Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UV3-300X100	3″	76.2mm	3.60″	91.4mm	40 PSI	20 PSI	Full	28 in. Hg	9″	100ft	0.91 lbs
UV3-300X50	3″	76.2mm	3.60″	91.4mm	40 PSI	20 PSI	Full	28 in. Hg	9″	50ft	0.91 lbs
UV3-400X100	4″	101.6mm	4.66″	118.4mm	35 PSI	17 PSI	28 in. Hg	25 in. Hg	12″	100ft	1.50 lbs
UV3-400X50	4″	101.6mm	4.66″	118.4mm	35 PSI	17 PSI	28 in. Hg	25 in. Hg	12″	50ft	1.50 lbs
UV3-500X50	5″	127.0mm	5.50″	145.0mm	35 PSI	17 PSI	28 in. Hg	25 in. Hg	14″	50ft	1.82 lbs
UV3-600X50	6″	152.4mm	6.65″	172.0mm	30 PSI	15 PSI	25 in. Hg	20 in. Hg	16″	50ft	2.24 lbs
UV3-800X50	8″	203.5mm	8.76″	223.0mm	30 PSI	15 PSI	25 in. Hg	20 in. Hg	18″	50ft	3.00 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground,
through the fi tting or by other means.
