Sale!

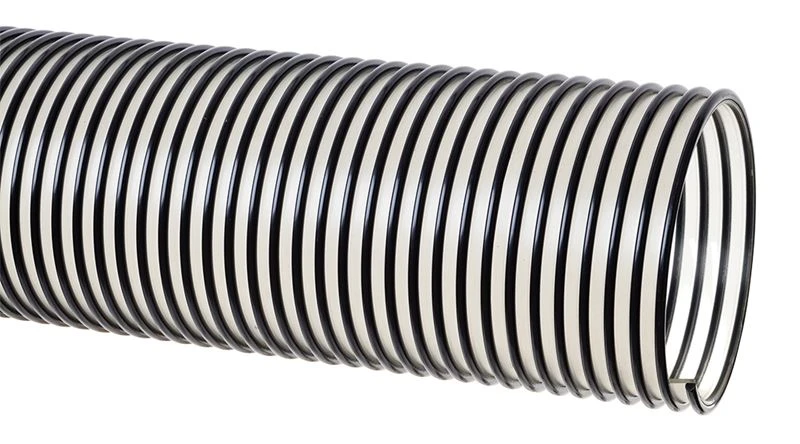

UV2-400X60 Tigerflex By Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 4″ ID | Polyurethane | 60ft Length

Original price was: $325.00.Current price is: $98.99.

SKU: AG9ZZ 1487397158948 Categories: Bulk Hose & Covers, Industrial Hose Tags: All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Material Handling Hose, Filter-All-Brand_Tigerflex, Filter-All-Series_UV2 Series, Filter-All-SpecialProperties_Conductive Hose Cover, Filter-All-SpecialProperties_Outer Helix Protection, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Black & Clear/Semi-Clear, Filter-AllHose-CoverConstruction_PVC, Filter-AllHose-ID_4", Filter-AllHose-TubingConstruction_Polyurethane, Filter-IndustrialHoseTubingJoints-OD_4.57", Industrial Hose Fittings, Industrial-hose, JD050523, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Material Handling, Matrixify1st50kProducts, Tigerflex Thermoplastic Industrial Hoses, Unit-ft-60, UV2 Series Urevac Standard Duty Polyurethane Lined Material Handling Hose

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Agricultural dry fertilizer, Air seeder lines, Dust collection, Material chutes, Material handling – standard duty, Wand hose	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Abrasion Resistant Polyurethane Liner – designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures. Static Dissipative Cover – Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Oil Resistant Polyurethane Liner – Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UV2-150X60	1-1/2″	38.1mm	1.87″	47.5mm	25 PSI	10 PSI	22 in. Hg	16 in. Hg	1.5″	60ft	0.29 lbs
UV2-200X60	2″	50.8mm	2.47″	62.7mm	25 PSI	10 PSI	21 in. Hg	14 in. Hg	2.5″	60ft	0.40 lbs
UV2-250X60	2-1/2″	63.5mm	2.96″	75.2mm	20 PSI	8 PSI	19 in. Hg	12 in. Hg	3″	60ft	0.53 lbs
UV2-300X60	3″	76.2mm	3.54″	89.8mm	20 PSI	8 PSI	18 in. Hg	11 in. Hg	4″	60ft	0.67 lbs
UV2-400X60	4″	101.6mm	4.57″	116.1mm	15 PSI	7 PSI	13 in. Hg	9 in. Hg	6″	60ft	1.02 lbs
UV2-500X60	5″	127.0mm	5.58″	141.7mm	15 PSI	7 PSI	10 in. Hg	7 in. Hg	8″	60ft	1.22 lbs
UV2-600X60	6″	152.4mm	6.62″	168.1mm	10 PSI	5 PSI	7 in. Hg	5 in. Hg	10″	60ft	1.68 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
