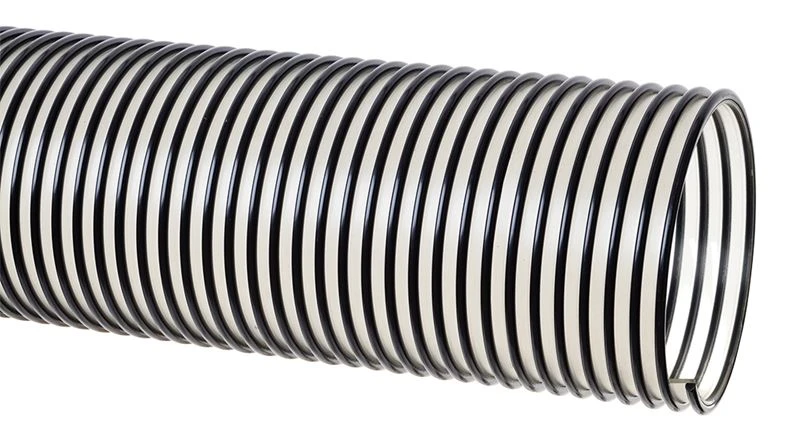

UV2-300X60 Tigerflex By Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 3" ID | Polyurethane | 60ft Length

UV2-300X60 Tigerflex By Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 3″ ID | Polyurethane | 60ft Length

Original price was: $398.00.Current price is: $96.99.

SKU: AG9ZZ 1487397126180 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Agricultural dry fertilizer, Air seeder lines,
Dust collection, Material chutes,
Material handling – standard duty,
Wand hose		 SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant Polyurethane Liner – designed for dry
    applications where severe abrasion is a factor. Provides for
    longer hose life and lower operating costs versus rubber or PVC hoses.
  • “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
  • Static Dissipative Cover – Specially formulated to help
    prevent the build-up of static electricity for added safety and to
    help keep material flowing smoothly
  • Transparent Construction – “See-the-flow.” Allows for visual
    confirmation of material flow.
  • Easy Slide Helix – Rigid helix design protects hose tube from
    cover wear, and allows hose to slide easily over rough surfaces.
    Easy-to-handle.
  • Oil Resistant Polyurethane Liner – Resists most animal and
    petroleum based oils.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Approx. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UV2-150X60 1-1/2″ 38.1mm 1.87″ 47.5mm 25 PSI 10 PSI 22 in. Hg 16 in. Hg 1.5″ 60ft 0.29 lbs
UV2-200X60 2″ 50.8mm 2.47″ 62.7mm 25 PSI 10 PSI 21 in. Hg 14 in. Hg 2.5″ 60ft 0.40 lbs
UV2-250X60 2-1/2″ 63.5mm 2.96″ 75.2mm 20 PSI 8 PSI 19 in. Hg 12 in. Hg 3″ 60ft 0.53 lbs
UV2-300X60 3″ 76.2mm 3.54″ 89.8mm 20 PSI 8 PSI 18 in. Hg 11 in. Hg 4″ 60ft 0.67 lbs
UV2-400X60 4″ 101.6mm 4.57″ 116.1mm 15 PSI 7 PSI 13 in. Hg 9 in. Hg 6″ 60ft 1.02 lbs
UV2-500X60 5″ 127.0mm 5.58″ 141.7mm 15 PSI 7 PSI 10 in. Hg 7 in. Hg 8″ 60ft 1.22 lbs
UV2-600X60 6″ 152.4mm 6.62″ 168.1mm 10 PSI 5 PSI 7 in. Hg 5 in. Hg 10″ 60ft 1.68 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
