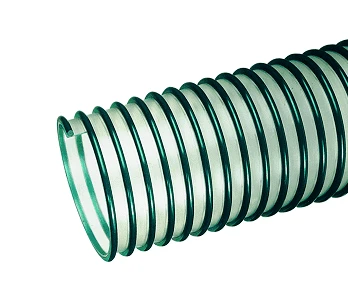

UV1-800X50 Tigerflex By Kuriyama | UV1 Series | Urevac Ducting/Material Handling Hose | 8" ID | Polyurethane | 50ft Length

UV1-800X50 Tigerflex By Kuriyama | UV1 Series | Urevac Ducting/Material Handling Hose | 8″ ID | Polyurethane | 50ft Length

Original price was: $306.00.Current price is: $99.99.

SKU: AG9ZZ 1487399649316 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Concrete resurfacing dust collection, Ducting,
Ventilation and fume removal, Material handling – standard duty
Dust collection, Insulation blowing, Material chutes		 SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Durable Lightweight Polyurethane Tube – designed for dry
    applications where abrasion is a factor. Provides longer hose life
    and lower operating costs versus rubber or PVC hoses.
  • Transparent Construction – “See-the-flow.” Allows for visual
    confirmation of material flow.
  • Easy Slide Helix – Rigid helix design protects hose tube from
    cover wear, and allows hose to slide easily over rough surfaces.
    Easy-to-handle.
  • “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
  • Oil Resistant Polyurethane Tube – Resists most animal and
    petroleum based oils.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Approx. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UV1-150X50 1-1/2″ 38.1mm 1.82″ 46.2mm 20 PSI 7 PSI 22 in. Hg 14 in. Hg 0.75″ 50ft 0.23 lbs
UV1-200X50 2″ 50.8mm 2.39″ 60.7mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 1.5″ 50ft 0.32 lbs
UV1-250X50 2-1/2″ 63.5mm 2.89″ 73.4mm 10 PSI 5 PSI 19 in. Hg 10 in. Hg 1.5″ 50ft 0.39 lbs
UV1-300X50 3″ 76.2mm 3.46″ 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 2.5″ 50ft 0.55 lbs
UV1-400X50 4″ 101.6mm 4.50″ 114.3mm 8 PSI 4 PSI 13 in. Hg 8 in. Hg 3″ 50ft 0.77 lbs
UV1-500X50 5″ 127.0mm 5.50″ 139.7mm 7 PSI 3 PSI 10 in. Hg 7 in. Hg 4″ 50ft 0.89 lbs
UV1-600X50 6″ 152.4mm 6.54″ 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 5″ 50ft 1.15 lbs
UV1-800X50 8″ 203.2mm 8.59″ 218.2mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 7″ 50ft 1.75 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
