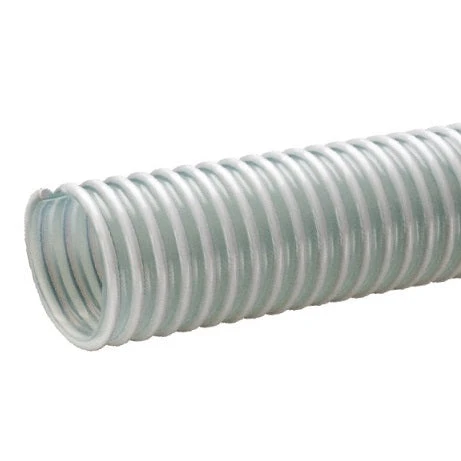

UFC300X100 Tigerflex By Kuriyama | UFC Series | Ureflex Heavy Duty Lined Material Handling Hose | 3" ID | Polyurethane | 100ft Length

UFC300X100 Tigerflex By Kuriyama | UFC Series | Ureflex Heavy Duty Lined Material Handling Hose | 3″ ID | Polyurethane | 100ft Length

Original price was: $323.00.Current price is: $95.99.

SKU: AG9ZZ 1487395127332 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines,
Industrial vacuum equipment, Plastic processing equipment,
Material handling – heavy duty abrasive,
Milling machine scrap recovery, Shot blast recovery		 SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner – designed
    for dry applications where severe abrasion is a factor. Provides
    for longer hose life and lower operating costs versus rubber or
    PVC hoses.
  • Static Dissipative Cover – Specially formulated to help
    prevent the build-up of static electricity for added safety and to
    help keep material flowing smoothly.
  • Transparent Construction – “See-the-flow.” Allows for visual
    confirmation of material flow.
  • “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover – Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner – Resists most animal and
    petroleum based oils.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UFC150X100 1-1/2″ 38.1mm 1.85″ 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2″ 100ft 0.42 lbs
UFC200X100 2″ 50.8mm 2.40″ 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 100ft 0.59 lbs
UFC250X100 2-1/2″ 63.5mm 3.07″ 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 100ft 0.80 lbs
UFC300X100 3″ 76.2mm 3.64″ 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4″ 100ft 1.18 lbs
UFC400X100 4″ 101.6mm 4.76″ 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6″ 100ft 1.95 lbs
UFC57MX100* 2.24″ 57.0mm 2.60″ 66.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 100ft 0.62 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
Actual service temperature range is application dependent.
*Non-stock item, minimum order required. Contact customer service for details.
