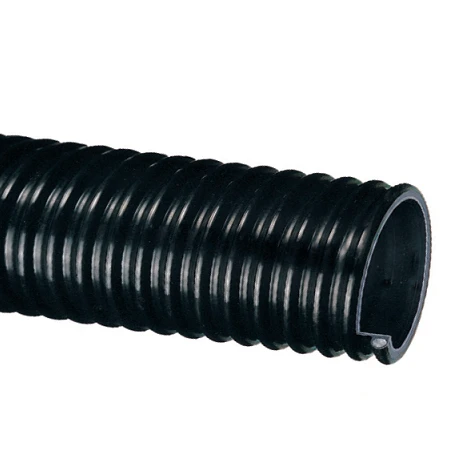

UF1-125X100 Tigerflex By Kuriyama | UF1 Series | Ureflex Heavy Duty Lined Material Handling Hose | 1-1/4" ID | Polyurethane | 100ft Length

UF1-125X100 Tigerflex By Kuriyama | UF1 Series | Ureflex Heavy Duty Lined Material Handling Hose | 1-1/4″ ID | Polyurethane | 100ft Length

Original price was: $378.67.Current price is: $99.99.

SKU: AG9ZZ 1487392866340 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines,
Fly ash collection, Industrial vacuum equipment,
Material chutes, Material handling – heavy duty abrasive,
Milling machine scrap recovery, Shot blast recovery,
Rock, gravel, sand and crushed concrete vacuuming		 SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner – designed
    for dry applications where severe abrasion is a factor. Provides
    for longer hose life and lower operating costs versus rubber or
    PVC hoses.
  • Static Dissipative Cover – Specially formulated to help
    prevent the build-up of static electricity for added safety and to
    help keep material flowing smoothly.
  • “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover – Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner – Resists most animal and
    petroleum based oils.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UF1-125X100 1-1/4″ 31.8mm 1.53″ 39.0mm 50 PSI 25 PSI Full 28 in. Hg 2″ 100ft 0.22 lbs
UF1-150X100 1-1/2″ 38.1mm 1.85″ 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2″ 100ft 0.42 lbs
UF1-150X50 1-1/2″ 38.1mm 1.85″ 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2″ 50ft 0.42 lbs
UF1-200X100 2″ 50.8mm 2.40″ 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 100ft 0.59 lbs
UF1-200X50 2″ 50.8mm 2.40″ 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 50ft 0.59 lbs
UF1-250X100 2-1/2″ 63.5mm 3.07″ 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 100ft 0.80 lbs
UF1-250X50 2-1/2″ 63.5mm 3.07″ 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3″ 50ft 0.80 lbs
UF1-300X100 3″ 76.2mm 3.64″ 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4″ 100ft 1.18 lbs
UF1-300X50 3″ 76.2mm 3.64″ 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4″ 50ft 1.18 lbs
UF1-350X100 3-1/2″ 88.9mm 4.21″ 107.0mm 35 PSI 18 PSI Full 28 in. Hg 5″ 100ft 1.48 lbs
UF1-350X50 3-1/2″ 88.9mm 4.21″ 107.0mm 35 PSI 18 PSI Full 28 in. Hg 5″ 50ft 1.48 lbs
UF1-400X100 4″ 101.6mm 4.76″ 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6″ 100ft 1.95 lbs
UF1-400X50 4″ 101.6mm 4.76″ 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6″ 50ft 1.95 lbs
UF1-500X100 5″ 127.0mm 5.75″ 146.0mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 10″ 100ft 2.42 lbs
UF1-500X50 5″ 127.0mm 5.75″ 146.0mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 10″ 50ft 2.42 lbs
UF1-600X100 6″ 152.4mm 6.81″ 173.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12″ 100ft 3.50 lbs
UF1-600X50 6″ 152.4mm 6.81″ 173.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12″ 50ft 3.50 lbs
UF1-800X50 8″ 203.2mm 9.18″ 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18″ 50ft 5.91 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
