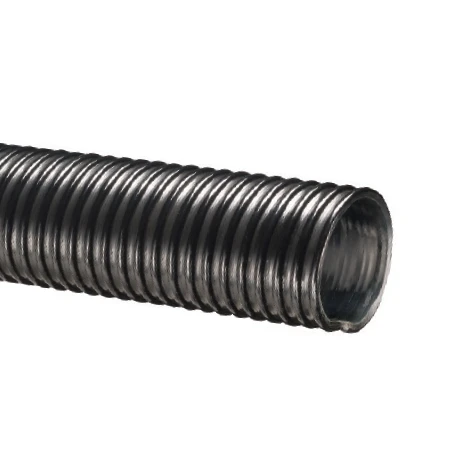

UBK800X50 Tigerflex By Kuriyama | UBK Series | Heavy Duty Lined Material Handling Hose | 8" ID | Polyurethane | 50ft Length

UBK800X50 Tigerflex By Kuriyama | UBK Series | Heavy Duty Lined Material Handling Hose | 8″ ID | Polyurethane | 50ft Length

Original price was: $354.00.Current price is: $96.99.

SKU: AG9ZZ 1487394963492 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines,
Fly ash collection, Industrial vacuum equipment,
Material handling – heavy duty abrasive,
Milling machine scrap recovery, Shot blast recovery,
Rock, gravel, sand and crushed concrete vacuuming		 SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner – designed
    for dry applications where severe abrasion is a factor. Provides
    for longer hose life and lower operating costs versus rubber or
    PVC hoses.
  • Static Dissipative Cover – Specially formulated to help
    prevent the build-up of static electricity for added safety and to
    help keep material flowing smoothly.
  • “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix – Rigid helix design protects hose tube from
    cover wear, and allows hose to slide easily over rough surfaces.
    Easy-to-handle.
  • Oil Resistant Polyurethane Liner – Resists most animal and
    petroleum based oils.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UBK200X100 2″ 50.8mm 2.40″ 61.0mm 40 PSI 15 PSI Full 28 in. Hg 2″ 100ft 0.59 lbs
UBK200X50 2″ 50.8mm 2.40″ 61.0mm 40 PSI 15 PSI Full 28 in. Hg 2″ 50ft 0.59 lbs
UBK250X100 2-1/2″ 63.5mm 3.07″ 78.0mm 40 PSI 15 PSI Full 28 in. Hg 4″ 100ft 0.79 lbs
UBK250X50 2-1/2″ 63.5mm 3.07″ 78.0mm 40 PSI 15 PSI Full 28 in. Hg 4″ 50ft 0.79 lbs
UBK300X100 3″ 76.2mm 3.64″ 92.5mm 40 PSI 15 PSI Full 28 in. Hg 4″ 100ft 0.83 lbs
UBK300X50 3″ 76.2mm 3.64″ 92.5mm 40 PSI 15 PSI Full 28 in. Hg 4″ 50ft 0.83 lbs
UBK400X100 4″ 101.6mm 4.76″ 120.9mm 35 PSI 13 PSI Full 28 in. Hg 6″ 100ft 1.37 lbs
UBK400X50 4″ 101.6mm 4.76″ 120.9mm 35 PSI 13 PSI Full 28 in. Hg 6″ 50ft 1.37 lbs
UBK500X100 5″ 127.0mm 5.69″ 144.5mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 10″ 100ft 2.28 lbs
UBK500X50 5″ 127.0mm 5.69″ 144.5mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 10″ 50ft 2.28 lbs
UBK600X100 6″ 152.4mm 6.81″ 173.0mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 12″ 100ft 3.10 lbs
UBK600X50 6″ 152.4mm 6.81″ 173.0mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 12″ 50ft 3.10 lbs
UBK800X50 8″ 203.2mm 9.02″ 229.0mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 15″ 50ft 4.51 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
