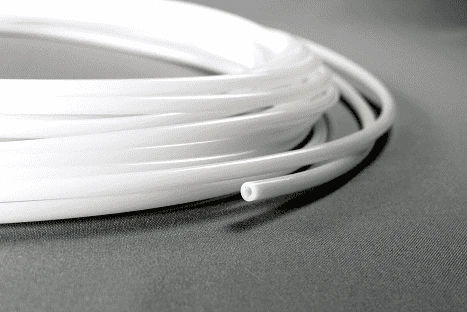

TSPTFE-0500-031-50 Versilon™ By Saint Gobain | 7/16″ I.D. X 1/2″ OD X .031 Wall | PTFE Tubing | 50′ Package Length
Original price was: $250.67.$98.99Current price is: $98.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Semiconductor Processing, Analytical and Process Equipment in Biotechnology, Pharmaceutical, and Environmental Fields, Ultraviolet Radiation Sterilization Systems, Cryogenic, General Laboratory Use, Chemical Processing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PTFE |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -450 deg. F (-268 deg. C) – 500 deg. F (260 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA |
| Literature: | Versilon™ PTFE Tubing (PDF) | ||
| Other Features: | |||
| |||
| Part Number (50ft Lengths) | Part Number (100ft Lengths) | Inside Diameter (in. or mm) | Outside Diameter (in. or mm) | Wall Thickness (in. or mm) | Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI)* | Max. Working Pressure at 212 deg. F (PSI)* | Max. Working Pressure at 400 deg. F (PSI)* |
|---|---|---|---|---|---|---|---|---|
| TSPTFE-0125-031-50 | TSPTFE-0125-031.10 | 1/16″ | 1/8″ | .016″ | 1/2″ | 412 PSI | 148 PSI | N/A |
| TSPTFE-0250-062-50 | TSPTFE-0250-062.10 | 1/8″ | 1/4″ | .062″ | 1/2″ | 417 PSI | 150 PSI | N/A |
| TSPTFE-0250-047-50 | TSPTFE-0250-047.10 | 5/32″ | 1/4″ | .047″ | 3/4″ | 289 PSI | 104 PSI | N/A |
| TSPTFE-0250-031-50 | TSPTFE-0250-031.10 | 3/16″ | 1/4″ | .031″ | 1″ | 177 PSI | 64 PSI | N/A |
| TSPTFE-0312-062-50 | TSPTFE-0312-062.10 | 3/16″ | 5/16″ | .062″ | 1-1/2″ | 312 PSI | 112 PSI | N/A |
| TSPTFE-0312-031-50 | TSPTFE-0312-031.10 | 1/4″ | 5/16″ | .031″ | 1-3/4″ | 140 PSI | 50 PSI | N/A |
| TSPTFE-0375-062-50 | TSPTFE-0375-062.10 | 1/4″ | 3/8″ | .062″ | 1″ | 250 PSI | 90 PSI | N/A |
| TSPTFE-0375-031-50 | TSPTFE-0375-031.10 | 5/16″ | 3/8″ | .031″ | 2-1/2″ | 113 PSI | 41 PSI | N/A |
| TSPTFE-0500-062-50 | TSPTFE-0500-062.10 | 3/8″ | 1/2″ | .062″ | 2″ | 97 PSI | 35 PSI | N/A |
| TSPTFE-0500-031-50 | TSPTFE-0500-031.10 | 7/16″ | 1/2″ | .031″ | 4″ | 83 PSI | 30 PSI | N/A |
| TSPTFE-0625-062-50 | TSPTFE-0625-062.10 | 1/2″ | 5/8″ | .062″ | 3″ | 139 PSI | 50 PSI | N/A |
| TSPTFE-0750-062-50 | TSPTFE-0750-062.10 | 5/8″ | 3/4″ | .062″ | 6″ | 114 PSI | 41 PSI | N/A |
| TSPTFE-0750-031-50 | TSPTFE-0750-031.10 | 11/16″ | 3/4″ | .031″ | 8″ | 54 PSI | 19 PSI | N/A |
* Safety factor of 4 to 1 ratio burst pressure to working pressure. ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however
please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility to
ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable
regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This
product is priced and sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
