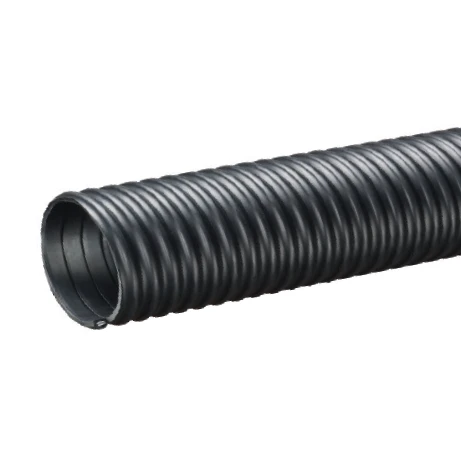

TR1-200X100 Tigerflex By Kuriyama | TR1 Series | Heavy Duty Wet Or Dry Material Handling Hose | 2" ID | SBR | 100ft Length

TR1-200X100 Tigerflex By Kuriyama | TR1 Series | Heavy Duty Wet Or Dry Material Handling Hose | 2″ ID | SBR | 100ft Length

Original price was: $377.00.Current price is: $96.99.

SKU: AG9ZZ 1487389851684 Category: Tags: , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Fly ash collection, Hydro excavation,
Industrial vacuum equipment, Material handling – heavy duty abrasive,
Milling machine scrap recovery, Rock, gravel, sand and crushed concrete vacuuming,
Sewer truck boom hose, Shot blast recovery, Slurry handling		 SAE Rating: N/A
Other Ratings: N/A Tube: SBR Rubber
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Superior Rubber Compounds – Tigerflexâ„¢ uses specially
    engineered compounds which provide the ideal combination
    of excellent abrasion resistance, light weight, flexibility,
    static dissipation and superior long-lasting durability.
  • Static Dissipative Tube – Specially formulated to help
    prevent the build-up of static electricity for added safety
    and to help keep material flowing smoothly.
  • “Cold-Flex” Materials – Hose remains flexible in
    sub-zero temperatures.
  • Convoluted Outer Cover – Provides increased
    hose flexibility.
Part Number ID ID OD OD Working Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Approx. Bending
Radius		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
TR1-150X100 1-1/2″ 38.1mm TBD TBD TBD TBD TBD TBD TBD 100ft TBD
TR1-200X100 2″ 50.8mm 2.38″ 60.5mm 32 PSI 23 PSI Full 26 in. Hg 1.5″ 100ft 0.50 lbs
TR1-200X50 2″ 50.8mm 2.38″ 60.5mm 32 PSI 23 PSI Full 26 in. Hg 1.5″ 100ft 0.50 lbs
TR1-250X100 2-1/2″ 63.4mm 3.05″ 77.5mm 30 PSI 22 PSI Full 26 in. Hg 2.0″ 100ft 0.84 lbs
TR1-250X50 2-1/2″ 63.4mm 3.05″ 77.5mm 30 PSI 22 PSI Full 26 in. Hg 2.0″ 50ft 0.84 lbs
TR1-300X100 3″ 76.2mm 3.56″ 90.5mm 28 PSI 20 PSI Full 26 in. Hg 2.5″ 100ft 1.00 lbs
TR1-300X50 3″ 76.2mm 3.56″ 90.5mm 28 PSI 20 PSI Full 26 in. Hg 2.5″ 50ft 1.00 lbs
TR1-400X100 4″ 101.6mm 4.67″ 118.5mm 26 PSI 18 PSI Full 26 in. Hg 4.5″ 100ft 1.70 lbs
TR1-400X50 4″ 101.6mm 4.67″ 118.5mm 26 PSI 18 PSI Full 26 in. Hg 4.5″ 50ft 1.70 lbs
TR1-500X100 5″ 126.8mm 5.73″ 145.5mm 21 PSI 16 PSI 28 in. Hg 24 in. Hg 5.0″ 100ft 2.38 lbs
TR1-500X50 5″ 126.8mm 5.73″ 145.5mm 21 PSI 16 PSI 28 in. Hg 24 in. Hg 5.0″ 50ft 2.38 lbs
TR1-600X100 6″ 153.4mm 6.88″ 174.8mm 19 PSI 13 PSI 28 in. Hg 24 in. Hg 9.5″ 100ft 3.20 lbs
TR1-600X50 6″ 153.4mm 6.88″ 174.8mm 19 PSI 13 PSI 28 in. Hg 24 in. Hg 9.5″ 50ft 3.20 lbs
TR1-600X20 6″ 153.4mm 6.88″ 174.8mm 19 PSI 13 PSI 28 in. Hg 24 in. Hg 9.5″ 20ft 3.20 lbs
TR1-800X50 8″ 204.8mm 9.18″ 233.2mm 19 PSI 13 PSI 27 in. Hg 23 in. Hg 14″ 50ft 5.70 lbs
TR1-800X20 8″ 204.8mm 9.18″ 233.2mm 19 PSI 13 PSI 27 in. Hg 23 in. Hg 14″ 20ft 5.70 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use.
*Actual service temperature range is application dependent.
Available with grounding wire upon request. Minimum order required, contact customer service for details.
