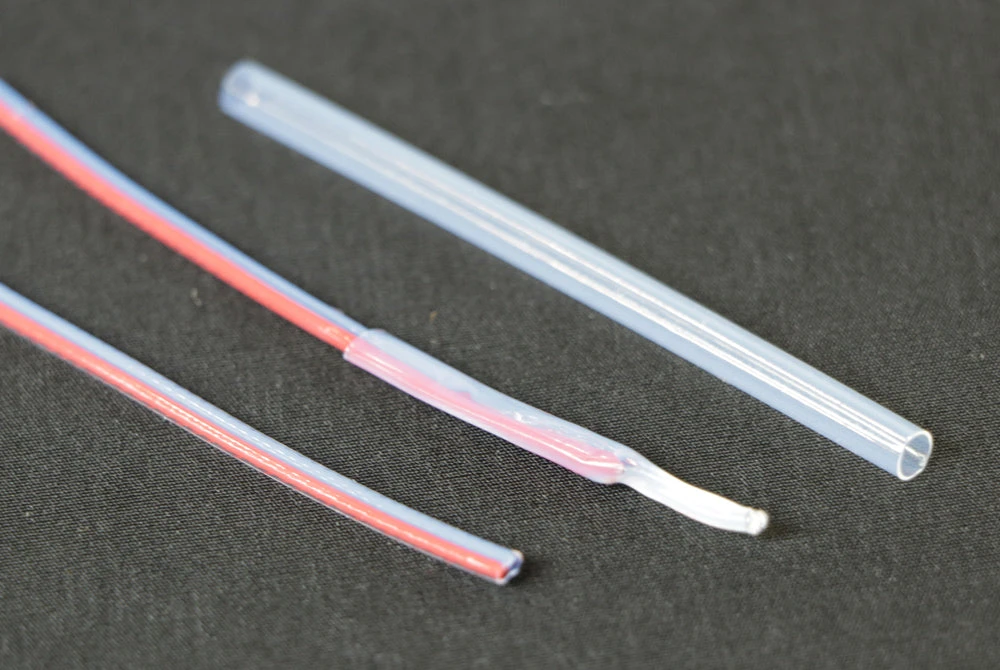

THFE4.141010 Versilon™ By Saint Gobain | 0.114″ ID Recovered X 0.141″ ID Expanded X .010″ Wall | FEP 1.3X Heat Shrink Tubing | 4′ Package Length

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7791369912485 Category: Bulk Hose & Covers Tags: Collection-lvl1_All Hose, Collection-lvl2_Tubing, Filter-All-Brand_Versilon, Filter-All-Series_Heat Shrink, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-AllHose-Color_Clear/Semi-Clear, Filter-AllHose-TubingConstruction_Florinated Ethylene Propylene, Id-0.114, Industrial Plastic Tubing, Matrixify2nd50kProducts, PackageLength:4', Saint Gobain Tubing, Tubing, Unit-ft-4, Versilon™ FEP 1.3X Heat Shrink Tubing, Wall:.010"

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Component encapsulation, Temperature sensor protection, Wire splicing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	100% Virgin FEP Resin
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-608-626°F (-320-330°C) to 500°F (260°C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	FDA Approved
Literature:	Versilon™ FEP Dual Heat Shrink Tubing (PDF)
Temperature resistance up to 205°C (401°F) High Chemical resistance Air tight barrier and moisture-proof WARNING: Versilon™ FEP Dual Heat Shrink Tubing is not intended as an implant material.

Part Number	Inside Diameter Expanded (in.)	Inside Diameter Recovered (in.)	Recovered Wall Thickness (in.)	AWG Size (American Wire Gauge)	Length
THFE4.045008	0.045″	0.039″	0.008″	20	4ft
THFE4.060008	0.060″	0.049″	0.008″	18	4ft
THFE4.115009	0.115″	0.089″	0.009″	12	4ft
THFE4.141010	0.414″	0.114″	0.010″	10	4ft
THFE4.158010	0.158″	0.124″	0.010″	9	4ft
THFE4.180010	0.180″	0.143″	0.010″	8	4ft
THFE4.290011	0.290″	0.226″	0.011″	4	4ft
THFE4.310011	0.310″	0.249″	0.011″	3	4ft
THFE4.365012	0.365″	0.280″	0.012″	2	4ft
THFE4.400012	0.400″	0.311″	0.012″	1	4ft
THFE4.440012	0.440″	0.349″	0.012″	0	4ft
Fractional Sizes
THFE4.500015	0.500″	0.383″	0.015″	3/8″	8ft
THFE4.580020	0.580″	0.448″	0.020″	7/16″	8ft
THFE4.666020	0.666″	0.510″	0.020″	1/2″	8ft
THFE4.830025	0.830″	0.637″	0.025″	5/8″	8ft
THFE4.100030	1.000″	0.764″	0.030″	3/4″	8ft
THFE4.117035	1.170″	0.891″	0.035″	7/8″	8ft
THFE4.133035	1.333″	1.020″	0.035″	1″	4ft
THFE4.200035	2.000″	1.520″	0.035″	1-1/2″	4ft

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
