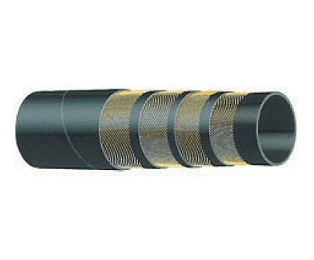

T740AA200X50 Alfagomma By Kuriyama | High Performance Concrete Pumping Hose | Black | 2″ ID | 2.72″ OD | 1275 PSI | 50ft Length | Reinforced Steel

Original price was: $308.00.Current price is: $96.99.

SPECIFICATIONS

Other Features:
Application:	Steel-reinforced concrete pumping hose – Special easy handling construction forconcrete placement at casting site.SAE Rating:N/A
Other Ratings:	N/A	Tube:	Black conductive NR – abrasion resistant.
Reinforcement:	High tensile steel cords.	Cover:	Black conductive SBR/NR blend – abrasion and ozone resistant.
Temperature Range:	-22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Branding: ALFAGOMMA – ITALY T740 85 BAR (1275 PSI) W. P.HEAVY DUTY CONCRETE PUMPING (in white letters) COUPLING SUGGESTIONS: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.

Part Number	Nominal ID		Nominal ID		Wall Thickness	Max Rec. Working Pressure	Min. Bend Radius at 68 deg. F	Standard Length	Weight
	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(in.)	(ft.)	(lbs./ft.)
T740AA200X100	2″	51mm	2.72″	69mm	9mm	1275 PSI	10″	100ft	1.44 lbs
T740AA200X50	2″	51mm	2.72″	69mm	9mm	1275 PSI	10″	50ft	1.44 lbs
T740AA250X100	2-1/2″	63mm	3.35″	85mm	11mm	1275 PSI	10-1/2″	100ft	2.25 lbs
T740AA250X50	2-1/2″	63mm	3.35″	85mm	11mm	1275 PSI	10-1/2″	50ft	2.25 lbs
T740AA300X100	3″	76mm	3.94″	100mm	12mm	1275 PSI	15″	100ft	3.06 lbs
T740AA300X50	3″	76mm	3.94″	100mm	12mm	1275 PSI	15″	50ft	3.06 lbs
T740AA400X100	4″	102mm	5.04″	128mm	13mm	1275 PSI	20″	100ft	4.72 lbs
T740AA400X50	4″	102mm	5.04″	128mm	13mm	1275 PSI	20″	50ft	4.72 lbs
T740AA500X50	5″	127mm	6.10″	155mm	14mm	1275 PSI	25″	50ft	6.95 lbs
