Sale!

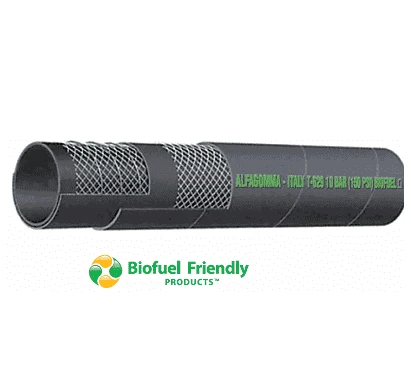

T629AA300X100 Alfagomma By Kuriyama | Black Biofuel Petroleum S & D Hose | 3″ ID | 3.46″ OD | 150 PSI | 100ft Length
Original price was: $329.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels – up to E98 and B100* with up to 60% aromatic content at ambient temperature. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black conductive synthetic rubber. |
| Reinforcement: | High tensile textile cords and steel helix wires. | Cover: | Black specially-blended neoprene – added resistance against abrasion, ozone and hydrocarbons. |
| Temperature Range: | -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal ID | Max Rec. Working Pressure | Vacuum HG | Min. Bending Radius | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (in.) | (ft.) | (lbs./ft.) | |
| T629AA075X100 | 3/4″ | 19mm | 1.14″ | 29mm | 150 PSI | 30″ | 3″ | 100ft | 0.41 lbs |
| T629AA100X100 | 1″ | 25mm | 1.38″ | 35mm | 150 PSI | 30″ | 4″ | 100ft | 0.51 lbs |
| T629AA125X100 | 1-1/4″ | 32mm | 1.65″ | 42mm | 150 PSI | 30″ | 5″ | 100ft | 0.60 lbs |
| T629AA150X100 | 1-1/2″ | 38mm | 1.89″ | 48mm | 150 PSI | 30″ | 6″ | 100ft | 0.71 lbs |
| T629AA200X100 | 2″ | 51mm | 2.40″ | 61mm | 150 PSI | 30″ | 8″ | 100ft | 0.91 lbs |
| T629AA250X100 | 2-1/2″ | 63mm | 2.95″ | 75mm | 150 PSI | 27″ | 10″ | 100ft | 1.42 lbs |
| T629AA300X100 | 3″ | 76mm | 3.46″ | 88mm | 150 PSI | 27″ | 12″ | 100ft | 1.71 lbs |
| T629AA400X100 | 4″ | 102mm | 4.57″ | 116mm | 150 PSI | 27″ | 16″ | 100ft | 2.38 lbs |
*Applies to Biodiesels which meet the ASTM D6751 criteria.
