T605AA200X100 Alfagomma By Kuriyama | Black Petroleum S & D Hose | Black | 2″ ID | 2.40″ OD | 150 PSI | 100ft Length

Original price was: $322.00.Current price is: $98.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black conductive NBR.

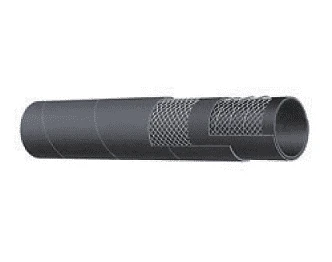

Reinforcement:	High tensile textile cords and highly flexible steel helix wires.	Cover:	Black CR – abrasion, ozone and hydrocarbon resistant.
Temperature Range:	-22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Note: T605 is not recommended for use on a reel Branding: ALFAGOMMA – ITALY T605 – 10 BAR (150 PSI) PETROLEUM – S & D (in red letters) Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.

Part Number	Nominal ID		Nominal OD		Max Rec. Working Pressure	Vacuum HG	Min. Bending Radius	Standard Length	Weight
	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(in. at 68 deg. F)	(ft.)	(lbs./ft.)
T605AA075X100	3/4″	19mm	1.14″	29mm	150 PSI	30″	3″	100ft	0.41 lbs
T605AA100X100	1″	25mm	1.38″	35mm	150 PSI	30″	4″	100ft	0.52 lbs
T605AA125X100	1-1/4″	32mm	1.65″	42mm	150 PSI	30″	5″	100ft	0.61 lbs
T605AA150X100	1-1/2″	38mm	1.89″	48mm	150 PSI	30″	6″	100ft	0.71 lbs
T605AA200X100	2″	51mm	2.40″	61mm	150 PSI	30″	8″	100ft	0.91 lbs
T605AA250X100	2-1/2″	63mm	2.95″	75mm	150 PSI	27″	10″	100ft	1.42 lbs
T605AA300X100	3″	76mm	3.46″	88mm	150 PSI	27″	12″	100ft	1.70 lbs
T605AA400X100	4″	102mm	4.57″	116mm	150 PSI	27″	16″	100ft	2.36 lbs
T605AA600X100	6″	152mm	6.61″	168mm	150 PSI	24″	24″	100ft	4.95 lbs
T605AA800X20	8″	203mm	8.70″	221mm	150 PSI	21″	32″	100ft	7.87 lbs
