Sale!

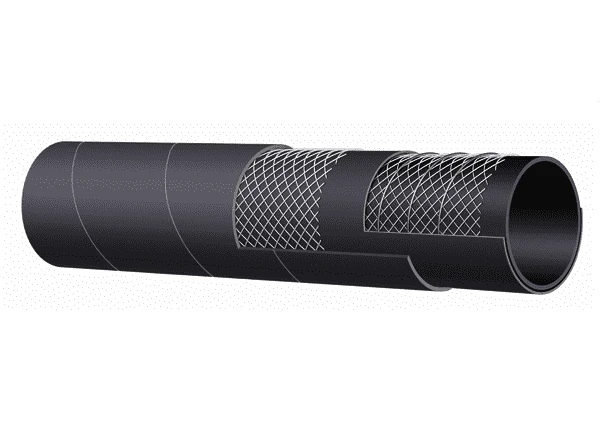

T604AA125X100 Alfagomma By Kuriyama | Flexor | SAE 100 R4 Oil Return Hose | Black | 1-1/4″ ID | 1.65″ OD | 200 PSI | 100ft Length

Original price was: $361.00.Current price is: $98.99.

SPECIFICATIONS

Other Features:
Application:	Low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum based hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black conductive NBR.
Reinforcement:	Textile reinforced with four spiral wire helix to prevent collapsing.	Cover:	Black CR – oil, fuel, weather, ozone and abrasion resistant.
Temperature Range:	-40 deg. F (-40 deg. C) to 212 deg. F (+100 deg. C) constant operation Maximum operating temperature: 257 deg. F (+125 deg. C). Air maximum temperature: 175deg. F (80 deg. C). Note: Operating temperatures in excess of 212 deg. F (+100 deg. C) may materially reduce the life of the hose.	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Branding: ALFAGOMMA – ITALY – T604 (PSI) – SAE 100 R4 – (SIZE) – Date (in white letters) Coupling Suggestions: Crimp-on permanent type or combination nipples with bands. Note: Hose cover does not need to be removed before attaching couplings.

Part Number	Nominal ID		Nominal OD		Max Rec. Working Pressure	Vacuum HG	Min. Bending Radius	Standard Length	Weight
	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(in. at 68 deg. F)	(ft.)	(lbs./ft.)
T604AA075X100	3/4″	19mm	1.14″	29mm	300 PSI	30″	2-1/4″	100ft	0.41 lbs
T604AA100X100	1″	25mm	1.38″	35mm	250 PSI	30″	3″	100ft	0.52 lbs
T604AA125X100	1-1/4″	32mm	1.65″	42mm	200 PSI	30″	3-3/4″	100ft	0.61 lbs
T604AA150X100	1-1/2″	38mm	1.89″	48mm	150 PSI	30″	4-1/2″	100ft	0.70 lbs
T604AA200X100	2″	51mm	2.40″	61mm	100 PSI	30″	6″	100ft	0.90 lbs
