SPECIFICATIONS
| Application: | Suction and transfer service for a variety of chemicals and acids. Will handle 98% of Existing Chemicals. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Transparent UHMWPE (Ultra High Molecular Weight Polyethylene). |

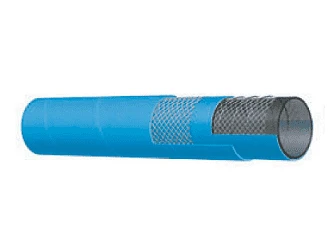

| Reinforcement: | Synthetic textile cords with 4 highly flexible steel helix wires. | Cover: | Blue EPDM – abrasion and ozone resistant. |
| Temperature Range: | -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Literature | Chemical Resistance Chart (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Max Rec. Working Pressure | Vacuum HG | Min. Bending Radius | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (in. at 68 deg. F) | (ft.) | (lbs./ft.) | |
| T509OE075X100 | 3/4″ | 19mm | 1.22″ | 31mm | 240 PSI | 27″ | 7-1/2″ | 100ft | 0.41 lbs |
| T509OE100X100 | 1″ | 25mm | 1.46″ | 37mm | 240 PSI | 27″ | 9″ | 100ft | 0.50 lbs |
| T509OE125X100 | 1-1/4″ | 32mm | 1.73″ | 44mm | 240 PSI | 27″ | 10-1/4″ | 100ft | 0.60 lbs |
| T509OE150X100 | 1-1/2″ | 38mm | 1.97″ | 50mm | 240 PSI | 27″ | 13-1/4″ | 100ft | 0.68 lbs |
| T509OE200X100 | 2″ | 51mm | 2.48″ | 63mm | 240 PSI | 27″ | 16-1/4″ | 100ft | 0.91 lbs |
| T509OE250X100 | 2-1/2″ | 63mm | 3.03″ | 77mm | 240 PSI | 27″ | 17-1/4″ | 100ft | 1.40 lbs |
| T509OE300X100 | 3″ | 76mm | 3.62″ | 92mm | 240 PSI | 24″ | 20-3/4″ | 100ft | 1.91 lbs |
| T509OE400X100 | 4″ | 102mm | 4.65″ | 118mm | 240 PSI | 24″ | 26-1/2″ | 100ft | 2.61 lbs |
