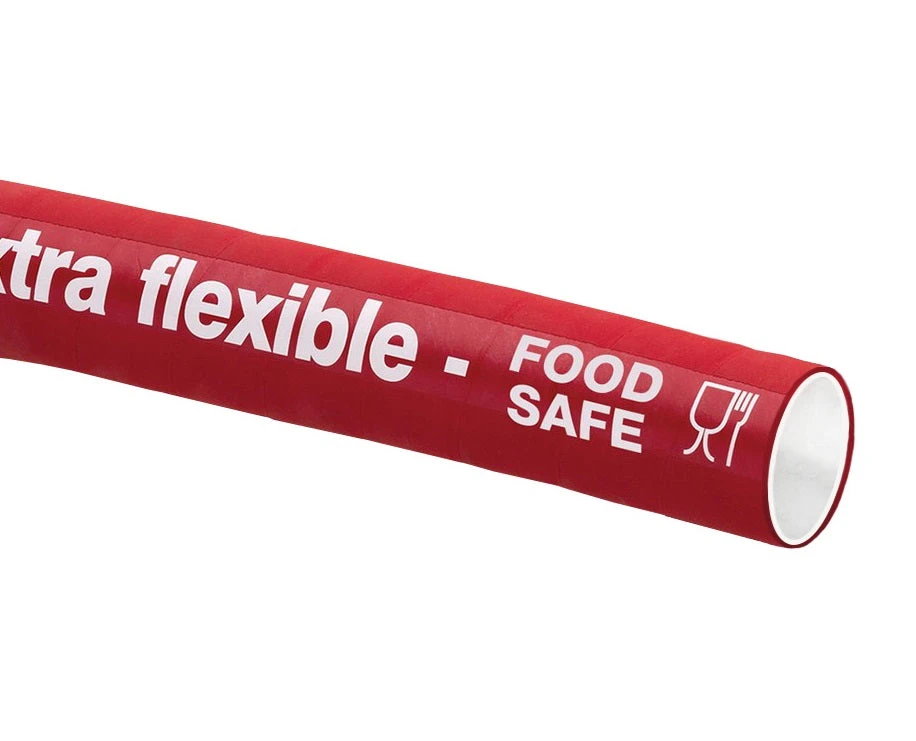

T422LH200X100 By Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2" ID | 100ft

T422LH200X100 By Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2" ID | 100ft - Image 2

T422LH200X100 By Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2″ ID | 100ft

Original price was: $346.00.Current price is: $96.99.

SKU: AG9ZZ 8508971286693 Categories: Bulk Hose & Covers, Industrial Hose Tags: Brewery Hoses, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Material Handling Hose, Created in 2024, FDA Liquid Food Transfer, Kuriyama Alfagomma Hoses, Liquid Food Transfer Hose, Matrixify2nd50kProducts, T422LH Series

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Brewery suction and discharge. Liquid food and alcoholic beverage suction and discharge, up to 190 proof or 95% alcohol content*. Versatile hose for applications requiring superb flexibility and light weight, while still maintaining high strength and durability.	SAE Rating:	N/A
Other Ratings:	3A (18-03), FDA	Tube:	White Chlorobutyl meeting 3A (18-03) and FDA requirements

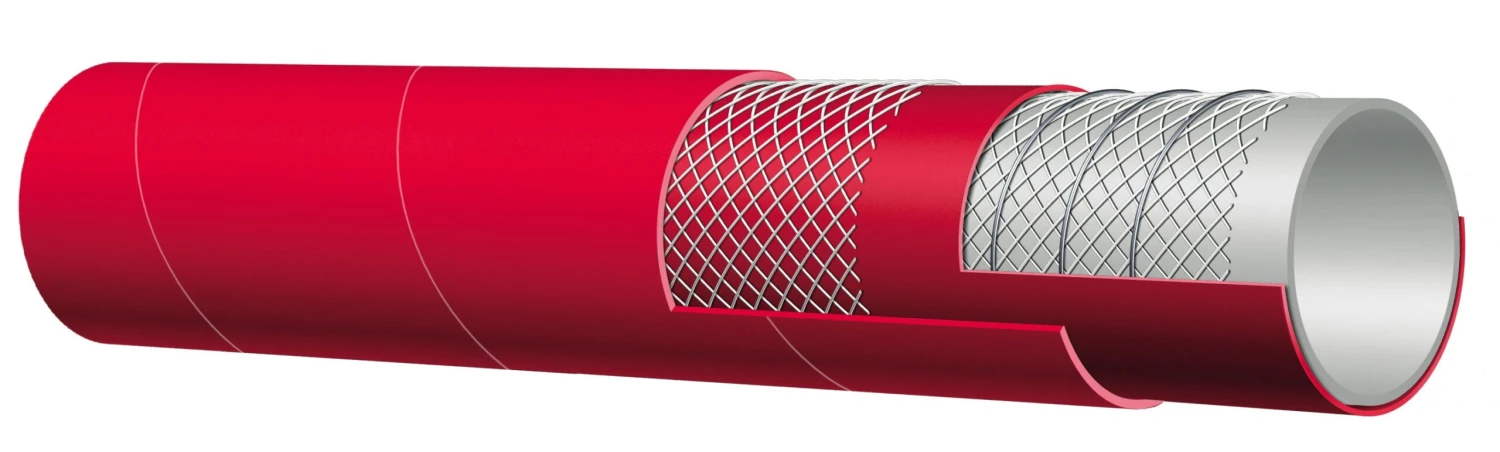

Reinforcement:	High tensile textile cords with specially designed embedded helix wires	Cover:	Red smooth NR/EPDM blend for abrasion and ozone resistance
Temperature Range:	-22°F (-30°C) to +226°F (+108°C)
Extreme Flexibility – Uniquely designed for maximum flexibility, bends easily around brewery equipment and works well in tight spaces. Lightweight – Up to 25% lighter weight than similar rubber hoses, while still maintaining 150 PSI working pressure. High Heat Resistance – Chlorobutyl tube capable of handling +226°F (+108°C) on a continuous basis. Allows for sterilization with +266°F (+130°C) steam for 30 minutes or with 5% soda solution. High Purity Tube – Will not impart odor or taste. Smooth Cover – Designed for easy cleaning, no gaps or crevices for dirt or bacteria to hide. Also provides a smooth surface for clamping.

*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are
discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of
measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].

Part Number	ID		OD		Max. Recommended Working Pressure (PSI)	Vacuum Rating (in. Hg)	Min. Bend Radius at 68°F	Standard Length Coil	Weight (Lbs/Ft)
Part Number	(in.)	(mm)	(in.)	(mm)	Max. Recommended Working Pressure (PSI)	Vacuum Rating (in. Hg)	Min. Bend Radius at 68°F	Standard Length Coil	Weight (Lbs/Ft)
T422LH100X100	1″	25mm	1.54″	39mm	150 PSI	30in. Hg	2″	100ft	0.66 lbs
T422LH125X100	1-1/4″	32mm	1.81″	46mm	150 PSI	30in. Hg	2-1/2″	100ft	0.81 lbs
T422LH150X100	1-1/2″	38mm	2.05″	52mm	150 PSI	30in. Hg	3″	100ft	0.93 lbs
T422LH200X100	2″	51mm	2.56″	65mm	150 PSI	30in. Hg	4″	100ft	1.21 lbs
T422LH250X100	2-1/2″	63mm	3.11″	79mm	150 PSI	30in. Hg	5″	100ft	1.81 lbs
T422LH300X100	3″	76mm	3.62″	92mm	150 PSI	27in. Hg	6″	100ft	2.30 lbs
