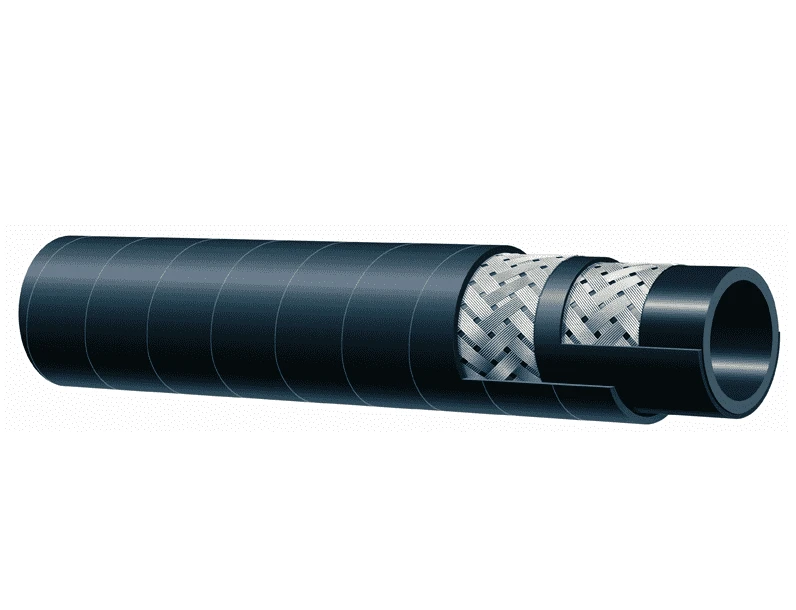

T341AA200X50 Alfagomma By Kuriyama | Braided Steam Hose | Black | 2″ ID | 2.64″ OD | 270 PSI | Chlorobutyl | 50ft Length

Original price was: $307.00.Current price is: $96.99.

SPECIFICATIONS

Other Features:
Application:	The transfer of saturated and superheated steam up to 270 PSI and max 430 deg. F (+220 deg. C) in shipyards, chemical plants and industrial applications. Proper draining of steam hose after each use will increase service life. Not recommended for washdown applications where detergent or oils are present.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black extruded CIIR – heat-resistant. Not for steam cleaner use.
Reinforcement:	High tensile steel wire braids.	Cover:	Red or Black EPDM – heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting.
Temperature Range:	-40 deg. F (-40 deg. C) to 430 deg. F (+220 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Branding:ALFAGOMMA – ITALY T341 18 BAR (270 PSI) STEAM – DRAIN AFTER USE – QTR/YEAR (embossed) Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clampsSteel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps. Universal quick-acting couplings should not be used with steam hose. Warning: Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.

Part Number	Color	Nominal ID		Nominal OD		Max Rec. Working Pressure	Min. Bend Radius at 68 deg. F	Standard Length	Weight
		(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(ft.)	(lbs./ft.)
T341AH050X50	Red	1/2″	13mm	0.91″	23mm	270 PSI	5″	50ft	0.29 lbs
T341AH075X50	Red	3/4″	19mm	1.22″	31mm	270 PSI	7-1/2″	50ft	0.53 lbs
T341AH0100X50	Red	1″	25mm	1.50″	38mm	270 PSI	10″	50ft	0.62 lbs
T341AH0125X50*	Red	1-1/4″	32mm	1.81″	46mm	270 PSI	12-1/2″	50ft	0.89 lbs
T341AH0150X50*	Red	1-1/2″	38mm	2.05″	52mm	270 PSI	15″	50ft	0.97 lbs
T341AH0200X50*	Red	2″	51mm	2.64″	67mm	270 PSI	20″	50ft	1.44 lbs
T341AA050X50	Black	1/2″	13mm	0.91″	23mm	270 PSI	5″	50ft	0.29 lbs
T341AA075X50	Black	3/4″	19mm	1.22″	31mm	270 PSI	7-1/2″	50ft	0.53 lbs
T341AA0100X50	Black	1″	25mm	1.50″	38mm	270 PSI	10″	50ft	0.62 lbs
T341AA0125X50*	Black	1-1/4″	32mm	1.81″	46mm	270 PSI	12-1/2″	50ft	0.89 lbs
T341AA0150X50*	Black	1-1/2″	38mm	2.05″	52mm	270 PSI	15″	50ft	0.97 lbs
T341AA0200X50*	Black	2″	51mm	2.64″	67mm	270 PSI	20″	50ft	1.44 lbs

*T341AA/AH 1-1/4″, 1-1/2″ & 2″ not suitable for “Ship to Shore” service.
