T30-6X8 By Couplamatic | T Series Coupling | 3/8" Hose ID X 13/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack Of 10

T30-6X8 By Couplamatic | T Series Coupling | 3/8″ Hose ID X 13/16×16 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack Of 10

Original price was: $62.91.Current price is: $44.04.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

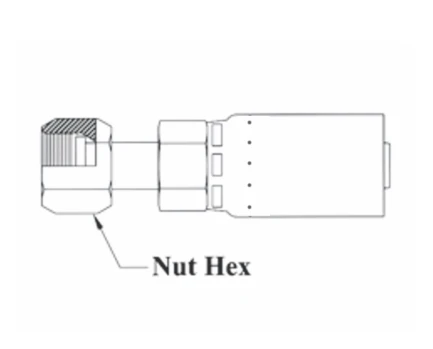

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Weatherhead E
T30-4X4	1/4″	9/16×18	1/4″	11/16″	04E-S64
T30-4X6	1/4″	11/16×16	3/8″	13/16″	04E-S66
T30-5X6	5/16″	11/16×16	3/8″	13/16″	05E-S66
T30-6X6	3/8″	11/16×16	3/8″	13/16″	06E-S66
T30-6X8	3/8″	13/16×16	1/2″	15/16″	06E-S68
T30-8X8	1/2″	13/16×16	1/2″	15/16″	08E-S68
T30-8X10	1/2″	1×14	5/8″	1-1/8″	08E-S70
T30-12X12	3/4″	1-3/16×12	3/4″	1-3/8″	12E-S72
T30-16X16	1″	1-7/16×12	1″	1-5/8″	16E-S76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
