SPECIFICATIONS
| Application: | Suction and discharge of water for irrigation andconstruction. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black SBR. |

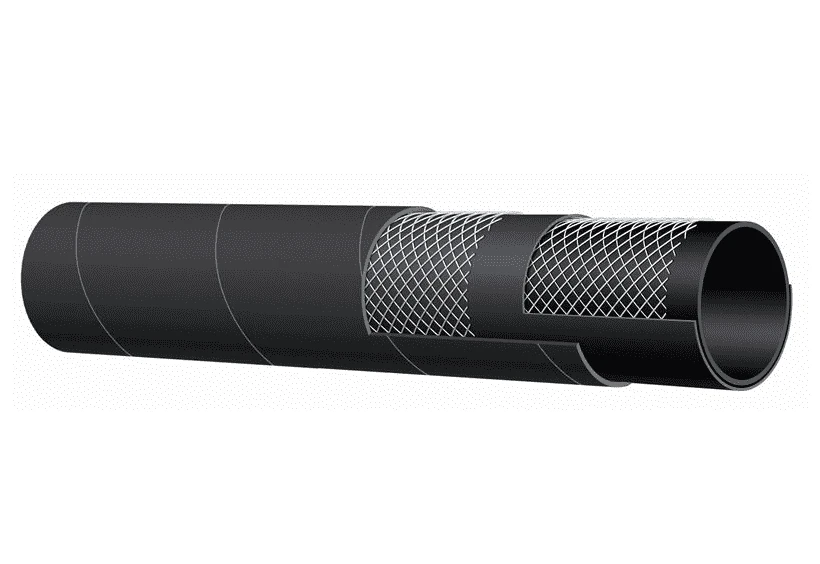

| Reinforcement: | Spiralled high tensile textile cords and flexible steel helix wires. | Cover: | Black SBR – ozone and abrasion-resistant. |
| Temperature Range: | -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Max Rec.Working Pressure | Vacuum | Min. Bend Radiusat 68 deg. F | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in. Hg) | (in.) | (ft.) | (lbs./ft.) | |
| T204AA600X100 | 6″ | 152mm | 6.54″ | 166mm | 75 PSI | 24″ | 30″ | 100ft | 4.13 lbs |
| T204AA600X20 | 6″ | 152mm | 6.54″ | 166mm | 75 PSI | 24″ | 30″ | 20ft | 4.13 lbs |
| T204AA600X25 | 6″ | 152mm | 6.54″ | 166mm | 75 PSI | 24″ | 30″ | 25ft | 4.13 lbs |
| T204AA600X50 | 6″ | 152mm | 6.54″ | 166mm | 75 PSI | 24″ | 30″ | 50ft | 4.13 lbs |
| T204AA800X20 | 8″ | 203mm | 8.70″ | 221mm | 75 PSI | 21″ | 40″ | 20ft | 7.06 lbs |
| T204AA800X25 | 8″ | 203mm | 8.70″ | 221mm | 75 PSI | 21″ | 40″ | 25ft | 7.06 lbs |
