T202AA250X100 Alfagomma By Kuriyama | General Purpose Water S & D Hose | Black | 2- 1/2″ ID | 2.95″ OD | 150 PSI | EPDM | 100ft Length

Original price was: $394.00.Current price is: $96.99.

Other Features:
Application:	Suction and discharge of non-corrosive liquids for irrigation, construction, fertilizers and lasso acid solutions.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black EPDM

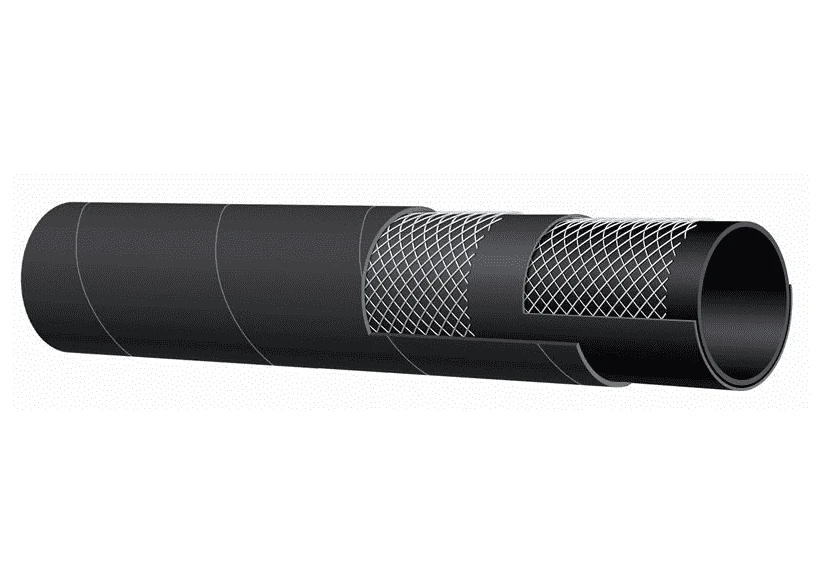

Reinforcement:	Spiralled high tensile textile cords and highly flexible steel helix wire/wires.	Cover:	Black EPDM – abrasion and ozone resistant.
Temperature Range:	-22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Branding: ALFAGOMMA – Alfagomma – Italy – T202 10 BAR (150 PSI)GENERAL PURPOSE EPDM (in green letters) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.

Part Number	Nominal ID		Nominal OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68 deg. F	Standard Length	Weight
	(in.)	(mm)	(in.)	(mm)	PSI	(in. Hg)	(in.)	(ft.)	(lbs./ft.)
T202AA100X100	1″	25mm	1.38″	35mm	150 PSI	30″	4″	100ft	0.47 lbs
T202AA125X100	1-1/4″	32mm	1.65″	42mm	150 PSI	30″	5″	100ft	0.56 lbs
T202AA150X100	1-1/2″	38mm	1.89″	48mm	150 PSI	30″	6″	100ft	0.64 lbs
T202AA200X100	2″	51mm	2.40″	61mm	150 PSI	30″	8″	100ft	0.84 lbs
T202AA250X100	2-1/2″	63mm	2.95″	75mm	150 PSI	27″	10″	100ft	1.20 lbs
T202AA300X100	3″	76mm	3.46″	88mm	150 PSI	27″	12″	100ft	1.44 lbs
T202AA350X100	3-1/2″	90mm	4.02″	102mm	150 PSI	27″	14″	100ft	1.82 lbs
T202AA400X100	4″	102mm	4.49″	114mm	150 PSI	27″	16″	100ft	2.03 lbs
T202AA500X100	5″	127mm	5.55″	141mm	150 PSI	24″	25″	100ft	3.18 lbs
T202AA500X50	5″	127mm	5.55″	141mm	150 PSI	24″	25″	50ft	3.18 lbs
T202AA600X100	6″	152mm	6.54″	166mm	150 PSI	24″	30″	100ft	1.01 lbs
T202AA600X50	6″	152mm	6.54″	166mm	150 PSI	24″	30″	50ft	1.01 lbs
