Sale!

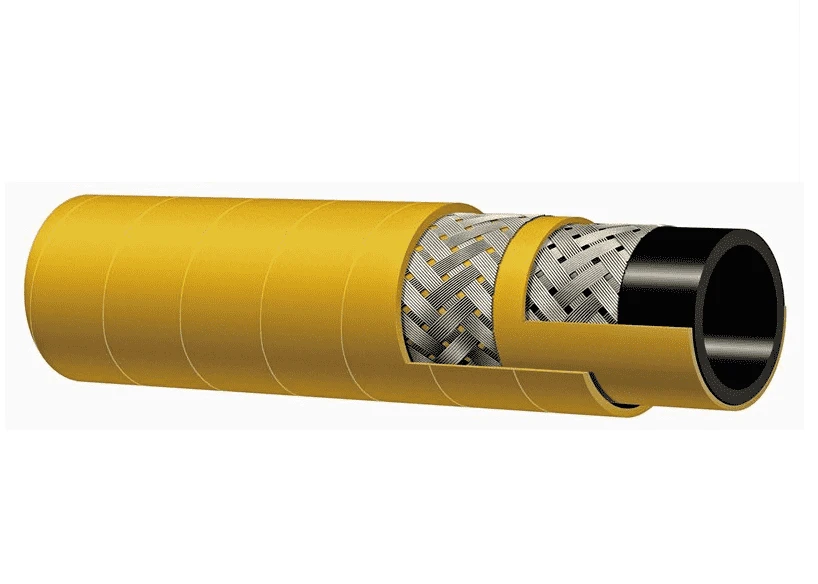

T146AK200X50 Alfagomma By Kuriyama | Braided MSHA Mine Spray Hose | Yellow | 2" ID | 2.48" OD | 1000 PSI | 50ft Length

T146AK200X50 Alfagomma By Kuriyama | Braided MSHA Mine Spray Hose | Yellow | 2″ ID | 2.48″ OD | 1000 PSI | 50ft Length

Original price was: $315.00.Current price is: $96.99.

SKU: AG9ZZ 1486434467876 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Underground mine water spray for dust control. Also
usable on continuous mining machinery.

 SAE Rating: N/A
Other Ratings: N/A Tube: Black Extruded SBR/NBR blend – oil mist resistant.
Reinforcement: High tensile braided steel wire. Cover: Yellow SBR/NBR blend – abrasion, ozone,
hydrocarbon and fire resistant – pin pricked.
Temperature Range: -22 deg. F (-30 deg. C) to 200 deg. F (+90 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA – ALFAGOMMA – ITALY – 70 BAR (1000 PSI) MINE SPRAY MSHA IC – 152/6 (embossed)
  • COUPLING SUGGESTIONS: Permanently attached crimped hydraulic couplings.
Part Number Nominal ID Nominal ID Max Rec.
Working Pressure		 Min. Bend Radius
at 68 deg. F		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T146AK075X50 3/4″ 19mm 1.10″ 28mm 1000 PSI 3-3/4″ 50ft 0.44 lbs
T146AK075X100 3/4″ 19mm 1.10″ 28mm 1000 PSI 3-3/4″ 100ft 0.44 lbs
T146AK100X50 1″ 25mm 1.34″ 34mm 1000 PSI 5″ 50ft 0.58 lbs
T146AK100X100 1″ 25mm 1.34″ 34mm 1000 PSI 5″ 100ft 0.58 lbs
T146AK125X50 1-1/4″ 32mm 1.61″ 41mm 1000 PSI 6-1/4″ 50ft 0.75 lbs
T146AK125X100 1-1/4″ 32mm 1.61″ 41mm 1000 PSI 6-1/4″ 100ft 0.75 lbs
T146AK150X50 1-1/2″ 38mm 1.93″ 49mm 1000 PSI 7-1/2″ 50ft 1.07 lbs
T146AK150X100 1-1/2″ 38mm 1.93″ 49mm 1000 PSI 7-1/2″ 100ft 1.07 lbs
T146AK200X50 2″ 51mm 2.48″ 63mm 1000 PSI 10″ 50ft 1.47 lbs
T146AK200X100 2″ 51mm 2.48″ 63mm 1000 PSI 10″ 100ft 1.47 lbs
