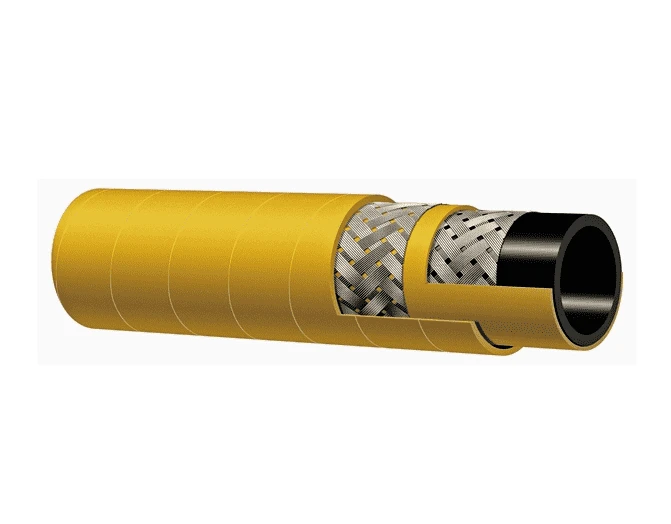

T142AK200X50 Alfagomma By Kuriyama | High Temperature | Oil Resistant Braided Air Hose | Yellow | 2″ ID | 2.52″ OD | 600 PSI | 50ft Length | Reinforced Steel

Original price was: $304.00.Current price is: $95.99.

SPECIFICATIONS

Other Features:
Application:	High pressure air for mines and quarries. Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black Extruded NBR (RMA Class A) – oil mist resistant.
Reinforcement:	High tensile steel wire braids.	Cover:	Yellow SBR/NBR – abrasion, ozone, hydrocarbon and flame resistant – pin pricked.
Temperature Range:	-40 deg. F (-40 deg. C) to 242 deg. F (+120 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Branding: ALFAGOMMA – ITALY T142 HIGH TEMP STEEL AIR – OIL RESISTANT (embossed) Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.

Part Number	Nominal ID		Nominal OD		Max Rec. Working Pressure	Min. Bend Radius at 68 deg. F	Standard Length	Weight
	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(ft.)	(lbs./ft.)
T142AK200X100	2″	51mm	2.52″	64mm	600 PSI	10″	100ft	1.53 lbs
T142AK200X50	2″	51mm	2.52″	64mm	600 PSI	10″	50ft	1.53 lbs
T142AK250X100	2-1/2″	63mm	3.03″	77mm	450 PSI	12-1/2″	100ft	1.93 lbs
T142AK300X100	3″	76mm	3.54″	90mm	450 PSI	15″	100ft	2.38 lbs
T142AK300X50	3″	76mm	3.54″	90mm	450 PSI	15″	50ft	2.38 lbs
