The Weatherhead Coll-O-Crimp Super I Press is a versatile machine ideal for your shop, factory, construction, and mine locations.
Big capacity combined with lever-activated crimping gives you wide coverage and a quick and simple way to make factory-quality hose assemblies. Capacity
3/16″ I.D. 1 fiber braid through 1 1/4″ 6 spiral hose*;for hose other than 4 and 6 spiral, conversion tooling is required.
*Will not crimp 4SP/6SP ends Mounting Bench or C-40X Cabinet Size
22″ high, 10″ wide, 20 1/2″ deep Weight 210 lbs. CAUTION
The Weatherhead Coll-O-Crimp power source has the pressure relief valve set at 4000 to 4200 psi. Damage to the press will result if higher pressures are used and warranty will be voided. Includes one each of the following (with respective pump):
| Catalog Number | Description |
|---|---|
| T-421U | 220V or 110V Electric Pump |

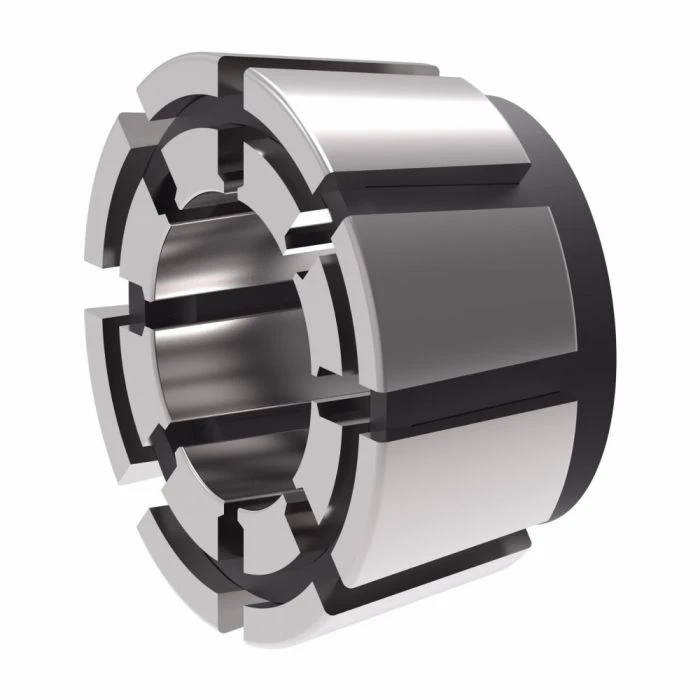

| T-400-2C | ‘U’ Series Collet – 1/4″ |
| T-400-3C | ‘U’ Series Collet – 3/8″ |
| T-400-4C | ‘U’ Series Collet – 1/2″ |
| T-400-5C | ‘U’ Series Collet – 3/4″ |
| T-400-10 | Spacer Ring – Black |
| T-400-62 | Spacer Ring – Yellow |
| T-410-22 | 36″ Pump to Press Hose Assembly |
