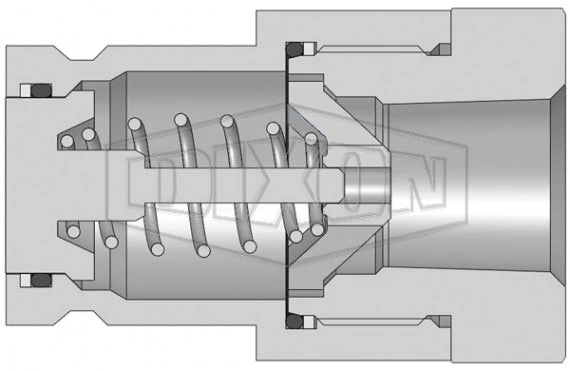

ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel - Image 2
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House st f 20nipple 203d 20half color lg watermarked ca158860 12b3 4936 949e fcd7c25dd62a

ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1″ Female NPTF X 1″ Heavy-Duty Flushface | Plug | Steel

Original price was: $61.64.Current price is: $43.15.

SKU: AG9ZZ 1482432708644 Categories: , Tags: , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Compatibility & Interchange:
  • Interchangeable with Parker/Snap-Tite 71-Series
Construction:
  • Machined components are manufactured using solid steel or 316 stainless bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Steel plugs are hardened to provide heavy-duty performance.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40Ā°F to 250Ā°F (-40Ā°C to 121Ā°C).
  • All couplers and plugs incorporate PTFE anti-extrusion rings to protect the seal components from dynamic impulse damage.
Note:
  • Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications
    and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.
Additional Information:
  • For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF
ST-Series | Heavy-Duty Flushface Rated Pressure Chart
Body Size Steel Coupler/Plug Coupled 316 Stainless Coupler/Plug Coupled
Maximum Working Burst Maximum Working Burst
1/4″ 10,000 PSI
(700 bar)		 27,300 PSI
(1,800 bar)		 5,000 PSI
(345 bar)		 28,000 PSI
(1,900 bar)
3/8″ 10,000 PSI
(700 bar)		 27,300 PSI
(1,800 bar)		 5,000 PSI
(345 bar)		 28,000 PSI
(1,900 bar)
1/2″ 10,000 PSI
(700 bar)		 22,500 PSI
(1,500 bar)		 5,000 PSI
(345 bar)		 25,000 PSI
(1,700 bar)
3/4″ 7,500 PSI
(500 bar)		 20,200 PSI
(1,400 bar)		 5,000 PSI
(345 bar)		 22,800 PSI
(1,550 bar)
1″ 7,500 PSI
(500 bar)		 19,400 PSI
(1,300 bar)		 4,000 PSI
(275 bar)		 18,500 PSI
(1,250 bar)
1″-V2 8,500 PSI
(585 bar)		 25,900 PSI
(1,750 bar)		 – –
2″ 5,000 PSI
(345 bar)		 16,000 PSI
(1,100 bar)		 3,000 PSI
(200 bar)		 10,000 PSI
(700 bar)
ST-Series | Heavy-Duty Flushface Plug (Female Threads)
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House Dixon Quick Disconnect ST Series Heavy Duty Flushface Plug Fem NPTF BSPP ORB
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
ST2F2 Plug/Male 1/4″ 1/4″ – 18 Female NPTF Steel 1.84″
(46.7mm)		 0.90″
(22.9mm)		 13/16″
ST2F2-SS Plug/Male 1/4″ 1/4″ – 18 Female NPTF 316 Stainless 1.84″
(46.7mm)		 0.90″
(22.9mm)		 13/16″
ST2BF2 Plug/Male 1/4″ 1/4″ – 19 Female BSPP Steel 1.84″
(46.7mm)		 0.90″
(22.9mm)		 13/16″
ST2BF2-SS Plug/Male 1/4″ 1/4″ – 19 Female BSPP 316 Stainless 1.84″
(46.7mm)		 0.90″
(22.9mm)		 13/16″
ST3F2 Plug/Male 3/8″ 1/4″ – 18 Female NPTF Steel 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3F3 Plug/Male 3/8″ 3/8″ – 18 Female NPTF Steel 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3F3-SS Plug/Male 3/8″ 3/8″ – 18 Female NPTF 316 Stainless 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3BF3 Plug/Male 3/8″ 3/8″ – 19 Female BSPP Steel 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3BF3-SS Plug/Male 3/8″ 3/8″ – 19 Female BSPP 316 Stainless 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3F4 Plug/Male 3/8″ 1/2″ – 14 Female NPTF Steel 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3F4-SS Plug/Male 3/8″ 1/2″ – 14 Female NPTF 316 Stainless 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3BF4 Plug/Male 3/8″ 1/2″ – 14 Female BSPP Steel 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST3BF4-SS Plug/Male 3/8″ 1/2″ – 14 Female BSPP 316 Stainless 2.32″
(58.9mm)		 1.48″
(37.6mm)		 1″
ST4F4 Plug/Male 1/2″ 1/2″ – 14 Female NPTF Steel 2.37″
(60.2mm)		 1.65″
(41.9mm)		 1-1/2″
ST4F4-SS Plug/Male 1/2″ 1/2″ – 14 Female NPTF 316 Stainless 2.37″
(60.2mm)		 1.65″
(41.9mm)		 1-1/2″
ST4BF4 Plug/Male 1/2″ 1/2″ – 14 Female BSPP Steel 2.37″
(60.2mm)		 1.65″
(41.9mm)		 1-1/2″
ST4BF4-SS Plug/Male 1/2″ 1/2″ – 14 Female BSPP 316 Stainless 2.37″
(60.2mm)		 1.65″
(41.9mm)		 1-1/2″
ST4OF4 Plug/Male 1/2″ 3/4″ – 16 Female ORB Steel 2.37″
(60.2mm)		 1.65″
(41.9mm)		 1-1/2″
ST6F6 Plug/Male 3/4″ 3/4″ – 14 Female NPTF Steel 2.96″
(75.2mm)		 1.92″
(48.8mm)		 1-3/4″
ST6F6-SS Plug/Male 3/4″ 3/4″ – 14 Female NPTF 316 Stainless 2.96″
(75.2mm)		 1.92″
(48.8mm)		 1-3/4″
ST6BF6 Plug/Male 3/4″ 3/4″ – 14 Female BSPP Steel 2.96″
(75.2mm)		 1.92″
(48.8mm)		 1-3/4″
ST6BF6-SS Plug/Male 3/4″ 3/4″ – 14 Female BSPP 316 Stainless 2.96″
(75.2mm)		 1.92″
(48.8mm)		 1-3/4″
ST6OF6 Plug/Male 3/4″ 1-1/16″ – 12 Female ORB Steel 2.96″
(75.2mm)		 1.92″
(48.8mm)		 1-3/4″
ST8F8 Plug/Male 1″ 1″ – 11-1/2 Female NPTF Steel 3.22″
(81.8mm)		 2.10″
(53.3mm)		 1-7/8″
ST8F8-SS Plug/Male 1″ 1″ – 11-1/2 Female NPTF 316 Stainless 3.22″
(81.8mm)		 2.10″
(53.3mm)		 1-7/8″
ST8BF8 Plug/Male 1″ 1″ – 11 Female BSPP Steel 3.22″
(81.8mm)		 2.10″
(53.3mm)		 1-7/8″
ST8BF8-SS Plug/Male 1″ 1″ – 11 Female BSPP 316 Stainless 3.22″
(81.8mm)		 2.10″
(53.3mm)		 1-7/8″
ST8OF8 Plug/Male 1″ 1-5/16″ – 12 Female ORB Steel 3.22″
(81.8mm)		 2.10″
(53.3mm)		 1-7/8″
ST8F10 Plug/Male 1″ 1-1/4″ – 11-1/2 Female NPTF Steel 3.48″
(88.4mm)		 2.20″
(55.9mm)		 2″
ST8F10-SS Plug/Male 1″ 1-1/4″ – 11-1/2 Female NPTF 316 Stainless 3.48″
(88.4mm)		 2.20″
(55.9mm)		 2″
ST8BF10 Plug/Male 1″ 1-1/4″ – 11 Female BSPP Steel 3.48″
(88.4mm)		 2.20″
(55.9mm)		 2″
ST8BF10-SS Plug/Male 1″ 1-1/4″ – 11 Female BSPP 316 Stainless 3.48″
(88.4mm)		 2.20″
(55.9mm)		 2″
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House Dixon Quick Disconnect ST Series Heavy Duty Flushface Plug Old Style Fem NPTF BSPP ORB
ST16F12 Plug/Male 2″ 1-1/2″ – 11-1/2 Female NPTF Steel 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST16BF12 Plug/Male 2″ 1-1/2″ – 11 Female BSPP Steel 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST16OF12 Plug/Male 2″ 1-7/8″ – 12 Female ORB Steel 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST16F16 Plug/Male 2″ 2″ – 11-1/2 Female NPTF Steel 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST16F16-SS Plug/Male 2″ 2″ – 11-1/2 Female NPTF 316 Stainless 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST16BF16 Plug/Male 2″ 2″ – 11 Female BSPP Steel 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST16OF16 Plug/Male 2″ 2-1/2″ – 12 Female ORB Steel 4.50″
(114.3mm)		 3.48″
(88.4mm)		 3-1/4″
ST-Series | Heavy-Duty Flushface ‘Old Style’ Plug (Female Threads)
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House Dixon Quick Disconnect ST Series Heavy Duty Flushface Plug Old Style Fem NPTF BSPP ORB
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
ST8F8-V2 Plug/Male 1″ 1″ – 11-1/2 Female NPTF Steel 3.26″
(82.8mm)		 1.92″
(48.8mm)		 1-3/4″
ST8BF8-V2 Plug/Male 1″ 1″ – 11 Female BSPP Steel 3.26″
(82.8mm)		 1.92″
(48.8mm)		 1-3/4″
ST8F10-V2 Plug/Male 1″ 1-1/4″ – 11-1/2 Female NPTF Steel 3.50″
(88.9mm)		 1.98″
(50.3mm)		 2″
ST-Series | Heavy-Duty Flushface Coupler (Female Threads)
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House Dixon Quick Disconnect ST Series Heavy Duty Flushface Coupler Fem NPTF BSPP ORB
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2STF2 Socket/Female 1/4″ 1/4″ – 18 Female NPTF Steel 1.96″
(49.8mm)		 1.23″
(31.2mm)		 15/16″
2STF2-SS Socket/Female 1/4″ 1/4″ – 18 Female NPTF 316 Stainless 1.96″
(49.8mm)		 1.23″
(31.2mm)		 15/16″
2STBF2 Socket/Female 1/4″ 1/4″ – 19 Female BSPP Steel 1.96″
(49.8mm)		 1.23″
(31.2mm)		 15/16″
2STBF2-SS Socket/Female 1/4″ 1/4″ – 19 Female BSPP 316 Stainless 1.96″
(49.8mm)		 1.23″
(31.2mm)		 15/16″
3STF2 Socket/Female 3/8″ 1/4″ – 18 Female NPTF Steel 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STF3 Socket/Female 3/8″ 3/8″ – 18 Female NPTF Steel 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STF3-SS Socket/Female 3/8″ 3/8″ – 18 Female NPTF 316 Stainless 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STBF3 Socket/Female 3/8″ 3/8″ – 19 Female BSPP Steel 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STBF3-SS Socket/Female 3/8″ 3/8″ – 19 Female BSPP 316 Stainless 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STF4 Socket/Female 3/8″ 1/2″ – 14 Female NPTF Steel 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STBF4 Socket/Female 3/8″ 1/2″ – 14 Female BSPP Steel 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
3STBF4-SS Socket/Female 3/8″ 1/2″ – 14 Female BSPP 316 Stainless 2.36″
(59.9mm)		 1.60″
(40.6mm)		 1-3/16″
4STF4 Socket/Female 1/2″ 1/2″ – 14 Female NPTF Steel 2.77″
(70.4mm)		 1.98″
(50.3mm)		 1-1/2″
4STF4-SS Socket/Female 1/2″ 1/2″ – 14 Female NPTF 316 Stainless 2.77″
(70.4mm)		 1.98″
(50.3mm)		 1-1/2″
4STBF4 Socket/Female 1/2″ 1/2″ – 14 Female BSPP Steel 2.77″
(70.4mm)		 1.98″
(50.3mm)		 1-1/2″
4STBF4-SS Socket/Female 1/2″ 1/2″ – 14 Female BSPP 316 Stainless 2.77″
(70.4mm)		 1.98″
(50.3mm)		 1-1/2″
4STOF4 Socket/Female 1/2″ 3/4″ – 16 Female ORB Steel 2.77″
(70.4mm)		 1.98″
(50.3mm)		 1-1/2″
6STF6 Socket/Female 3/4″ 3/4″ – 14 Female NPTF Steel 3.03″
(77.0mm)		 2.35″
(59.7mm)		 1-3/4″
6STF6-SS Socket/Female 3/4″ 3/4″ – 14 Female NPTF 316 Stainless 3.03″
(77.0mm)		 2.35″
(59.7mm)		 1-3/4″
6STBF6 Socket/Female 3/4″ 3/4″ – 14 Female BSPP Steel 3.03″
(77.0mm)		 2.35″
(59.7mm)		 1-3/4″
6STBF6-SS Socket/Female 3/4″ 3/4″ – 14 Female BSPP 316 Stainless 3.03″
(77.0mm)		 2.35″
(59.7mm)		 1-3/4″
6STOF6 Socket/Female 3/4″ 1-1/16″ – 12 Female ORB Steel 3.03″
(77.0mm)		 2.35″
(59.7mm)		 1-3/4″
8STF8 Socket/Female 1″ 1″ – 11-1/2 Female NPTF Steel 3.33″
(84.6mm)		 2.73″
(69.3mm)		 2″
8STF8-SS Socket/Female 1″ 1″ – 11-1/2 Female NPTF 316 Stainless 3.33″
(84.6mm)		 1.55″
(39.3mm)		 2″
8STBF8 Socket/Female 1″ 1″ – 11 Female BSPP Steel 3.33″
(84.6mm)		 2.73″
(69.3mm)		 2″
8STBF8-SS Socket/Female 1″ 1″ – 11 Female BSPP 316 Stainless 3.33″
(84.6mm)		 2.73″
(69.3mm)		 2″
8STOF8 Socket/Female 1″ 1″-5/16-12 Female ORB Steel 3.33″
(84.6mm)		 2.73″
(69.3mm)		 2″
8STF10 Socket/Female 1″ 1-1/4″ – 11-1/2 Female NPTF Steel 3.67″
(93.2mm)		 2.73″
(69.3mm)		 2″
8STBF10 Socket/Female 1″ 1-1/4″ – 11 Female BSPP Steel 3.67″
(93.2mm)		 2.73″
(69.3mm)		 2″
8STBF10-SS Socket/Female 1″ 1-1/4″ – 11 Female BSPP 316 Stainless 3.67″
(93.2mm)		 2.73″
(69.3mm)		 2″
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House Dixon Quick Disconnect ST Series Heavy Duty Flushface Coupler Old Style Fem NPTF BSPP ORB
16STF12 Socket/Female 2″ 1-1/2″ – 11-1/2 Female NPTF Steel 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
16STBF12 Socket/Female 2″ 1-1/2″ – 11 Female BSPP Steel 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
16STOF12 Socket/Female 2″ 1-7/8″ – 12 Female ORB Steel 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
16STF16 Socket/Female 2″ 2″ – 11-1/2 Female NPTF Steel 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
16STF16-SS Socket/Female 2″ 2″ – 11-1/2 Female NPTF 316 Stainless 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
16STBF16 Socket/Female 2″ 2″ – 11 Female BSPP Steel 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
16STOF16 Socket/Female 2″ 2-1/2″ – 12 Female ORB Steel 6.20″
(157.5mm)		 4.47″
(113.5mm)		 3.78″
ST-Series | Heavy-Duty Flushface ‘Old Style’ Coupler (Female Threads)
ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1" Female NPTF X 1" Heavy-Duty Flushface | Plug | Steel -Hose Ware House Dixon Quick Disconnect ST Series Heavy Duty Flushface Coupler Old Style Fem NPTF BSPP ORB
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
8STF8-V2 Socket/Female 1″ 1″ – 11-1/2 Female NPTF Steel 4.55″
(115.6mm)		 2.74″
(69.6mm)		 2″
8STBF8-V2 Socket/Female 1″ 1″ – 11 Female BSPP Steel 4.55″
(115.6mm)		 2.74″
(69.6mm)		 2″
8STF10-V2 Socket/Female 1″ 1-1/4″ – 11-1/2 Female NPTF Steel 4.90″
(124.5mm)		 2.74″
(69.6mm)		 2″

Reviews

There are no reviews yet.

Be the first to review “ST8F8 By Dixon Valve | Hydraulic Quick Disconnect Coupling | ST-Series | 1″ Female NPTF X 1″ Heavy-Duty Flushface | Plug | Steel”

Related products

Sale!
HS1136-04X25 Kuri-Tec By Kuriyama | POLYAIR HS1136 Series | Multi-Purpose Air Hose Assembly | Blue | 1/4" ID | .500" OD | 25ft Length
+
 Quick View

Hose Assemblies

HS1136-04X25 Kuri-Tec By Kuriyama | POLYAIR HS1136 Series | Multi-Purpose Air Hose Assembly | Blue | 1/4″ ID | .500″ OD | 25ft Length

Original price was: $19.05.Current price is: $13.34.
Sale!
HSC2841-04X10 Kuri-Tec By Kuriyama | HSC2841 Series | Self-Store Coiled Tubing Assemblies For Air Tool Service | 1/4" ID | .375" OD | 1/4" X 1/4" Male NPT Fittings | Ether-Based Polyurethane | Yellow | 10ft Length
+
 Quick View

Hose Assemblies

HSC2841-04X10 Kuri-Tec By Kuriyama | HSC2841 Series | Self-Store Coiled Tubing Assemblies For Air Tool Service | 1/4″ ID | .375″ OD | 1/4″ X 1/4″ Male NPT Fittings | Ether-Based Polyurethane | Yellow | 10ft Length

Original price was: $22.48.Current price is: $15.74.
Sale!
N6BS5-50 By Nycoil | Self-Storing Air Hose Assembly | 3/8" Hose ID | 3/8" MPT Swivel | Yellow | 225 PSI | Nylon | 50ft
+
 Quick View

Hose Assemblies

N6BS5-50 By Nycoil | Self-Storing Air Hose Assembly | 3/8″ Hose ID | 3/8″ MPT Swivel | Yellow | 225 PSI | Nylon | 50ft

Original price was: $81.54.Current price is: $57.08.
Sale!
HS1131D-08X25 Kuri-Tec By Kuriyama | POLYAIR HS1131 Series | Multi-Purpose Air Hose Assembly | Yellow | 1/2" ID | .813" OD | 25ft Length
+
 Quick View

Hose Assemblies

HS1131D-08X25 Kuri-Tec By Kuriyama | POLYAIR HS1131 Series | Multi-Purpose Air Hose Assembly | Yellow | 1/2″ ID | .813″ OD | 25ft Length

Original price was: $31.15.Current price is: $21.81.
Sale!
D4255 By Nycoil | Ultra-Lite SuperBraidĀ® | Hose Assembly | 1/4" ID X 3/8" OD | 1/4" Male NPT Swivel Fitting | Transparent Yellow | With Barb Fitting & Spring Guard | 25ft
+
 Quick View

Hose Assemblies

D4255 By Nycoil | Ultra-Lite SuperBraidĀ® | Hose Assembly | 1/4″ ID X 3/8″ OD | 1/4″ Male NPT Swivel Fitting | Transparent Yellow | With Barb Fitting & Spring Guard | 25ft

Original price was: $37.93.Current price is: $26.55.
Sale!
PU3850 By Dixon Valve | Polyurethane Self-Storing Air Hose | 3/8" Hose ID | 3/8" Male NPT X 3/8" Male NPT | 50ft Length | Polyurethane
+
 Quick View

Hose Assemblies

PU3850 By Dixon Valve | Polyurethane Self-Storing Air Hose | 3/8″ Hose ID | 3/8″ Male NPT X 3/8″ Male NPT | 50ft Length | Polyurethane

Original price was: $162.91.Current price is: $96.99.
Sale!
HS1138E-12X50 Kuri-Tec By Kuriyama | POLYAIR HS1138 Series | Multi-Purpose Air Hose Assembly | Grey | 3/4" ID | 1.125" OD | 50ft Length
+
 Quick View

Hose Assemblies

HS1138E-12X50 Kuri-Tec By Kuriyama | POLYAIR HS1138 Series | Multi-Purpose Air Hose Assembly | Grey | 3/4″ ID | 1.125″ OD | 50ft Length

Original price was: $105.27.Current price is: $73.69.
Sale!
4103-037450 By Jason Industrial | 4103 Series | Air Hose Assembly | Medium Oil Resistant | 300 PSI | 1/4" Male NPT X 1/4" Male NPT | 3/8" ID | 0.59" OD | Red | PVC | 50ft
+
 Quick View

Hose Assemblies

4103-037450 By Jason Industrial | 4103 Series | Air Hose Assembly | Medium Oil Resistant | 300 PSI | 1/4″ Male NPT X 1/4″ Male NPT | 3/8″ ID | 0.59″ OD | Red | PVC | 50ft

Original price was: $21.12.Current price is: $14.78.
