Sale!

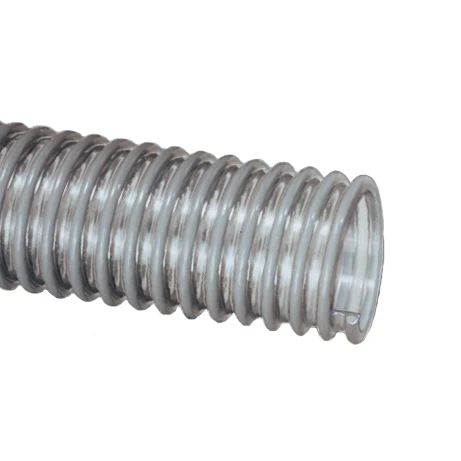

SH400X100 Tigerflex By Kuriyama | SH Series | Standard Duty Low Temperature Liquid Suction Hose | 4″ ID | PVC | 100ft Length
Original price was: $357.00.$98.99Current price is: $98.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Drain lines, Dust collection, Gold dredging, Water suction – standard duty | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS |
| Other Features: | |||
| |||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| SH250X100 | 2-1/2″ | 63.5mm | 9.97″ | 75.5mm | 30 PSI | 9 PSI | 24 in. Hg | 18 in. Hg | 3″ | 100ft | 0.43 lbs |
| SH400X100 | 4″ | 101.6mm | 5.52″ | 114.8mm | 25 PSI | 7 PSI | 18 in. Hg | 14 in. Hg | 6″ | 100ft | 1.06 lbs |
| SH500X100 | 5″ | 127.0mm | 5.57″ | 141.5mm | 20 PSI | 6 PSI | 16 in. Hg | 12 in. Hg | 10″ | 100ft | 1.47 lbs |
| SH600X100 | 6″ | 153.4mm | 6.69″ | 169.9mm | 20 PSI | 6 PSI | 14 in. Hg | 10 in. Hg | 12″ | 100ft | 2.27 lbs |
| SH800X60 | 8″ | 204.8mm | 8.86″ | 225.0mm | 10 PSI | 3 PSI | 12 in. Hg | 8 in. Hg | 24″ | 60ft | 3.34 lbs |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
