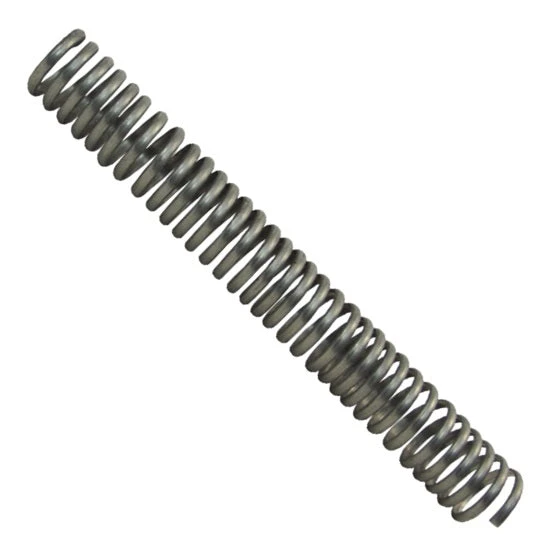

SEGC0-1.00-12 By Dixon Valve | Spring Guard | Without Tang | 1″ Guard ID | 12″ Overall Length | Galvanized Steel

Original price was: $14.83.Current price is: $10.38.

Features:
Optional end tang allows end guard to be secured under a clamp or ferrule. Wire fits most hose O.D.s from 1/2″ to 3-1/4″.


Galvanized Steel Part Number	304 Stainless Steel Part Number	Guard ID	Wire Gauge	Overall Length	Tang Length	Approx. Number of Coils/ft
SEGC1-0.75-12	SEGS1-0.75-12	3/4″	0.175	12″	1″	33
SEGC1-1.00-12	SEGS1-1.00-12	1″	0.175	12″	1″	33
SEGC1-1.25-14	SEGS1-1.25-14	1-1/4″	0.175	14″	2″	39
SEGC1-1.50-14	SEGS1-1.50-14	1-1/2″	0.175	14″	2″	39
SEGC1-1.75-16	SEGS1-1.75-16	1-3/4″	0.175	16″	2″	44
SEGC1-2.00-16	SEGS1-2.00-16	2″	0.280	16″	2″	44
SEGC1-2.50-18	SEGS1-2.50-18	2-1/2″	0.280	18″	2″	50
SEGC1-3.00-18	SEGS1-3.00-18	3″	0.280	18″	2″	50


Galvanized Steel Part Number	304 Stainless Steel Part Number	Guard ID	Wire Gauge	Overall Length	Approx. Number of Coils/ft
SEGC0-0.75-12	SEGS0-0.75-12	3/4″	0.175	12″	33
SEGC0-1.00-12	SEGS0-1.00-12	1″	0.175	12″	33
SEGC0-1.25-14	SEGS0-1.25-14	1-1/4″	0.175	14″	39
SEGC0-1.50-14	SEGS0-1.50-14	1-1/2″	0.175	14″	39
SEGC0-1.75-16	SEGS0-1.75-16	1-3/4″	0.175	16″	44
SEGC0-2.00-16	SEGS0-2.00-16	2″	0.280	16″	44
SEGC0-2.50-18	SEGS0-2.50-18	2-1/2″	0.280	18″	50
–	SEGS0-3.00-18	3″	0.280	18″	50
