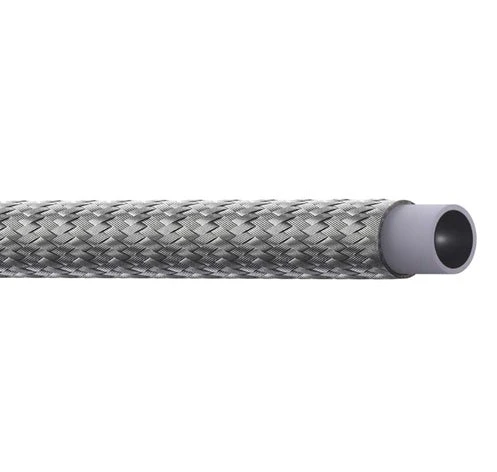

SC-16 Everflex By Danfoss | SC-Series | Smooth Bore Static Dissipating Teflon™ Hose | 0.88″ Hose ID | 1.07″ Hose OD | 304 Stainless Steel Braid

Original price was: $26.78.Current price is: $18.75.

SKU: AG9ZZ 8701446324389 Categories: Bulk Hose & Covers, Specialty Hose Tags: Collection-lvl1_All Hose, Collection-lvl2_Specialty Hose, Collection-lvl3_PTFE Hose, Created in 2024, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hose Properties:
Applications:	Steam Compressor Discharge Chemical Transfer	SAE Ratings:	N/A
Other Ratings:	Carbon black used meets 21CFR178.3297 for FDA compliance.	Tube:	Conductive Teflon Inner Tube
Reinforcement:	N/A	Cover:	One Layer of Stainless Steel Braid
Operating Parameters:	-65°F to +450°F (-54°C to +230°C)

Part Number	Hose ID		Hose OD		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Weight		Vacuum Service
Part Number	mm	in	mm	in	bar	psi	bar	psi	mm	in	kg/m	lbs/ft	in. Hg
SC-3	3,2mm	0.13″	6,8mm	0.27″	241 bar	3,500 Psi	965 bar	14,000 Psi	25,4mm	1.00″	0,07 kg/m	0.05 lbs/ft	28 In/Hg
SC-4	4,8mm	0.19″	8,6mm	0.34″	206 bar	3,000 Psi	827 bar	12,000 Psi	38,1mm	1.50″	0,12 kg/m	0.08 lbs/ft	28 In/Hg
SC-5	6,4mm	0.25″	10,2mm	0.40″	206 bar	3,000 Psi	827 bar	12,000 Psi	50,8mm	2.00″	0,13 kg/m	0.09 lbs/ft	28 In/Hg
SC-6	7,9mm	0.31″	11,7mm	0.46″	172 bar	2,500 Psi	689 bar	10,000 Psi	88,9mm	3.50″	0,18 kg/m	0.12 lbs/ft	28 In/Hg ‡
SC-8	10,4mm	0.41″	14,7mm	0.58″	137 bar	2,000 Psi	551 bar	8,000 Psi	114,3mm	4.50″	0,22 kg/m	0.15 lbs/ft	28 In/Hg ‡
SC-10*	12,7mm	0.50″	17,3mm	0.68″	120 bar	1,750 Psi	482 bar	7,000 Psi	127,0mm	5.00″	0,30 kg/m	0.20 lbs/ft	28 In/Hg ‡
SC-12*	15,7mm	0.62″	20,3mm	0.80″	103 bar	1,500 Psi	413 bar	6,000 Psi	152,4mm	6.00″	0,34 kg/m	0.23 lbs/ft	28 In/Hg ‡
SC-16	22,4mm	0.88″	27,2mm	1.07″	68 bar	1,000 Psi	275 bar	4,000 Psi	228,6mm	9.00″	0,46 kg/m	0.31 lbs/ft	12 In/Hg ‡

Warning: These hoses can be used to convey hazardous chemicals, steam,
hot liquids or other dangerous materials which can cause death, serious
bodily injury including burns, pressure wounds or chemical exposure if
released accidentally. They should, therefore, only be handled or worked
on by personnel properly trained in the safe handling of the materials or
chemicals conveyed in the hoses.

* The operating pressure of 1/2″ I.D. hoses are lowered to 1500 psi and 5/8h
I.D. hoses are lowered to 1250 psi when Brass Everswage fittings are used.

‡ Maximum negative pressure for -16 and larger are suitable for hose which
has suffered no external damage or kinking. If greater negative pressures
are required for -16 and larger hoses, the use of an internal support coil
is recommended. Use of an internal support coil in -06 and larger hose is
recommended for tube support where extended or continuous service at
high temperature together with low or negative pressure is expected.

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
