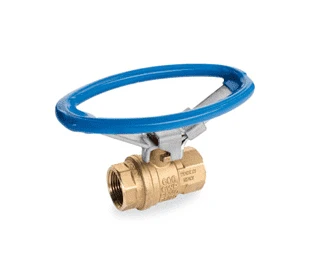

S95E43 By RuB Inc. | Full Port 2-Way Ball Valve | 3/4″ Female NPT X 3/4″ Female NPT | With Oval Lockable Handle | Brass | Pack Of 12

Original price was: $312.67.Current price is: $99.99.

SKU: AG9ZZ 4185281298468 Categories: Adapters & More, Valves Tags: All-categories, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, Full Port 2-Way Ball Valves, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, RuB Inc. Valves, RuB Inc. Valves & Actuators, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
600 PSI (CWP) up thru and including 2″, 450 PSI (CWP) over 2″ -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball Glass filled PTFE seals Custom design Special configuration for industrial oxygen application
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) Factory Mutual (United States) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) TSSA (Canada) RoHS Compliant (EU) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	CH
S95B43	1/4″	1/4″	0.314″	0.472″	1.771″	0.885″	0.787″
S95C43	3/8″	3/8″	0.393″	0.472″	1.771″	0.885″	0.787″
S95D43	1/2″	1/2″	0.590″	0.610″	2.332″	1.161″	0.984″
S95E43	3/4″	3/4″	0.787″	0.669″	2.519″	1.259″	1.220″
S95F43	1″	1″	0.984″	0.826″	3.188″	1.594″	1.574″
S95G43	1-1/4″	1-1/4″	1.259″	0.905″	3.661″	1.830″	1.929″
S95H43	1-1/2″	1-1/2″	1.574″	0.905″	4.015″	2.007″	2.125″
S95I43	2″	2″	1.968″	1.043″	4.763″	2.381″	2.696″
S95L43**	2-1/2″	2-1/2″	2.559″	1.260″	6.141″	3.070″	3.346″
S95M43**	3″	3″	3.149″	1.377″	6.968″	3.484″	3.897″
S95N43**	4″	4″	3.937″	1.633″	8.504″	4.252″	4.921″

**Sizes 2-1/2 – 4″ with round handle (not oval)

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.
Stem configuration of valves over 2″ is slightly different.
