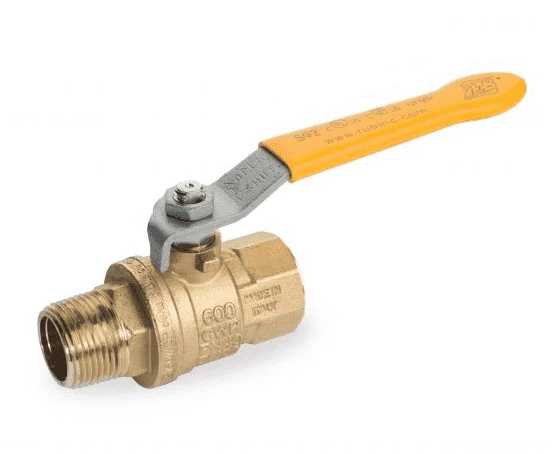

S92L42 By RuB Inc. | Full Port 2-Way Ball Valve | 2-1/2″ Male NPT X 2-1/2″ Female NPT | With Yellow Steel Handle | Brass | Pack Of 2

Original price was: $308.00.Current price is: $98.99.

SKU: AG9ZZ 4185298403364 Categories: Adapters & More, Valves Tags: All-categories, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, Full Port 2-Way Ball Valves, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, RuB Inc. Valves, RuB Inc. Valves & Actuators, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance Triple stem seals in sizes over 2″
Sealing:
Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 male by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) up thru and including 2″; 450 PSI (CWP) over 2″ Steam rating 150 PSI (WSP) -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball and/or stem Custom design Pure PTFE seals
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) Factory Mutual (United States) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	DN1	I	I1	L	G	A	H	CH
S92B42	1/4″	1/4″	0.314″	0.314″	0.472″	0.531″	2.224″	0.885″	3.228″	1.563″	0.787″
S92C42	3/8″	3/8″	0.393″	0.393″	0.472″	0.531″	2.224″	0.885″	3.228″	1.563″	0.787″
S92D42	1/2″	1/2″	0.590″	0.590″	0.610″	0.650″	2.756″	1.161″	3.937″	1.695″	0.984″
S92E42	3/4″	3/4″	0.787″	0.787″	0.669″	0.709″	2.992″	1.259″	4.724″	1.988″	1.220″
S92F42	1″	1″	0.984″	0.984″	0.826″	0.866″	3.642″	1.594″	4.724″	2.153″	1.574″
S92G42	1-1/4″	1-1/4″	1.259″	1.259″	0.905″	0.945″	4.173″	1.830″	6.220″	2.988″	1.929″
S92H42	1-1/2″	1-1/2″	1.574″	1.574″	0.905″	0.845″	4.449″	2.007″	6.220″	3.236″	2.125″
S92I42	2″	2″	1.968″	1.968″	1.043″	1.083″	5.236″	2.381″	6.220″	3.500″	2.696″
S92L42	2-1/2″	2-1/2″	2.559″	2.205″	1.260″	1.457″	7.106″	3.070″	10.039″	5.196″	3.346″
S92M42	3″	3″	3.149″	2.756″	1.377″	1.555″	8.051″	3.484″	10.039″	5.511″	3.897″
S92N42	4″	4″	3.937″	3.701″	1.633″	1.732″	9.370″	4.252″	10.039″	6.062″	4.921″

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.
Stem configuration of valves over 2″ is slightly different.
