Sale!

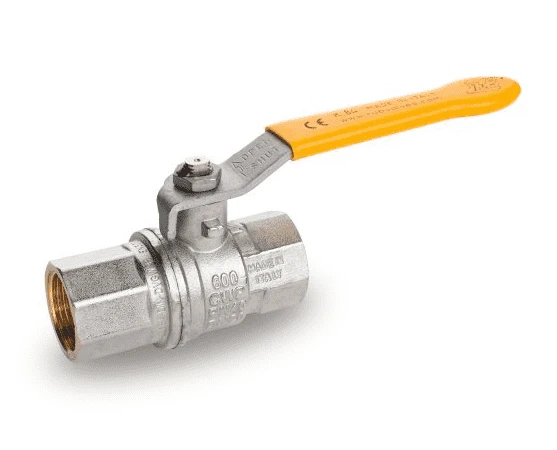

S84E05 By RuB Inc. | Metric Threaded Full Port Ball Valve | 3/4″ Female BSPT X 3/4″ Female BSPT | With Yellow Steel Handle | Nickel Plated Brass | Pack Of 12

Original price was: $191.16.Current price is: $95.99.

SKU: AG9ZZ 4185324748836 Categories: Adapters & More, Valves Tags: All-categories, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Metric Threaded Full Port Ball Valves, RuB Inc. Valves, RuB Inc. Valves & Actuators, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Handle stops on body to avoid stresses at stem Chrome plated brass ball for longer life with rinse hole
Body:
Valve length according to DIN 3202 M3 specification Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications Hot forged sand blasted external nickel plated brass body and cap sealed with Loctite® or equivalent threads sealant
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
EN 10226-1, ISO 228 parallel female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection Handle removable with valve in service WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
40 Bar (600 PSI) non-shock cold working pressure -40°C (-40°F) / +170°C (+350°F) For use with dangerous fluids temperature rating is -20°C +60°C and pressure rating is 5 Bar WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
AISI 316 stainless steel ball Glass filled PTFE seals Custom design
PED Directive:
Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by Pascal (1115)
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) BSI Group (United Kingdom) RoHS Compliant (EU) DIN-DVGW (Deutschland) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D (inch)	DN (mm)	I (mm)	L (mm)	G (mm)	A (mm)	H (mm)	CH (mm)
S84B05	1/4″	1/4″	8mm	12mm	50mm	22.5mm	82mm	38mm	20mm
S84C05	3/8″	3/8″	10mm	12mm	60mm	22.5mm	82mm	38mm	20mm
S84D05	1/2″	1/2″	15mm	15.5mm	75mm	29.5mm	100mm	43mm	25mm
S84E05	3/4″	3/4″	20mm	17mm	80mm	32mm	120mm	50mm	31mm
S84F05	1″	1″	25mm	21mm	90mm	40.5mm	120mm	54mm	40mm
S84G05	1-1/4″	1-1/4″	32mm	23mm	110mm	46.5mm	158mm	73mm	49mm
S84H05	1-1/2″	1-1/2″	40mm	23mm	120mm	51mm	158mm	79mm	54mm
S84I05	2″	2″	50mm	26.5mm	140mm	60.5mm	158mm	86mm	68.5mm
S84L05	2-1/2″	2-1/2″	–	–	–	–	–	–	–
S84M05	3″	3″	–	–	–	–	–	–	–
S84N05	4″	4″	–	–	–	–	–	–	–
