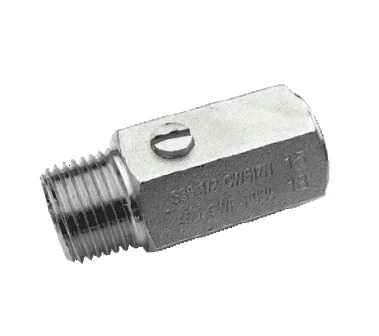

S35BZ3 By RuB Inc. | High Pressure Mini Ball Valve | 1/4" Male NPT X 1/4" Female NPT | With Screw Driver Slot | Brass | Pack Of 25

S35BZ3 By RuB Inc. | High Pressure Mini Ball Valve | 1/4″ Male NPT X 1/4″ Female NPT | With Screw Driver Slot | Brass | Pack Of 25

Original price was: $176.75.Current price is: $97.99.

SKU: AG9ZZ 4185316425764 Categories: , Tags: , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle/stem clearly shows ball position
  • Silicone-free lubricant on all seals
  • Each valve is seal tested for maximum safety
  • Chrome plated brass ball for longer life
Body:
  • One piece drawn sand blasted brass body with extremely compact design
  • Finest brass according to EN 12164 specification
  • Patent n. 7011-B/89
Stem:
  • Blowout-proof brass stem with FPM O-ring
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Handle:
  • Reinforced nylon back wedge handle
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • Maximum working pressure: 450 PSI non-shock cold working pressure
  • -4°F/+250°F
  • +250°F screw driver version and metal wedge handle
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • Aluminum body
  • Additional connection options
  • ISO 7/1 BSPT taper threads
  • Dezincification resistant brass CW602N
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G CH
S35AZ3 1/8″ 1/8″ 0.236″ 0.354″ 1.712″ 0.905″ 0.826″
S35BZ3 1/4″ 1/4″ 0.314″ 0.472″ 1.712″ 0.905″ 0.826″
S35CZ3 3/8″ 3/8″ 0.314″ 0.472″ 1.712″ 0.905″ 0.826″
S35DZ3 1/2″ 1/2″ 0.393″ 0.610″ 2.106″ 1.102″ 0.984″

*DN shows the nominal flow diameter.
