S2009Z-SS By ZSi-Foster | Strut Mount Beta Clamp | Standard Series | For 1/4″ Pipe | Polypropylene/304 Stainless Steel

Original price was: $12.89.Current price is: $9.02.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
Shock absorption, vibration dampening, and noise reducing properties. Securely and easily anchor clamps to machinery and steel work with weldable plates. Easily cleaned. Ribs in clamp bore absorb shock and vibration in direction of tube axis. Upper and lower clamp halves are identical.
Materials:
Components: 304 Stainless Steel Cushion: Polypropylene (Green)
Installation:
For more information see: Beta Clamps Technical Info & Installation Guide PDF.

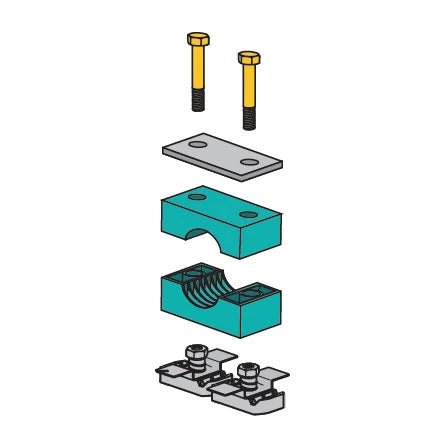

Assembly Includes:
	Quantity	Description
	2 Each	Hex Bolts
	1 Each	Cover Plate
	1 Set	Cushions
	2 Each	Strut Nuts

Clamp for:
Tube Part Number	Pipe Part Number	Size	Bolt Length
S1004Z-SS	S2009Z-SS	1/4″	Tube: 1-1/4″ Pipe: 1-3/8″
S1006Z-SS	S2011Z-SS	3/8″	Tube: 1-1/4″ Pipe: 1-3/8″
S2008Z-SS	S3014Z-SS	1/2″	Tube: 1-3/8″ Pipe: 1-1/2″
S2010Z-SS	–	5/8″	1-3/8″
S3012Z-SS	S4017Z	3/4″	Tube: 1-1/2″ Pipe: 1-3/4″
S3015Z-SS	–	7/8″	1-1/2″
S3016Z-SS	S5021Z-SS	1″	Tube: 1-1/2″ Pipe: 2-1/2″
S4018Z-SS	–	1-1/8″	1-3/4″
S5020Z-SS	S5027Z-SS	1-1/4″	2-1/2″
S5024Z-SS	S6030Z-SS	1-1/2″	Tube: 2-1/2″ Pipe: 2-3/4″
S6028Z-SS	–	1-3/4″	2-3/4″
S6032Z-SS	S7038Z-SS	2″	Tube: 2-3/4″ Pipe: 4″
S7036Z-SS	–	2-1/4″	4″
S7040Z-SS	–	2-1/2″	4″
S7048Z-SS	–	3″	4″
