S2009SI By ZSi-Foster | Weld Mount Beta Clamp | Standard Series | For 1/4″ Pipe | Cap Screw Assembly | Polypropylene/Steel

Original price was: $12.00.Current price is: $8.40.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
Shock absorption, vibration dampening, and noise reducing properties. Securely and easily anchor clamps to machinery and steel work with weldable plates. Easily cleaned. Ribs in clamp bore absorb shock and vibration in direction of tube axis. Upper and lower clamp halves are identical.
Materials:
Components: Steel Cushion: Polypropylene (Green)
Installation:
For more information see: Beta Clamps Technical Info & Installation Guide PDF.

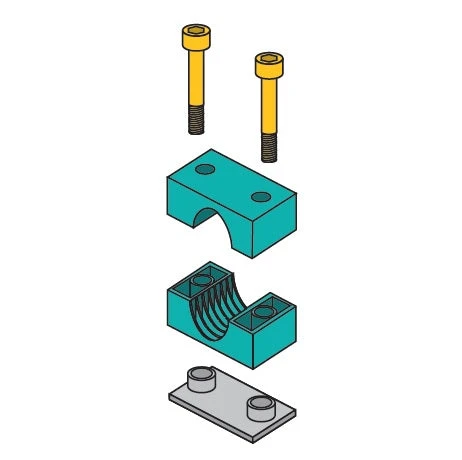

Assembly Includes:
	Quantity	Description
	2 Each	Cap Screws
	1 Set	Cushions
	1 Each	Weld Plate

Clamp for:
Tube Part Number	Pipe Part Number	Size	Bolt Length
–	S1007SI	1/8″	1-1/4″
S1004SI	S2009SI	1/4″	Tube: 1-1/4″ Pipe: 1-3/8″
S1006SI	S2011SI	3/8″	Tube: 1-1/4″ Pipe: 1-3/8″
S2008SI	S3014SI	1/2″	Tube: 1-3/8″ Pipe: 1-1/2″
S2010SI	–	5/8″	1-3/8″
S3012SI	S4017SI	3/4″	Tube: 1-1/2″ Pipe: 1-3/4″
S3015SI	–	7/8″	1-1/2″
S3016SI	S5021SI	1″	Tube: 1-1/2″ Pipe: 2-1/2″
S4018SI	–	1-1/8″	1-3/4″
S5020SI	S5027SI	1-1/4″	2-1/2″
S5024SI	S6030SI	1-1/2″	Tube: 2-1/2″ Pipe: 2-3/4″
S6028SI	–	1-3/4″	2-3/4″
S6032SI	S7038SI	2″	Tube: 2-3/4″ Pipe: 4″
S7036SI	–	2-1/4″	4″
S7040SI	–	2-1/2″	4″
