| About: | |||
|---|---|---|---|
| |||
| Note: | |||
| |||
| Compatible Hose: | |||
| |||
| Warning: | |||
|
![]() |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number Brass |
Part Number Carbon Steel |
Part Number 300 Stainless Steel |
Hose I.D. | Tube Size | Thread Size | A | Hose Cut-off Factor** |
E |

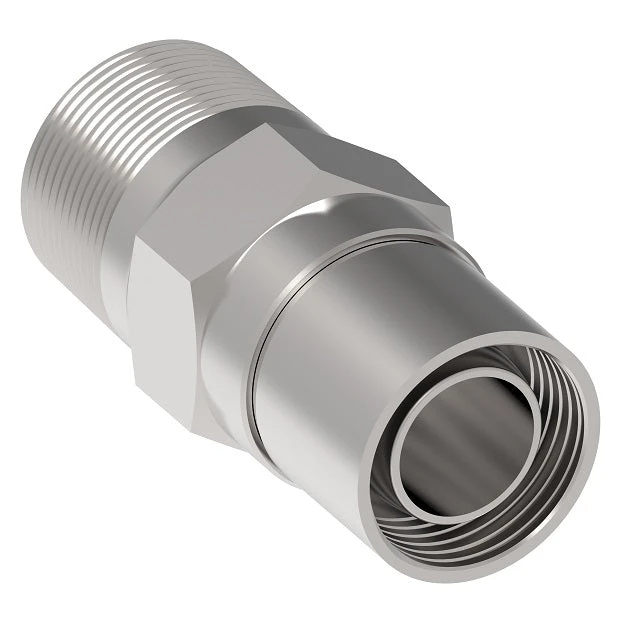

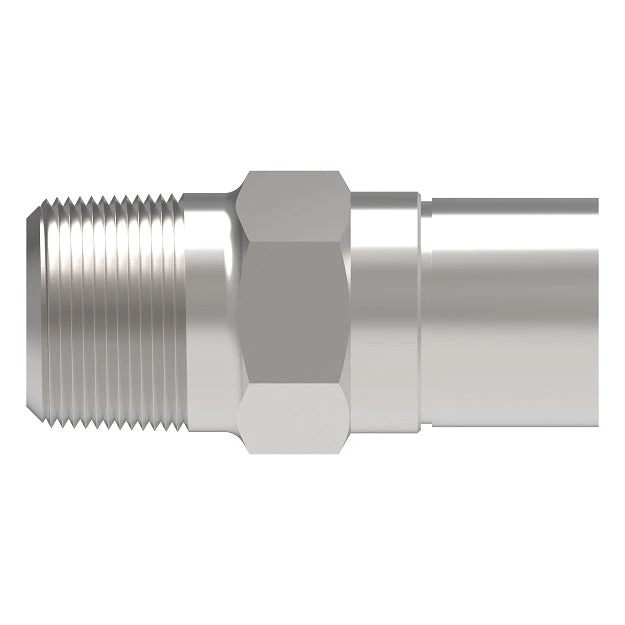

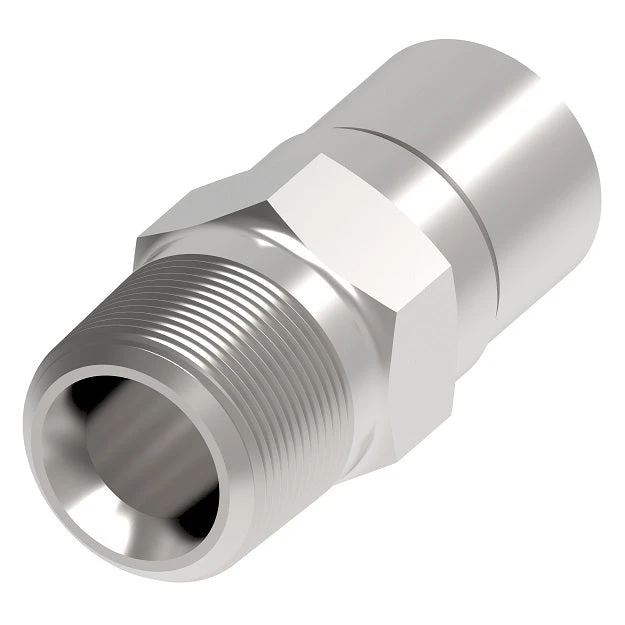

| B-1103 | – | S-1103 | 5/32″ | 1/8″ | 1/8-27″ | 1.19″ | 3/4″ | 1/2″ |
| B-1104-1 | C-1104-1 | S-1104-1 | 3/16″ | 1/8″ | 1/8-27″ | 1.34″ | 3/4″ | 1/2″ |
| B-1104-2 | C-1104-2 | S-1104-2 | 3/16″ | 1/4″ | 1/4-18″ | 1.47″ | 7/8″ | 9/16″ |
| B-1105 | C-1105 | S-1105 | 1/4″ | 1/4″ | 1/4-18 | – | – | – |
| B-1105-1/8 | – | – | 1/4″ | 1/8″ | 1/8″ | 1.34″ | 15/16″ | 9/16″ |
| B-1106-1 | C-1106-1 | S-1106-1 | 5/16″ | 1/4″ | 1/4-18″ | 1.47″ | 7/8″ | 11/16″ |
| B-1106-2 | C-1106-2 | S-1106-2 | 5/16″ | 3/8″ | 3/8-18″ | 1.53″ | 15/16″ | 11/16″ |
| – | – | S-1106-3 | 5/16″ | 1/2″ | 1/2″ | 1.75″ | 1-1/8″ | 7/8″ |
| B-1108-1 | C-1108-1 | S-1108-1 | 13/32″ | 3/8″ | 3/8-18″ | 1.84″ | 1″ | 3/4″ |
| B-1108-2 | C-1108-2 | S-1108-2 | 13/32″ | 1/2″ | 1/2-14″ | 1.97″ | 1-1/8″ | 7/8″ |
| B-1110 | C-1110 | S-1110 | 1/2″ | 1/2″ | 1/2-14″ | 1.97″ | 1-3/16″ | 7/8″ |
| B-1112 | C-1112 | S-1112 | 5/8″ | 3/4″ | 3/4-14″ | 2.14″ | 1-5/16″ | 1-1/16″ |
| B-1116 | C-1116 | S-1116 | 7/8″ | 1″ | 1-11.5″ | 2.94″ | 1-5/8″ | 1-3/8″ |
| B-1120Z* | C-1120Z* | S-1120Z* | 1-1/8″ | 1-1/4″ | 1-1/4-11.5″ | 3.03″ | 1-3/4″ | 1-3/4″ |
* The 20Z size has a double stainless steel wire reinforcement.
** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.
Note: Drawings may differ from actual parts.
