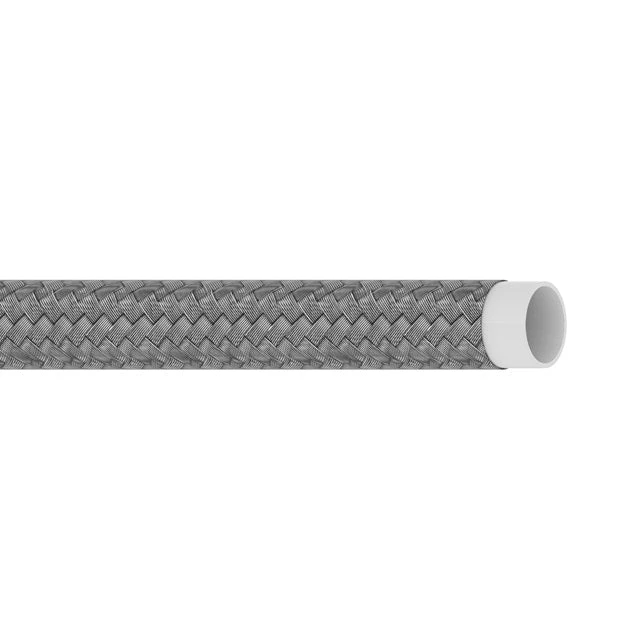

S-10 Everflex By Danfoss | S-Series | Smooth Bore Non-Dissipating Teflon™ Hose | 0.50″ Hose ID | 0.68 Hose OD | 304 Stainless Steel Braid
Original price was: $15.09.$10.56Current price is: $10.56.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Applications: | Steam Compressor Discharge Chemical Transfer 316 Stainless braided hose can be used in marine applications and other environments where corrosion is an issue | SAE Ratings: | N/A |
| Other Ratings: | N/A | Tube: | Non-Conductive Teflon Inner Tube |
| Reinforcement: | N/A | Cover: | 304 or 316 Stainless Steel Braid |
| Operating Parameters: | -65°F to +450°F (-54°C to +230°C) | ||
| Part Number | Hose ID | Hose OD | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum Service | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | in. Hg | ||
| S-3 | 3,2mm | 0.13″ | 6,8mm | 0.27″ | 241 bar | 3,500 Psi | 965 bar | 14,000 Psi | 25,4mm | 1.00″ | 0,07 kg/m | 0.05 lbs/ft | 28 In/Hg | |
| S-4 | 4,8mm | 0.19″ | 8,6mm | 0.34″ | 206 bar | 3,000 Psi | 827 bar | 12,000 Psi | 38,1mm | 1.50″ | 0,12 kg/m | 0.08 lbs/ft | 28 In/Hg | |
| S-5 | 6,4mm | 0.25″ | 10,2mm | 0.40″ | 206 bar | 3,000 Psi | 827 bar | 12,000 Psi | 50,8mm | 2.00″ | 0,13 kg/m | 0.09 lbs/ft | 28 In/Hg | |
| S-6 | 7,9mm | 0.31″ | 11,7mm | 0.46″ | 172 bar | 2,500 Psi | 689 bar | 10,000 Psi | 88,9mm | 3.50″ | 0,18 kg/m | 0.12 lbs/ft | 28 In/Hg ‡ | |
| S-8 | 10,4mm | 0.41″ | 14,7mm | 0.58″ | 137 bar | 2,000 Psi | 551 bar | 8,000 Psi | 114,3mm | 4.50″ | 0,22 kg/m | 0.15 lbs/ft | 28 In/Hg ‡ | |
| S-10* | 12,7mm | 0.50″ | 17,3mm | 0.68″ | 120 bar | 1,750 Psi | 482 bar | 7,000 Psi | 127,0mm | 5.00″ | 0,30 kg/m | 0.20 lbs/ft | 28 In/Hg ‡ | |
| S-12* | 15,7mm | 0.62″ | 20,3mm | 0.80″ | 103 bar | 1,500 Psi | 413 bar | 6,000 Psi | 152,4mm | 6.00″ | 0,34 kg/m | 0.23 lbs/ft | 28 In/Hg ‡ | |
| S-16 | 22,4mm | 0.88″ | 27,2mm | 1.07″ | 68 bar | 1,000 Psi | 275 bar | 4,000 Psi | 228,6mm | 9.00″ | 0,46 kg/m | 0.31 lbs/ft | 12 In/Hg ‡ | |
| S-16Z** | 22,4mm | 0.88″ | 28,7mm | 1.13″ | 86 bar | 1,250 Psi | 344 bar | 5,000 Psi | 185,4mm | 7.30″ | 0,73 kg/m | 0.49 lbs/ft | 12 In/Hg ‡ | |
| S-20Z** | 28,4mm | 1.12″ | 35,3mm | 1.39″ | 68 bar | 1,000 Psi | 275 bar | 4,000 Psi | 279,4mm | 11.00″ | 0,97 kg/m | 0.65 lbs/ft | 12 In/Hg ‡ | |
Warning: These hoses can be used to convey hazardous chemicals, steam,
hot liquids or other dangerous materials which can cause death, serious
bodily injury including burns, pressure wounds or chemical exposure if
released accidentally. They should, therefore, only be handled or worked
on by personnel properly trained in the safe handling of the materials or
chemicals conveyed in the hoses.
** “Z” Designates a double braid of 304 stainless steel wire.
* The operating pressure of 1/2″ I.D. hoses are lowered to 1500 psi and 5/8h
I.D. hoses are lowered to 1250 psi when Brass Everswage fittings are used.
‡ Maximum negative pressure for -16 and larger are suitable for hose which
has suffered no external damage or kinking. If greater negative pressures
are required for -16 and larger hoses, the use of an internal support coil
is recommended. Use of an internal support coil in -06 and larger hose is
recommended for tube support where extended or continuous service at
high temperature together with low or negative pressure is expected.
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
