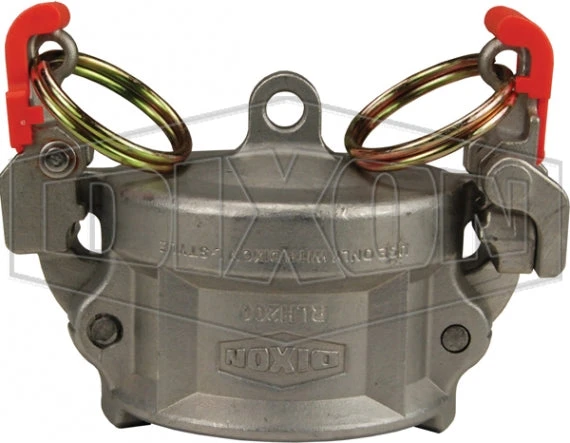

RLH200EZ By Dixon Valve | EZ Boss-Lock Vent-Lock® Safety Cam & Groove Dust Cap | Type H | 2″ Size | 316 Stainless Steel

Original price was: $107.71.Current price is: $75.40.

SKU: AG9ZZ 1482100768804 Categories: Adapters & More, Dust Caps & Plugs Tags: All-categories, Boss Fittings, Cam & Groove, Collection-lvl1_All Hose Ends, Collection-lvl2_Dust Caps and Plugs, Dixon Cam & Groove, Dixon Valve and Coupling Products, Dust-caps-and-plugs, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Material_stainless-steel, Matrixify3rd50kProducts, Pl_vent-lock-safety, Vent-Lock Cam and Groove Couplings (Safety Cam and Groove), Vent-Lock Safety EZ Boss-Lock Couplings

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies. Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids. Does not interchange with standard cam & groove products; use only with Dixon L-style fittings. Safety orange cam arms.
Specifications:
Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed. 1″, 1-1/2″ and 2″ sizes have a maximum working pressure of 250 PSI. 3″ maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI. 4″ maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI.

316 Stainless Steel Part Number	Aluminum Part Number	Size
RLH100EZ	–	1″
RLH150EZ	–	1-1/2″
RLH200EZ	–	2″
RLH300EZ	–	3″
–	ALH400EZ	4″

Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70°F
(21°C) with standard Nitrile Rubber seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon.
