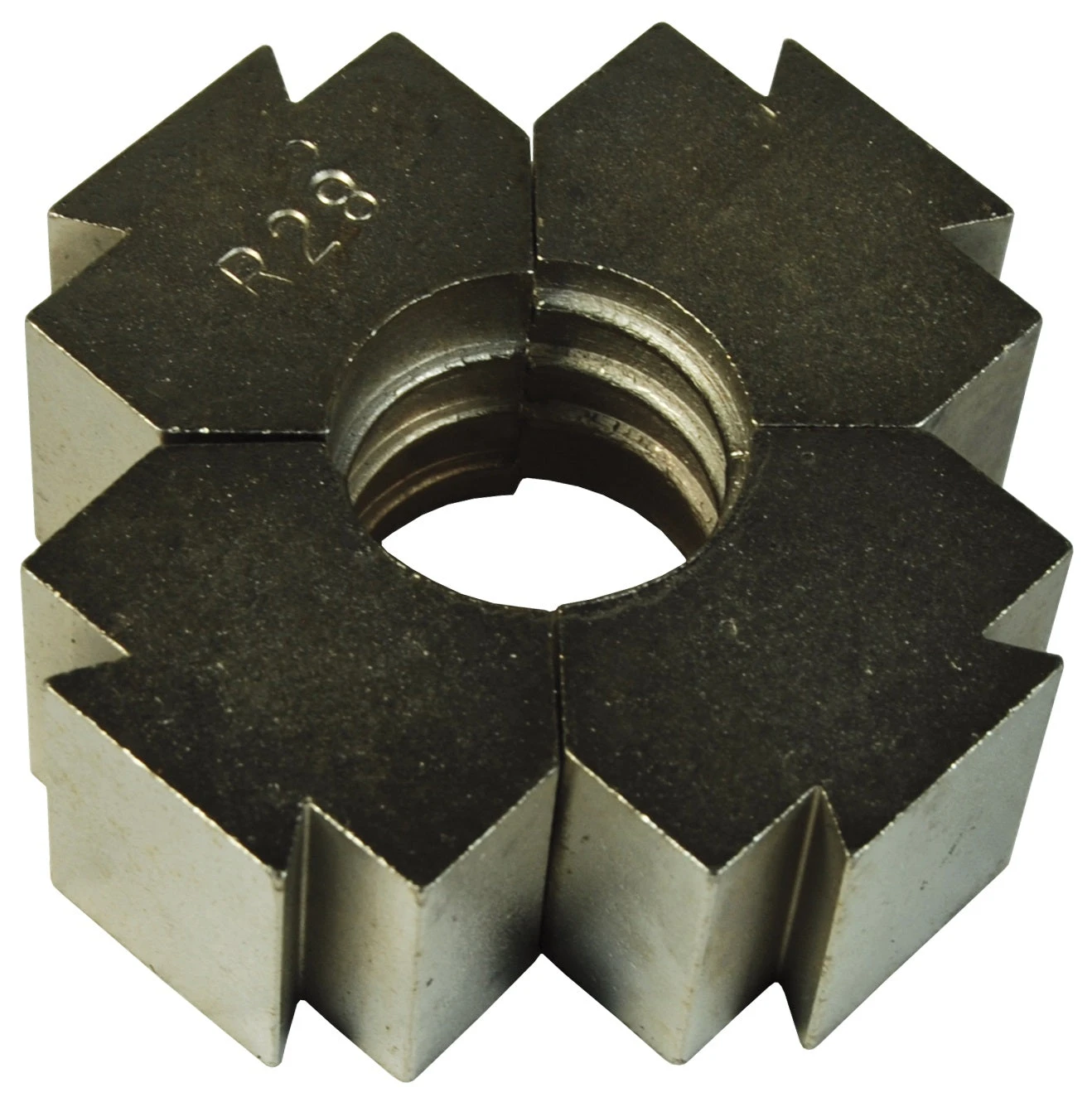

R28 By Dixon Valve | Ribbed Die | For Use On BF800 (.800" ID) Brass Ferrule

R28 By Dixon Valve | Ribbed Die | For Use On BF800 (.800″ ID) Brass Ferrule

Original price was: $210.31.Current price is: $99.99.

SKU: AG9ZZ 1479630815268 Categories: , Tags: , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • For use with 5111A
    and 1765A ferrule machines.
  • Dies for ferrule machines are available in standard sets for all ferrules as tabulated (4 segments to a set).
Part Number Used On Ferrule ID Stnd Ind Part # Bore/Crimp Diameter Weight
(Lbs)
R11 BFMW1225 1.225″ 875-K 1.175″ 0.3150
R13 BFW1175 1.175″ 7088A 1.125″ 0.3350
R15 BFMW1150 1.150″ 7104A 1.100″ 0.3730
R16 BFMW1100 1.100″ 5027A 1.050″ 0.3750
R18 BFMW1050 1.050″ 3605 1.000″ 0.3650
R19 BFW1025 1.025″ 7114A 0.975″ 0.3800
R21 BFW975 .975″ 5028A 0.925″ 0.3950
R23 BFW925 .925″ 7242A 0.875″ 0.4100
R24 BFW900 .900″ 5029A 0.850″ 0.4150
R25 BFW875 .875″ 7244A 0.825″ 0.4250
R26 BF850 .850″ Z 0.800″ 0.4300
R27 BF825 .825″ – 0.775″ 0.4350
R28 BF800 .800″ 7333 0.750″ 0.4300
R29 BFM781,
BFM781B 		.781″ 7332, 7332B 0.725″ 0.4450
R30 BFM750,
BFM750B 		.750″ 7331, 7331B, DD 0.700″ 0.4500
R31 BFM718,
BFM718B 		.718″ 7330, 7330B, EE, CC 0.675″ 0.4550
R33 BFM687 .687″ 7329 0.625″ 0.4650
R34 BFM656 .656″ 7328, HH, GG 0.600″ 0.4750
R35 BFM625 .625″ 7327, II 0.575″ 0.4700
R36 BFM593 .593″ 7326, JJ 0.550″ 0.4800
R37 BFM562 .562″ 7325, 3588, KK 0.525″ 0.4800
R38 BFL548 .548″ 626 0.500″ 0.4850
R39 BFL525,
BFM531,
BFM525 		.525″, .531 7323, 7324, 625 0.500″ 0.5000
R4 BFMW1400 1.400″ D 1.350″ 0.2690
R40 BFL500,
BFM500 		.500″ 7322, 624 0.475″ 0.3650
R41 BFM478,
BFL450 		.478″, .450″ 4750, 769 0.450″ 0.5000
R43 BFL410 .410″ 620 0.375″ 0.4950
R44 BFL400,
BFL380 		.400″, .380″ 622, 619 0.350″ 0.5000
R9 BFMW1275 1.275″ D 1.350″ 0.3050
