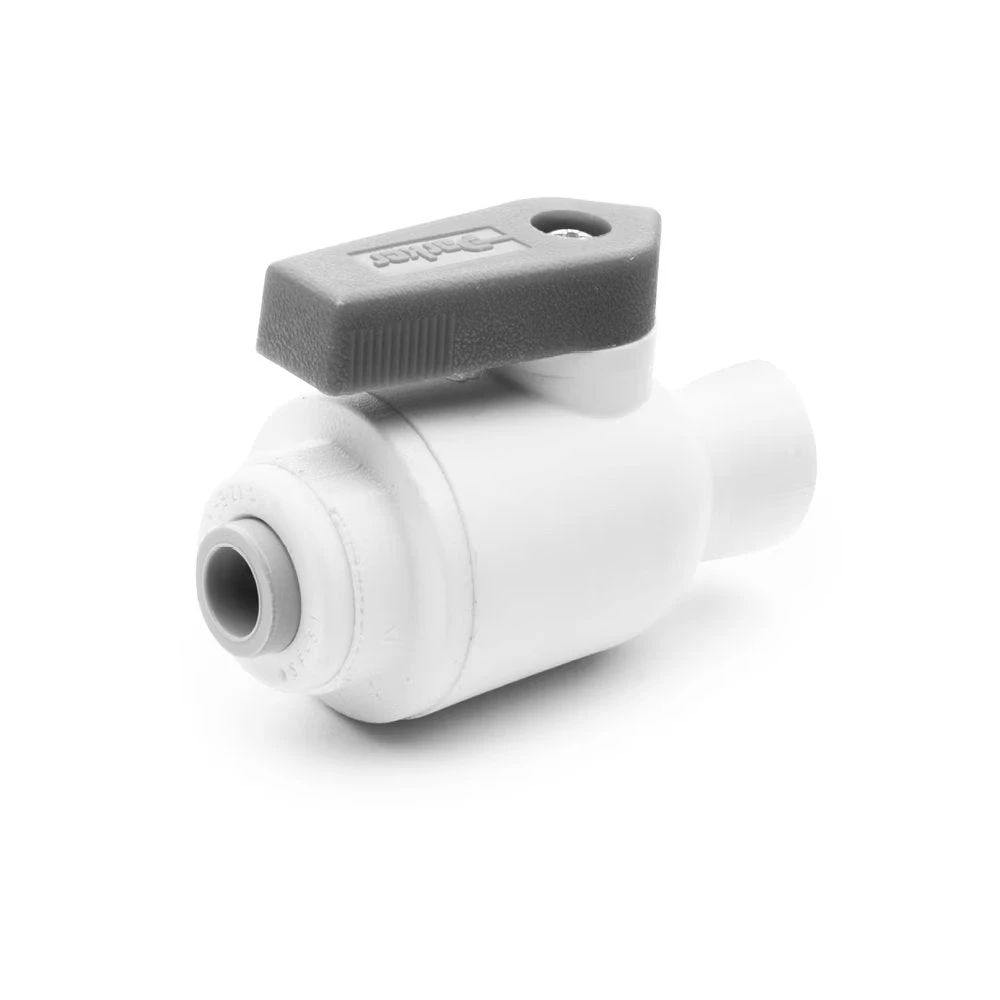

PP4VFC2-MG By Parker | TrueSeal™ Ball Valve | 1/4″ Push-to-Connect X 1/8″ Female NPTF Thread | 2.04″ Length | Straight | White | Polypropylene

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 14646518317426 Categories: Adapters & More, Valves Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Product Features:	Wide chemical acceptance range Bi-directional flow maximizes productivity Full flow reduces pressure drop across valve EPDM Seals – LIQUIfit, TrueSeal, and Par-barb Nitrile Seals – Fast and Tite Push-in and barbed connections Meets FDA and NSF/ANSI 51 requirements for food contact LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:	Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting. Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:	LFPP – LIQUIfit PP – TrueSeal PBPP – Par-Barb FTPPB – Fast and Tite
Temperature Range:	35° to +200° F (+1.7° to +93.3° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	Nom. Tube OD	NPTF Thread Size	A	B	C	D	ØE Thru Hole Min
PP4VFC2-MG	1/4″	1/8″	2.04″	1.21″	1.4″	.5″	.19″
PP4VFC4-MG	1/4″	1/4″	2.27″	1.21″	1.4″	.5″	.19″
PP4VFC6-MG	1/4″	3/8″	2.40″	1.21″	1.4″	.5″	.19″
PP6VFC2-MG	3/8″	1/8″	2.15″	1.32″	1.4″	.5″	.25″
PP6VFC4-MG	3/8″	1/4″	2.38″	1.32″	1.4″	.5″	.25″
PP6VFC6-MG	3/8″	3/8″	2.51″	1.32″	1.4″	.5″	.25″
