Sale!

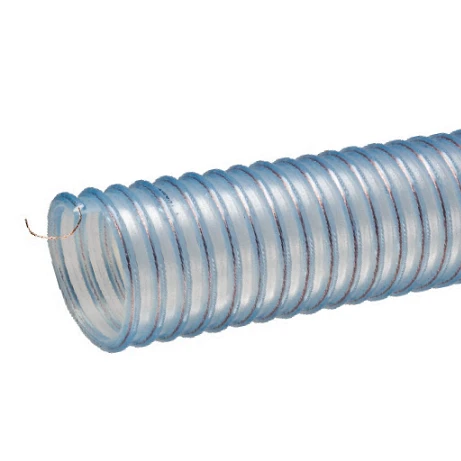

PF400X100 Tigerflex By Kuriyama | PF Series | Plas-T-Flo Heavy Duty Material Handling Hose With Grounding Wire | 4″ ID | Polyurethane | 100ft Length
Original price was: $356.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Bulk truck & railcar unloading, Material handling – heavy duty abrasive, Milling machine scrap recovery, Plastic processing equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Polyurethane |
| Reinforcement: | Rigid PVC Gelix and Grounding Wire. | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
| |||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| PF300X100 | 3″ | 76.2mm | 3.39″ | 86.0mm | 35 PSI | 15 PSI | 28 in. Hg | 25 in. Hg | 10″ | 100ft | 1.50 lbs |
| PF400X100 | 4″ | 101.6mm | 4.84″ | 123.0mm | 30 PSI | 15 PSI | 28 in. Hg | 25 in. Hg | 12″ | 100ft | 1.96 lbs |
| PF400X50 | 4″ | 101.6mm | 4.84″ | 123.0mm | 30 PSI | 15 PSI | 28 in. Hg | 25 in. Hg | 12″ | 50ft | 1.96 lbs |
| PF500X100 | 5″ | 127.0mm | 5.87″ | 149.0mm | 30 PSI | 15 PSI | 25 in. Hg | 22 in. Hg | 13″ | 100ft | 2.50 lbs |
| PF500X50 | 5″ | 127.0mm | 5.87″ | 149.0mm | 30 PSI | 15 PSI | 25 in. Hg | 22 in. Hg | 13″ | 50ft | 2.50 lbs |
| PF600X100 | 6″ | 152.4mm | 6.91″ | 175.5mm | 30 PSI | 15 PSI | 25 in. Hg | 22 in. Hg | 16″ | 100ft | 3.18 lbs |
| PF600X50 | 6″ | 152.4mm | 6.91″ | 175.5mm | 30 PSI | 15 PSI | 25 in. Hg | 22 in. Hg | 16″ | 50ft | 3.18 lbs |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground,
through the fitting or by other means.
