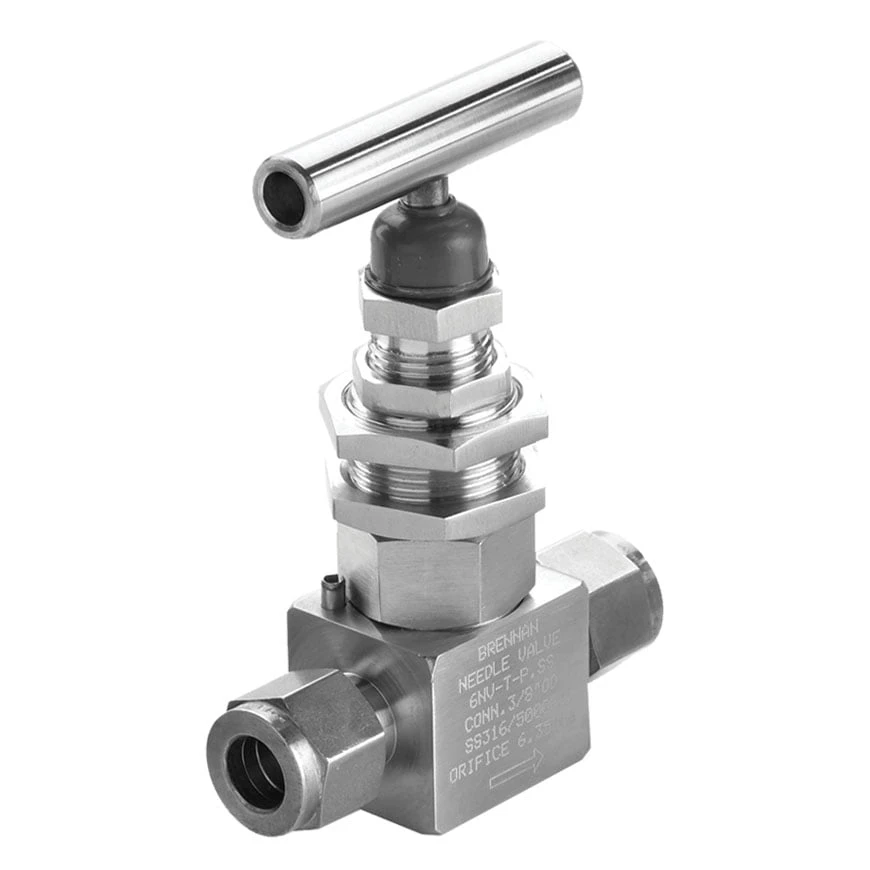

NVN-2033-SS By Brennan Inc. | Needle Valve | -04 Female Pipe X -04 Female Pipe | Integral Bonnet | Vee Stem | Stainless Steel
Original price was: $102.24.$71.57Current price is: $71.57.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Part Number | Material | Type | O.A.L. (A) | Width (B) | Panel Thickness (C) | Panel Hole Diameter | Open Height C.L | Replaces Swagelok Pt # | Replaces Parker Pt # |
|---|---|---|---|---|---|---|---|---|---|
| Integral Bonnet Style | |||||||||
| NVN-2001-B | Brass | Integral Bonnet Regular Stem | 2.08″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | B-ORS2 | 2A-V4LR-B |
| NVN-2003-B | Brass | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 2.91″ | B-1RF2 | 2F-V4LR-B |
| NVN-2004-B | Brass | Integral Bonnet Vee Stem | – | – | – | – | – | B-ORM2 | 2M-V2LR-B |
| NVN-2007-B | Brass | Integral Bonnet Regular Stem | 2.28″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | B-1RS4 | 4A-V4LR-B |
| NVN-2008-B | Brass | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 3.30″ | B-1RF4 | 4F-V6LR-B |
| NVN-2009-B | Brass | Integral Bonnet Vee Stem | 1.96″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | B-1RM4 | 4M-V4LR-B |
| NVN-2010-B | Brass | Integral Bonnet Vee Stem | 2.12″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | B-1RM4-S4 | 4M4A-V4LR-B |
| NVN-2013-B | Brass | Integral Bonnet Regular Stem | 3.07″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | B-1RS6 | 6A-V6LR-B |
| NVN-2018-B | Brass | Integral Bonnet Regular Stem | 3.46″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | B-1RS8 | 8A-V6LR-B |
| NVN-2031-B | Brass | Integral Bonnet Vee Stem | 1.96″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | B-IVM4 | 4M-V4LN-B |
| NVN-2032-B | Brass | Integral Bonnet Regular Stem | 2.28″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | B-IVS4 | 4A-V4LN-B |
| NVN-2033-B | Brass | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 3.30″ | B-1VF4 | 4F-V6LN-SS |
| NVN-2035-B | Brass | Integral Bonnet Regular Stem | 3.07″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | B-IVS6 | 6A-V4LN-SS |
| NVN-2037-B | Brass | Integral Bonnet Vee Stem | 2.12″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | B-1VM6 | 8A-V6LN-B |
| NVN-2038-B | Brass | Integral Bonnet Regular Stem | 3.46″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | B-1VS8 | 8A-V6LR-B |
| NVN-2039-B | Brass | Integral Bonnet Regular Stem | 3.14″ | 1.41″ | 0.19″ | 0.885″ | 3.3″ | B-18VS8 | 8A-V8LN-B |
| NVN-2040-B | Brass | Integral Bonnet Vee Stem | 2.51″ | 1.41″ | 0.19″ | 0.885″ | 3.3″ | B-18VF8 | 8F-V8LN-B |
| NVN-2204-B | Brass | Screwed Bonnet Needle Valve | 2.66″ | 0.98″ | 0.19″ | 0.885″ | 3.34″ | B-4JB | 4A-NP6LR-B |
| Â | |||||||||
| NVN-2001-SS | Stainless Steel | Integral Bonnet Regular Stem | 2.08″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | SS-ORS2 | 2A-V4LR-SS |
| NVN-2002-SS | Stainless Steel | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 2.91″ | SS-ORF2 | 2F-V2LR-SS |
| NVN-2003-SS | Stainless Steel | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 2.91″ | SS-1RF2 | 2F-V4LR-SS |
| NVN-2007-SS | Stainless Steel | Integral Bonnet Regular Stem | 2.28″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | SS-1RS4 | 4A-V4LR-SS |
| NVN-2008-SS | Stainless Steel | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 3.30″ | SS-1RF4 | 4F-V6LR-SS |
| NVN-2009-SS | Stainless Steel | Integral Bonnet Vee Stem | 1.96″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | SS-1RM4 | 4M-V4LR-SS |
| NVN-2010-SS | Stainless Steel | Integral Bonnet Vee Stem | 2.12″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | SS-1RM4-S4 | 4M-4A-V4LR-SS |
| NVN-2013-SS | Stainless Steel | Integral Bonnet Regular Stem | 3.07″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | SS-1RS6 | 6A-V4LR-SS |
| NVN-2018-SS | Stainless Steel | Integral Bonnet Regular Stem | 3.46″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | SS-1RS8 | 8A-V6LR-SS |
| NVN-2031-SS | Stainless Steel | Integral Bonnet Vee Stem | 1.96″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | SS-1VM4 | 4M-V4LN-SS |
| NVN-2032-SS | Stainless Steel | Integral Bonnet Vee Stem | 2.28″ | 0.78″ | 0.19″ | 0.649″ | 2.55″ | SS-1VS4 | 4F-V6LN-B |
| NVN-2032-SF-SS (Single Ferrule) | Stainless Steel | Integral Bonnet Vee Stem | – | – | – | – | – | – | – |
| NVN-2033-SS | Stainless Steel | Integral Bonnet Vee Stem | 1.77″ | 0.78″ | 0.19″ | 0.649″ | 3.30″ | SS-1VF4 | 6A-V4LN-B |
| NVN-2035-SS | Stainless Steel | Integral Bonnet Regular Stem | 3.07″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | SS-1VS6 | 6M-V6LN-SS |
| NVN-2035-SF-SS (Single Ferrule) | Stainless Steel | Integral Bonnet Vee Stem | – | – | – | – | – | – | – |
| NVN-2037-SS | Stainless Steel | Integral Bonnet Vee Stem | 2.12″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | SS-1VM6 | 8A-V6LN-SS |
| NVN-2038-SS | Stainless Steel | Integral Bonnet Regular Stem | 3.46″ | 1.22″ | 0.19″ | 0.767″ | 3.34″ | SS-1VS8 | 8A-V6LR-SS |
| NVN-2039-SS | Stainless Steel | Integral Bonnet Regular Stem | 3.14″ | 1.41″ | 0.19″ | 0.885″ | 3.3″ | SS-18VS8 | 8A-V8LN-SS |
| NVN-2040-SS | Stainless Steel | Integral Bonnet Vee Stem | 2.51″ | 1.41″ | 0.19″ | 0.885″ | 3.3″ | SS-18VF8 | 8F-V8LN-SS |
| Screwed Bonnet Style | |||||||||
| NVN-2204-SS | Stainless Steel | Screwed Bonnet Style | 2.66″ | 0.98″ | 0.19″ | 0.885″ | 3.34″ | SS-4JB | 4A-NP6LR-SS |
| NVN-2207-B | Brass | Screwed Bonnet Style | 2.57″ | 0.98″ | 0.19″ | 0.885″ | 3.34″ | B-6JB | 6A-NP6LR-B |
| NVN-2207-SS | Stainless Steel | Screwed Bonnet Style | 2.57″ | 0.98″ | 0.19″ | 0.885″ | 3.34″ | SS-6JB | 6A-NP6LR-SS |
