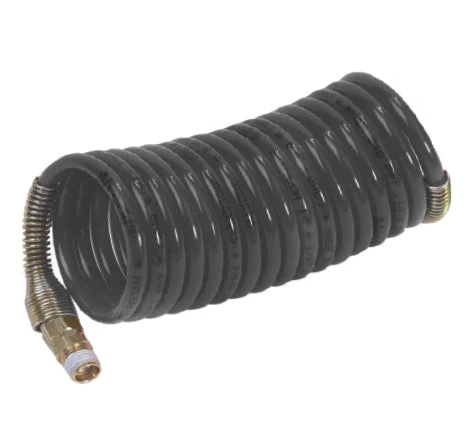

N4AS1-25 By Nycoil | Self-Storing Air Hose Assembly | 1/4″ Hose ID | 1/4″ MPT Swivel | Black | 240 PSI | Nylon | 25ft

Original price was: $28.82.Current price is: $20.17.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Nycoil was the inventor of the Nylon Self-Storing Air Hose in 1958. It was developed as a means to transport air from overhead piping to pneumatic tools at assembly stations while keeping the work area neat and safe. Unlike straight hose that lays on the floor or workbench and can easily become tangled, Self-Storing Hose retracts to keep the area clutter free. The user can also be more productive because the hose retracts away from the work area, giving the user more clear space and freedom of movement. Nylon is resistant to a wide variety of chemicals making it a good choice for most industrial environments.
Features:
Extremely light weight – considerably lighter than traditional rubber hoses Economizes on space – retracts to a fraction of its working length Highly flexible – doesn’t impede tool maneuverability Brass field attachable fittings – no ferrules or inserts that become deformed and have to be replaced whenever fittings are installed Excellent memory – coils continue to retract after repeated stretching Resistant to many chemicals & petroleum based products – suitable for numerous applications Less than 1% moisture absorption Recommended working length: up to 85% of material length Temperature Range: -40 deg. F to +200 deg. F (-40 deg. C to +93 deg. C)

Part Number	Hose ID	Hose OD	Nom. Coil ID	Nom. Coil OD	Working Pressure		Length	Fittings	Working Length	Nom. Compact Length	Hose Color
	inch	inch	inch	inch	PSI	Bar	feet		feet	inch
T4AS2-12	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	12 ft	1/4″ MPT, Swivel	9 ft	6″	Red
T4AS1-12	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	12 ft	1/4″ MPT, Swivel	9 ft	6″	Black
T4AS2-25	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	25 ft	1/4″ MPT, Swivel	18.75 ft	12″	Red
T4AS1-25	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	25 ft	1/4″ MPT, Swivel	18.75 ft	12″	Black
T4AS2-50	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	50 ft	1/4″ MPT, Swivel	37.5 ft	22″	Red
T4AS1-50	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	50 ft	1/4″ MPT, Swivel	37.5 ft	22″	Black
T4XX2-100	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	100 ft	None (bulk)	NA	45″	Red
T4XX1-100	1/4″	0.310″	2-1/2″	3″	240 PSI	16.5 Bar	100 ft	None (bulk)	NA	45″	Black
N4AS2-12	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	12 ft	1/4″ MPT, Swivel	9 ft	4-1/2″	Red
N4AS5-12	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	12 ft	1/4″ MPT, Swivel	9 ft	4-1/2″	Yellow
N4AS3-12	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	12 ft	1/4″ MPT, Swivel	9 ft	4-1/2″	Blue
N4AS1-12	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	12 ft	1/4″ MPT, Swivel	9 ft	4-1/2″	Black
N4AS2-25	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	25 ft	1/4″ MPT, Swivel	18.75 ft	9″	Red
N4AS5-25	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	25 ft	1/4″ MPT, Swivel	18.75 ft	9″	Yellow
N4AS3-25	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	25 ft	1/4″ MPT, Swivel	18.75 ft	9″	Blue
N4AS1-25	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	25 ft	1/4″ MPT, Swivel	18.75 ft	9″	Black
N4AS2-50	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	50 ft	1/4″ MPT, Swivel	37.5 ft	18″	Red
N4AS5-50	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	50 ft	1/4″ MPT, Swivel	37.5 ft	18″	Yellow
N4AS3-50	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	50 ft	1/4″ MPT, Swivel	37.5 ft	18″	Blue
N4AS1-50	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	50 ft	1/4″ MPT, Swivel	37.5 ft	18″	Black
N4XX2-100	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	100 ft	None (bulk)	NA	38″	Red
N4XX5-100	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	100 ft	None (bulk)	NA	38″	Yellow
N4XX3-100	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	100 ft	None (bulk)	NA	38″	Blue
N4XX1-100	1/4″	0.310″	3″	3-1/2″	240 PSI	16.5 Bar	100 ft	None (bulk)	NA	38″	Black
