Sale!

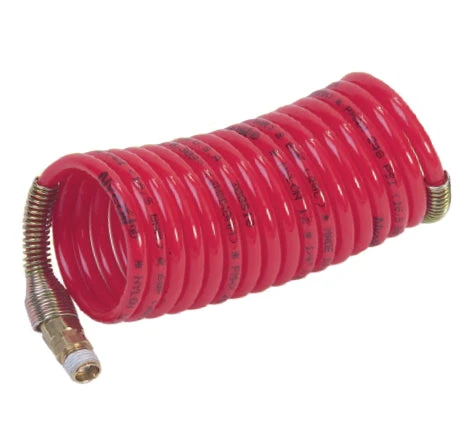

N1DS2-25 By Nycoil | Self-Storing Air Hose Assembly | 1″ Hose ID | 3/4″ MPT Swivel | Red | 190 PSI | Nylon | 25ft

Original price was: $316.87.Current price is: $97.99.

Overview:
Nycoil was the inventor of the Nylon Self-Storing Air Hose in 1958. It was developed as a means to transport air from overhead piping to pneumatic tools at assembly stations while keeping the work area neat and safe. Unlike straight hose that lays on the floor or workbench and can easily become tangled, Self-Storing Hose retracts to keep the area clutter free. The user can also be more productive because the hose retracts away from the work area, giving the user more clear space and freedom of movement. Nylon is resistant to a wide variety of chemicals making it a good choice for most industrial environments.
Features:
Extremely light weight – considerably lighter than traditional rubber hoses Economizes on space – retracts to a fraction of its working length Highly flexible – doesn’t impede tool maneuverability Brass field attachable fittings – no ferrules or inserts that become deformed and have to be replaced whenever fittings are installed Excellent memory – coils continue to retract after repeated stretching Resistant to many chemicals & petroleum based products – suitable for numerous applications Less than 1% moisture absorption Recommended working length: up to 85% of material length Temperature Range: -40 deg. F to +200 deg. F (-40 deg. C to +93 deg. C)

Part Number	Hose ID	Hose OD	Nom. Coil ID	Nom. Coil OD	Working Pressure		Length	Fittings	Working Length	Nom. Compact Length	Hose Color
	inch	inch	inch	inch	PSI	Bar	feet		feet	inch
N1DS2-25*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	25 ft	3/4″ MPT, Swivel	12.5 ft	9″	Red
N1DS1-25*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	25 ft	3/4″ MPT, Swivel	12.5 ft	9″	Black
N1DS2-50*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	50 ft	3/4″ MPT, Swivel	25 ft	18″	Red
N1DS1-50*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	50 ft	3/4″ MPT, Swivel	25 ft	18″	Black

N1ER2-25*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	25 ft	1″ MPT, Rigid Barb	12.5 ft	9″	Red
N1ER2-50*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	50 ft	1″ MPT, Rigid Barb	25 ft	18″	Red
N1ER1-50*	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	50 ft	1″ MPT, Rigid Barb	25 ft	18″	Black
N1XX2-80	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	80 ft	None (bulk)	NA	27″	Red
N1XX1-80	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	80 ft	None (bulk)	NA	27″	Black
N1XX2-100	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	100 ft	None (bulk)	NA	32″	Red
N1XX1-100	1″	1.197″	14″	16-1/2″	190 PSI	13.0 Bar	100 ft	None (bulk)	NA	32″	Black
